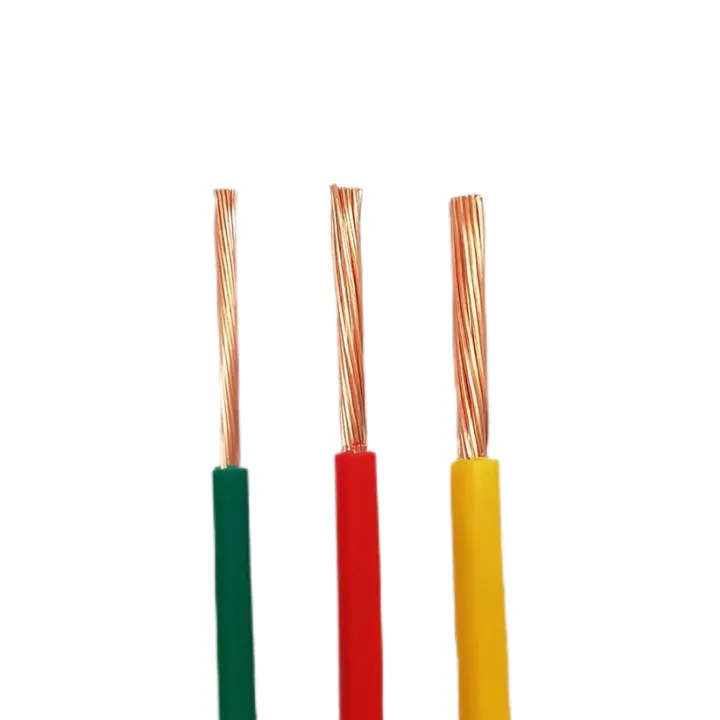

H05VV-F 3 Core 1.5mm 2.5mm 4mm 6mm Copper Pvc Insulated Flexible Cable
|
Attribute |
Detail |
|
Product name |
3 core flexible cable |
|
Model Number |
h03vv-f or h05vv-f |
|
Brand Name |
JYXL |
|
Type |
insulated, 3 core flexible cable |
|
Application |
power device, lighting, electrical applicant, instrument |
|
Rated voltage |
300/300, 300/500V |
|
Conductor Material |
Copper |
|
Conductor Type |
flexible copper wire |
|
Conductor |
Copper or copper clad aluminum |
|
Cores |
2, 3, 4, 5 cores |
|
cross section |
0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.5mm |
|
Insulation Material |
PVC |
|
Color |
blue, green, blank, grey |
|
Standard |
IEC60227 |
|
Certificate |
CE |
|
Price |
factory direct sell |
|
Sample |
free sample |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
Soft packing in coil, 100 meters/roll, or as your request for 3 core flexible cable |
|
Port of dispatch |
Tianjin port, Qingdao port, Shanghai port |
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
500000 rolls per Month |
ProductDescription H05VV-F 3 core 1.5mm 2.5mm 4mm copper pvc insulated flexible cable
PVC insulated wire&cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including450/750V.
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
1) Conductor:flexible copper wire, Class 6
2) Insulation: PVC
3)Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
Service performance
1) Rated voltage: 300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
|
PVC INSULATED FLEXIBLE ROUND MULTI-CORE CABLE |
|||
|
|
SIZE/MM2 |
STRUCTURE/MM |
OVERALLDIAMETER/MM |
|
2CORE |
0.75 |
24X0.2 |
7.6 |
|
1 |
32X0.2 |
7.8 |
|
|
1.5 |
30X0.25 |
8.8 |
|
|
2.5 |
49X0.25 |
11 |
|
|
3CORE |
0.75 |
24X0.2 |
8 |
|
1 |
32X0.2 |
8.4 |
|
|
1.5 |
30X0.25 |
9.6 |
|
|
2.5 |
49X0.25 |
11.5 |
|
|
4 |
56X0.3 |
12.5 |
|
|
6 |
84X0.3 |
13.5 |
|
|
10 |
126X0.32 |
16.5 |
|
|
16 |
126X0.4 |
20 |
|
|
25 |
196X0.4 |
30.25 |
|
|
4CORE |
0.75 |
24X0.2 |
8.6 |
|
1 |
32X0.2 |
9.2 |
|
|
1.5 |
30X0.25 |
11 |
|
|
2.5 |
49X0.25 |
12.5 |
|
|
4 |
56X0.3 |
13 |
|
|
6 |
84X0.3 |
15.8 |
|
|
10 |
126X0.32 |
17.6 |
|
|
16 |
126X0.4 |
21.5 |
|
|
25 |
196X0.4 |
33.5 |
|
|
5CORE |
0.75 |
24X0.2 |
9.4 |
|
1 |
32X0.2 |
11 |
|
|
1.5 |
30X0.25 |
12 |
|
|
2.5 |
49X0.25 |
13.5 |
|
|
4 |
56X0.3 |
14.5 |
|
|
6 |
84X0.3 |
16.4 |
|
|
10 |
126X0.32 |
20.1 |
|
|
16 |
126X0.4 |
24.5 |
|
|
25 |
196X0.4 |
37 |
|
