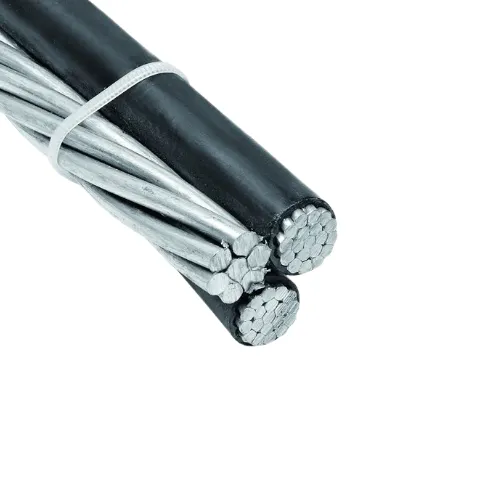

Aluminum Duplex ABC Cable with ACSR Neutral

Duplex Service Drop Aluminum Conductor ABC ACSR Neutral Messenger Aerial Twisted Cable

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Insulation Material	XLPE
Application	Overhead
Conductor Material	Aluminum
Jacket	No
Other attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	ABC cable
Type	Low Voltage
Product Name	Aerial twisted cable
Size	4/0 (also available in 6awg, 4awg, 2awg, 1/0awg, 2/0awg, 4/0awg)
Standard	ANSI/ICEA S-76-474
Conductor	Concentric stranded or compressed 1350-H19 aluminum conductor
Insulation	Crosslinked polyethylene insulation
Core	Duplex, Triplex, Quadruple
Voltage rating	600 Volts
Code name	Scallop, Prawn, Shrimp, Leda, Lepas, Minex, Hippa
Certificate	UL, CE, KEMA, PSB, TUV
Temperature Rating	90°C
Packaging and delivery
Packaging Details	Standard export drum for Duplex Service Drop Aluminum Conductor ACSR Neutral Messenger aerial twisted cable
Port of dispatch	Tianjin port
Selling Units	Single item
Single package size	10X10X10 cm
Single gross weight	0.020 KG
Supply capacity
Supply Ability	5000 kilometers per Month aerial twisted cable

Product Description

Service Drop Cable(ABC CABLE) are mainly used for electric power transmission, Duplex, Triplex, Quadruplex.
Service Drop Cable(ABC CABLE) are mainly used for electric power transmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

TYPE ONE Service Drop wire ABC CABLE
ABC CABLE -aerial bundle cable :are mainly used for electric power transmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
Applications
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Construction

Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Setter	6	solid	45	6	'6/1	1.19	75	73.2	70	70
Shepherd	6	7/w	45	6	'6/2	1.19	78.3	74.6	70	70
Eskimo	4	solid	45	4	'6/3	1.86	114	111.6	90	90
Terrier	4	7/w	45	4	'6/4	1.86	119	113.6	90	90
Chow	2	7/w	45	2	'6/5	2.85	182	174.7	120	120
Bull	1/0	19/w	60	1/0	'6/6	4.38	289	280.3	160	160
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua	6	solid	45	6	7/w	1,110	67.6	65.8	70	70
Vizsla	6	7/w	45	6	7/w	1,110	70.9	67.2	70	70
Harrier	4	solid	45	4	7/w	1,760	102	99.9	90	90
Whippet	4	7/w	45	4	7/w	1,760	107	101.9	90	90
Schnauzer	2	7/w	45	2	7/w	2,800	163	156.2	120	120
Heeler	1/0	19/w	60	1/0	7/w	4,460	259
