Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.
Home / Product / Aerial Bundle Cable / Factory Price MV Aluminum ABC Cable (11KV/33KV, 10mm²)
The Factory Price Medium Voltage 11KV 33kv Aluminum ABC Aerial Bundle Cable 10mm2
|
Industry-specific attributes |
|
|
Insulation Material |
XLPE/PE/PVC |
|
Application |
Overhead |
|
Conductor Material |
Aluminum |
|
Jacket |
NO |
|
Other attributes |
|
|
Place of Origin |
Hebei, China |
|
Brand Name |
RNEDA |
|
Model Number |
ABC cable |
|
Type |
Medium Voltage |
|
Name |
ABC cable |
|
Rated strength |
1000V 10KV 15KV 25KV 35KV |
|
Certificate |
ISO9001, ISO14001, OASHA8001 |
|
Neutral conductor |
AAAC, ACSR |
|
Standard |
NFC 33-209 |
|
Packaging and delivery |
|
|
Packaging Details |
Wooden drum or iron drum, or as your request |
|
Port of dispatch |
Tian jin port, Qing dao port, Shanghai port |
|
Selling Units |
Single item |
|
Supply capacity |
|
|
Supply Ability |
500 kilometers per Month aac conductor |
The factory price Medium Voltage 11KV 33kv Aluminum ABC Aerial Bundle Cable 10mm2
Brief description:
ABC Power Cable has an Aluminum Alloy conductor with a XLPE sheath.
ABC Power Cable usually has 3 cores plus neutral, the neutral can either be bare or insulated and the cable can have a street light of 25mm².
ABC Power Cable is available in 600/1000V, 635/11kV or 12,7/22kV. We stock 1 core, 2 core and 3 core Aluminum Alloy cable Aerial Bunched Kabel .
1.Stranded Aluminum/Aluminum Alloy conductor
2.PE or XLPE insulation
3.ACSR, AAAC,Galvanised steel wire Messenger wire

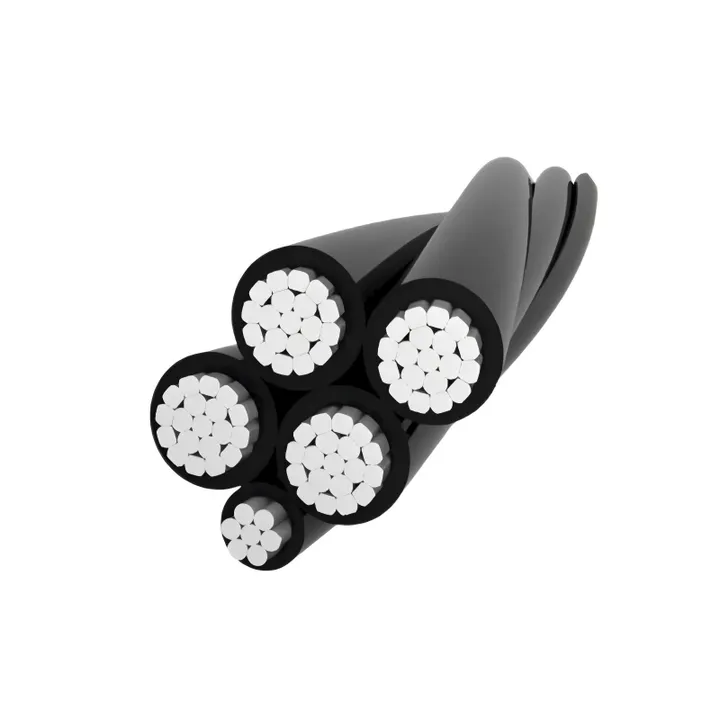

3 power cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV
