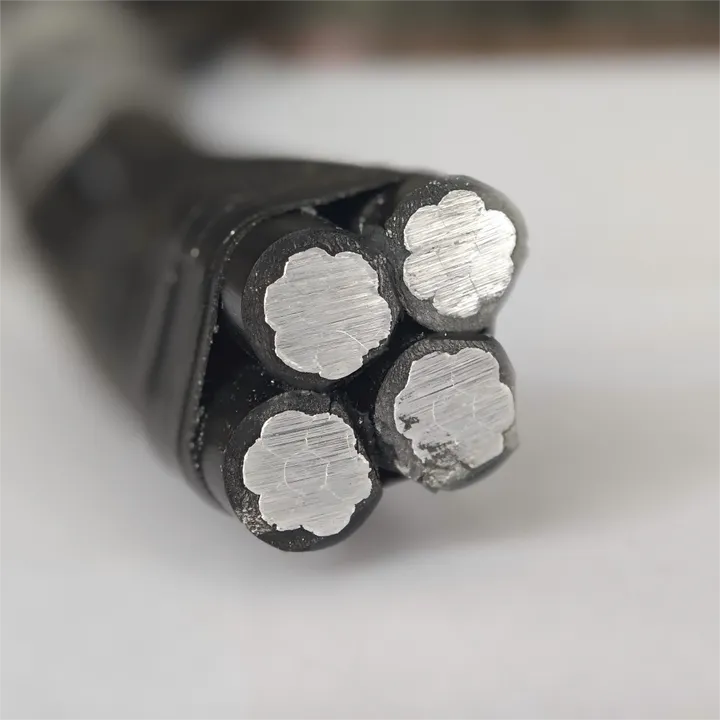

600/1000V XLPE Aluminum ABC Cable (3x70+1x50mm²)

600/1000V Aluminum ABC Cable XLPE Cable Overhead ABC Cable 3*70+1*50mm2

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Insulation Material	PVC, XLPE, and PE
Application	Electric distribution system
Conductor Material	Aluminum
Other attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	Aerial bundle cable, ABC cable
Type	Low voltage and medium voltage
Size	16 25 35 50MM2
Cross section	10-240MM2
Standard	BS, ASTM, DIN, GB IEC60227
Certification	ISO9001, ISO14001, OASHA8001
Rated voltage	0.6/1KV
Cores	DUPLEX, TRIPLEX, quadruplex
Price	Direct factory price
Sample	Free sample available
TYPE	Aerial bundle cable
COLOR	BLACK Anti UV
Character	LOSH, Anti UV
Packaging and delivery
Packaging Details	Standard export drum or as your request for Stranded aluminum conductor ABC Cable 3X70+50
Port of dispatch	Tian jin port, Qing dao port, Shang hai port
Selling Units	Single item
Supply capacity
Supply Ability	500 kilometers per Month

Product Description

The product is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting.

Construction

Conductor:Aluminum, Alloy Aluminum,

Insulation:XLPE, PE

Size:

2 x 16 mm2

3×25 mm2+54.6 mm2+16 mm2

2 x 25 mm2

3×35 mm2+54.6 mm2+16 mm2

2 x 35 mm2

3×50 mm2+54.6 mm2+16 mm2

2 x 50mm2

3×70 mm2+54.6 mm2+16 mm2

4 x 16 mm2

3×70 mm2+70 mm2+16 mm2

4 x 25 mm2

3×95 mm2+70 mm2+16 mm2

4 x 35 mm2

3×120 mm2+70 mm2+16 mm2

Standard

IEC60502, IEC61089; NF C33-209; GB 12527-9; ASTM B231, ASTM B232, BS215; DIN48201, DIN48204.

We can also manufacture ABC cable according to customer's special requirements.

Application

The cable as a newtype aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting. To be used at cotages of 600V phasetophase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for cross-liked polyethylene(XLPE) insulated conductors.

Specification

Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core;Phase conductor is insulated by XLPE or HDPE or PVC.

It meets or exceeds the following specifications:
1). Aluminum Wire, 1350-H19 for Electrical Purposes.
2). Aluminum Conductors, Concentric-Lay-Stranded.
3). Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4). Concentric-Lay-Stranded 6201-T81 Conductors.
5). Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Type of XLPE(PE) insulated ABC cable (service drop)

XLPE(PE) insulate cable (service drop)covers mainly three types:

Duplex Service Drop

Triplex Service Drop

Quadplex Service Drop

Construction
The basic construction is as follows:
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.

The purpose of messenger wire is:
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

ABC cable with AAAC messenger core

SPEC mm2	conductor structure					Approx.
	Phase	Neutral		insulation	insulation	Overall
	(Compacted AL)	Aluminium	Steel	material	Thickness	Diameter
	(No./mm)	(No./mm)	(No./mm)		(mm)	(mm)
1x16+1x16	7/1.72	6/1.72	1/1.72	XLPE	1.2	12.5
1x25+1x25	7/2.15	6/2.15	1/2.15		1.2	14.9
1x35+1x35	7/2.54	6/2.54	1/2.54		1.4	17.5
1x50+1x50	7/2.92	6/2.92	1/2.92		1.4	20.1
1x70+1x70	19/2.15	12/2.15	17/2.15		1.4	23.6
1x95+1x95	19/2.54	12/5.24	17/5.24		1.6	27.6
2x16+1x16	7/1.72	6/1.72	1/1.72	(HDPE)	1.2	14.2
2x25+1x25	7/2.15	6/2.15	1/2.15		1.2	16.7
2x35+1x35	7/2.54	6/2.54	1/2.54		1.4	19.7
2x50+1x50	7/2.92	6/2.92	1/2.92		1.4	22.5
2x70+1x70	19/2.15	12/2.15	7/2.15		1.4	26.1
2x95+1x95	19/2.54	12/5.24	7/5.24		1.6	30.5
3x16+1x16	7/1.72	6/1.72	1/1.72		1.2	16.3
3x25+1x25	7/2.15	6/2.15	1/2.15		1.2	19.1
3x35+1x35	7/2.54	6/2.54	1/2.54		1.4	22.5
3x50+1x50	7/2.92	6/2.92	1/2.92		1.4	25.7
3x70+1x70	19/2.15	12/2.15	7/2.15		1.4	29.7
2x95+1x95	19/2.54	12/2.54	7/2.54		1.6	34.6
