Yes – 12 AWG is exactly the same as 12 gauge. They are two ways of saying the identical thing in the electrical industry. The term “AWG” stands for American Wire Gauge, and when people say “12 gauge wire” or “12 AWG wire,” they are referring to the same standardized wire size. This guide explains the AWG system in depth, with special focus on the popular 12 AWG size.

1. Direct Answer: Yes – 12 AWG Is Exactly the Same as 12 Gauge

In North America (and most countries that follow U.S. electrical standards), 12 AWG and 12 gaugeare completely interchangeable terms. There is no difference in size, diameter, cross-sectional area, or current-carrying capacity. The confusion usually arises because:

• “AWG” is the formal name of the measurement system
• “Gauge” is the everyday shorthand used by electricians, contractors, and DIYers

2. What Does AWG Mean? Full Explanation

AWG stands for American Wire Gauge – a standardized logarithmic stepped system developed in the 19th century to define the diameter of solid, round, non-ferrous electrical conductors (mainly copper and aluminum). The most important rule is:

The lower the AWG number, the thicker (and higher-capacity) the wire.

3. How the American Wire Gauge System Works

AWG sizes follow a geometric progression: every time the gauge number decreases by 3, the cross-sectional area approximately doubles. Every 6 steps, it quadruples. This means:

• 9 AWG is roughly twice the area of 12 AWG
• 6 AWG is roughly four times the area of 12 AWG
• 3 AWG is roughly eight times the area of 12 AWG

4. Detailed Specifications of 12 AWG Wire

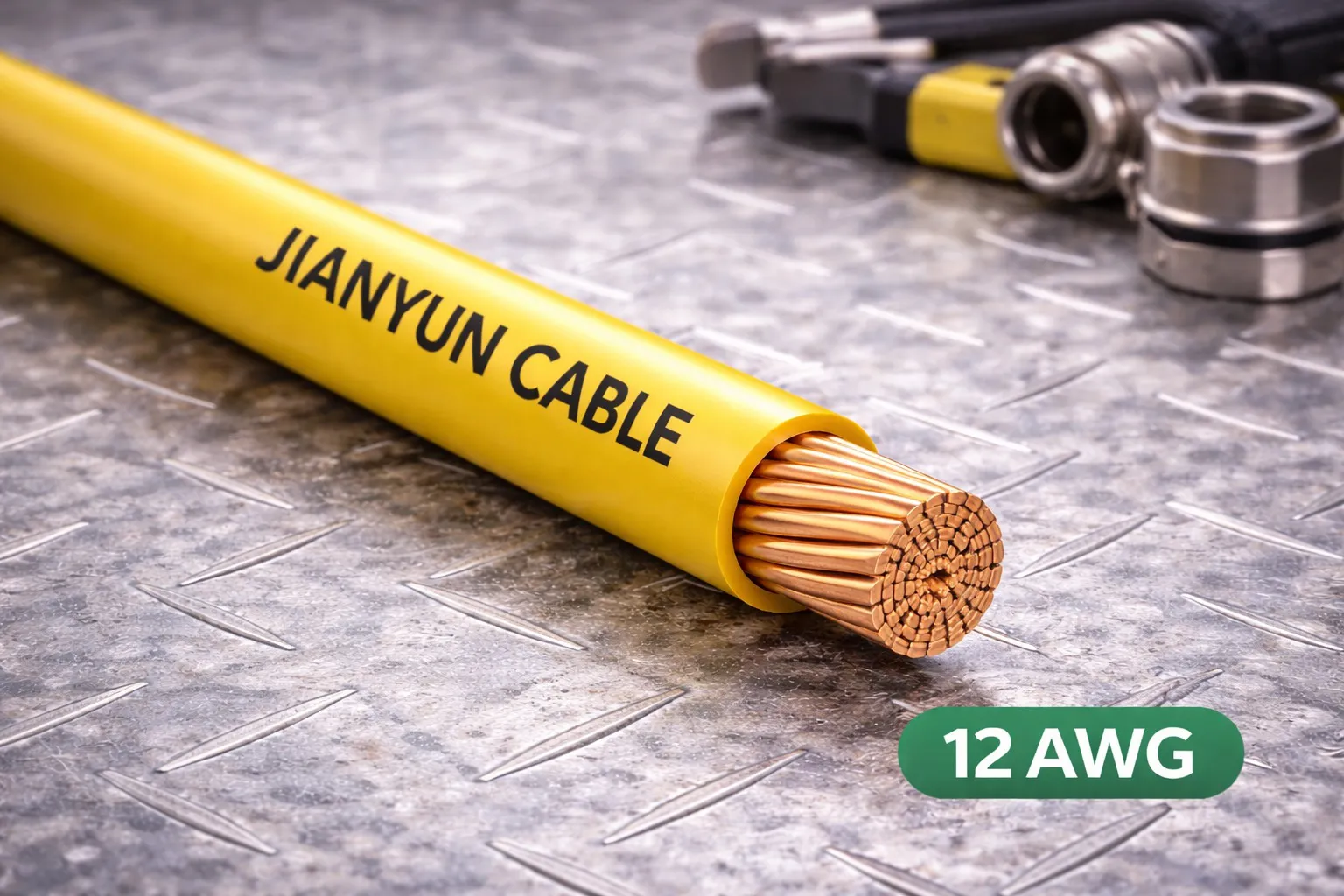

Here are the precise technical specs for 12 AWG (also called 12 gauge) wire:

• Diameter (bare conductor): 0.0808 inches (2.053 mm)
• Cross-sectional area: 6,530 circular mils (3.31 mm²)
• Typical ampacity (copper, 90°C insulation, NEC): 25–30 A (depending on conditions)
• Common insulation types: THHN/THWN, XHHW, NM-B (Romex), UF-B
• Weight (copper): ≈ 19.5 lbs per 1000 ft

5. AWG Wire Size Chart – Focus on 12 AWG Context

6. Ampacity, Load Capacity & Derating for 12 AWG

According to the National Electrical Code (NEC 2023/2026 editions), 12 AWG copper wire with 90°C-rated insulation (THHN/THWN-2) has:

• 30 A ampacity in free air or raceway
• Typically limited to 20 A branch circuits (80% continuous load rule)
• Derating applies for ambient temperature >30°C, more than 3 current-carrying conductors in raceway, or continuous loads

7. Relevant Standards & Codes That Define AWG

• ASTM B258 – Standard for AWG dimensions
• NEC Article 310 – Conductors for general wiring (ampacity tables)
• UL 83 – Standard for thermoplastic-insulated wires (THHN, etc.)
• CSA C22.2 – Canadian equivalent recognition

8. Common Applications of 12 AWG Wire

12 AWG (12 gauge) is one of the most widely used sizes in residential and light commercial installations:

• 120V general-purpose branch circuits (outlets, receptacles)
• Kitchen counter circuits (20 A breakers)
• Laundry circuits
• Workshop outlets
• Many 240V appliance circuits when oversized

9. Final Summary

Yes – 12 AWG and 12 gauge are exactly the same size. The terms are fully interchangeable in the electrical industry. 12 AWG wire is a workhorse size: thick enough for 20-amp circuits with good safety margin, yet still reasonably flexible and cost-effective. Understanding the AWG system, especially popular sizes like 12 AWG, helps ensure safe, code-compliant, and efficient electrical work.
