Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / UV Resistant Solar Cable

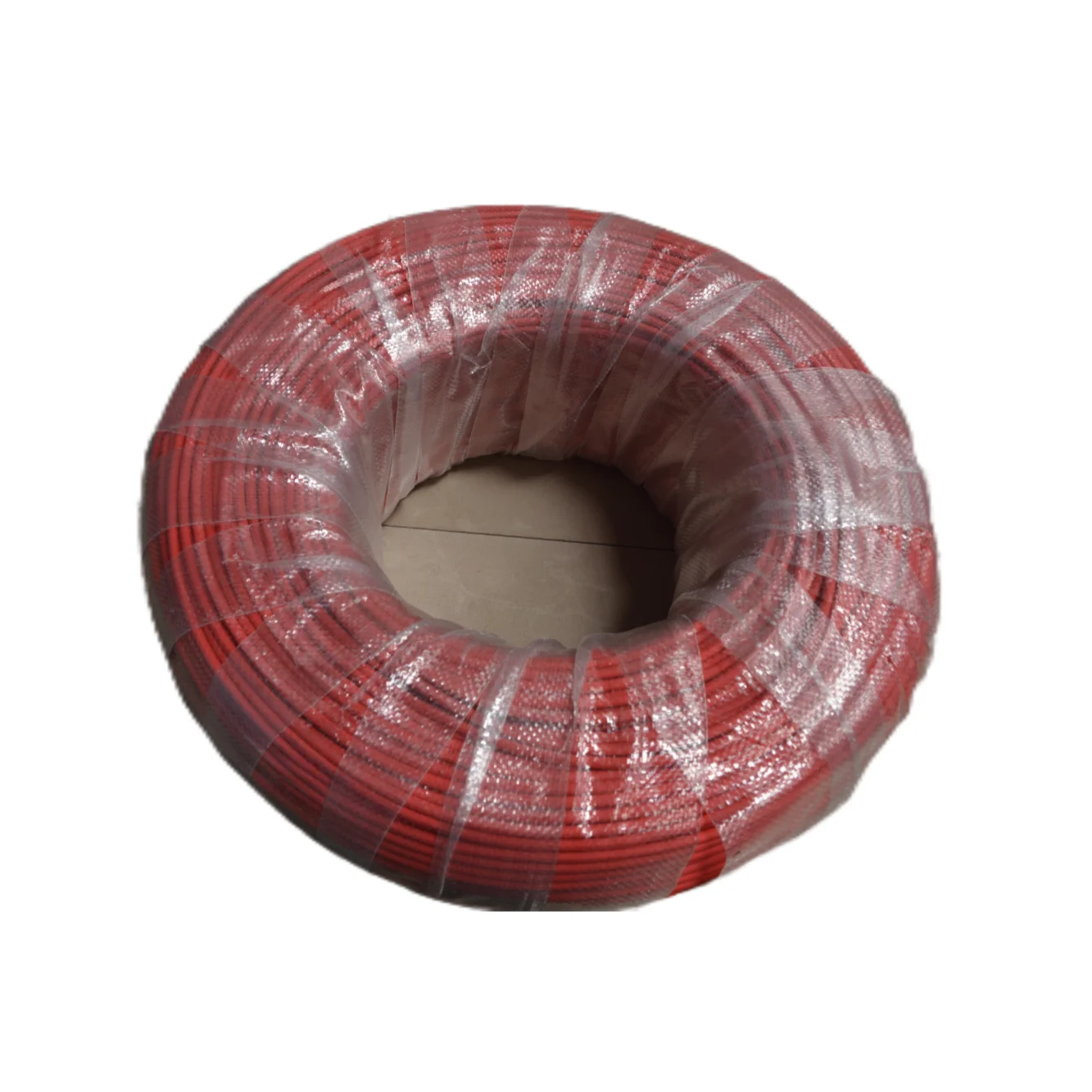

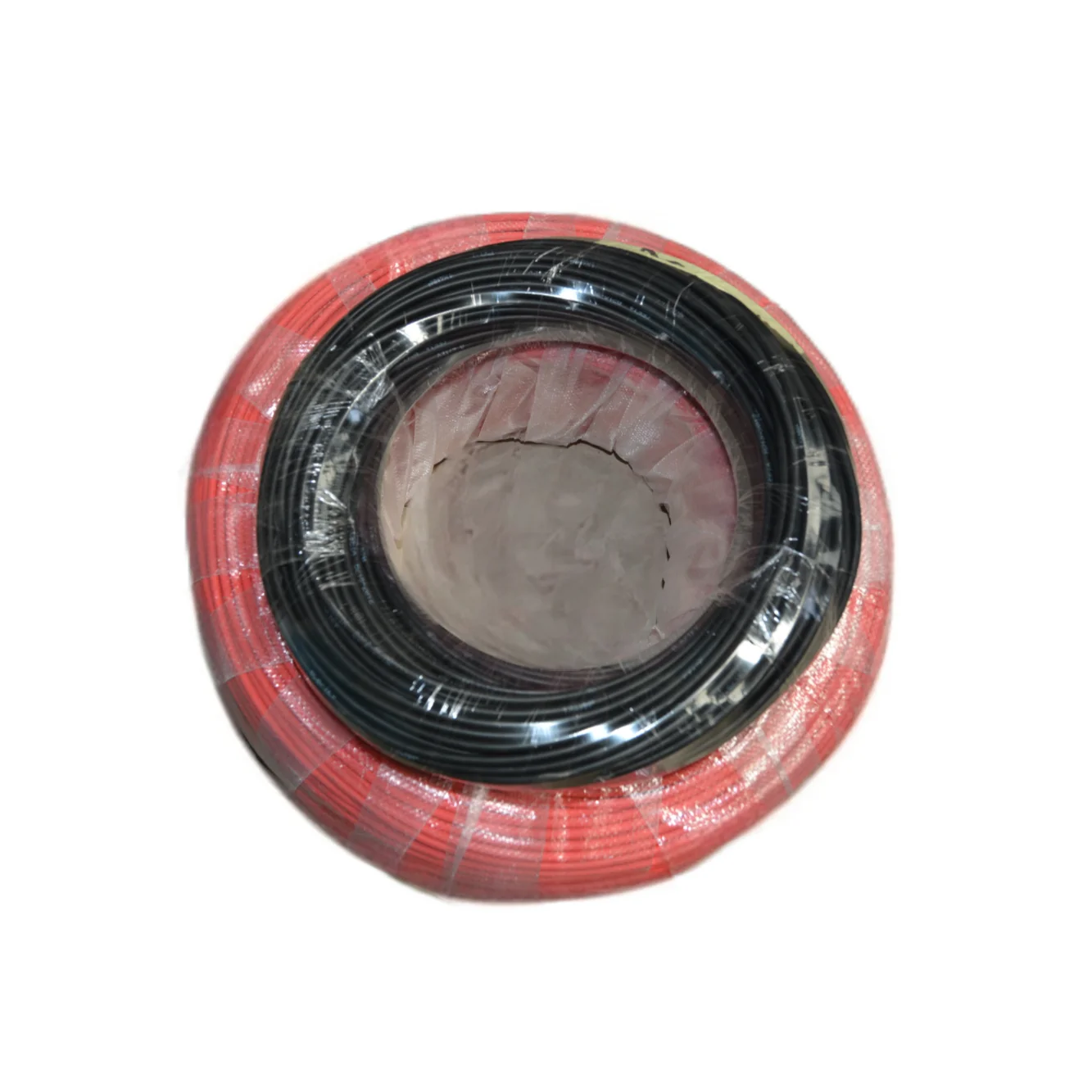

This is a low voltage solar cable, specifically designed for industrial, power distribution, photovoltaic power, construction, and power station applications. It features a tinned copper conductor and XLPO insulation. The jacket material is PVC.
| Attribute | Value |
|---|---|
| Industry-specific attributes | |
| Insulation Material | XLPO |
| Application | Industrial, Power Distribution, photovoltaic power, Construction, Power Station |
| Conductor Material | Copper |
| Jacket | PVC |
| Other attributes | |
| Place of Origin | Henan, China |
| Rated Voltage | 1 kV |
| Brand Name | JianYun |
| Model Number | PV1-F |
| Type | LOW VOLTAGE |
| Size | 1*6 |
| Product name | Solar Cable |
| Color | Black Red |
| Insulation | XLPO Insulation |
| Voltage | 0.6/1KV AC 1800V DC |
| Core | Single Core |
| Certificate | ISO9001/CCC |
| Conductor | Tinned Copper |
| Material | Tinned Copper+XLPO |
| MOQ | 5000m |
| Hot Sale Size | 4mm/6mm/10mm |
| Packaging and delivery | |
| Selling Units: | Single item |
| Single package size: | 1X1X1 cm |
| Single gross weight: | 1.000 kg |
This is a low voltage solar cable, specifically designed for industrial, power distribution, photovoltaic power, construction, and power station applications. It features a tinned copper conductor and XLPO insulation. The jacket material is PVC.
Key attributes include its XLPO insulation, tinned copper conductor, and single core construction. It's rated for 0.6/1KV AC and 1800V DC. The cable is available in black and red colors and a size of 1*6. It is certified with ISO9001/CCC and adheres to IEC 60227 standards.
Regarding packaging and delivery, it is sold as single items with a minimal package size of 1x1x1 cm and a gross weight of 1.000 kg. The Minimum Order Quantity (MOQ) is 5000 meters, and hot selling sizes include 4mm, 6mm, and 10mm.
|
Product name
|
PV1-F(photovoltaic cable)
|
|
Voltage
|
DC 1.8KV
|
|
Size
|
6mm²
|
|
color
|
Black，Red
|
|
Shield
|
not include
|
|
Armour
|
not include
|
|
Conductor
|
Tinned Copper
|
|
temperature
|
90°C
|
|
Standard
|
GB/T19666-2019
|
|
certificate
|
CCC/ISO9001
|
