Tinned Copper 6mm PV Solar Cable

JianYun DC1.8kV Photovoltaic Solar Cable is the perfect solution for your industrial-grade PV systems and power plants. Constructed with a tinned copper conductor and XLPO insulation, this single core cable guarantees exceptional conductivity and durability, capable of handling high voltages up to DC 1.8kV and ensuring stable operation at 0.6/1kV AC voltage. The PV1-F model, compliant with GB50797-2012 standards, is available in a popular 6mm² size and a range of colors including black, red, and orange. Proudly manufactured in Henan, China under the JianYun brand, this cable, made with premium materials (Tinned Copper + XLPO) and offering dependable performance, delivers secure and highly efficient power transmission for all your photovoltaic endeavors.

Send Email Get Best Price

Details

Key attributes
Industry-specific attributes
Insulation Material	XLPO
Application	Industrial
Conductor Material	Copper
Jacket	PVC
Other attributes
Place of Origin	Henan, China
Brand Name	JianYun
Model Number	PV1-F
Type	LOW VOLTAGE
Size	1*6mm
Product name	DC1.8kV Solar Cable
Color	Black Red Orange
Insulation	XLPO Insulation
Voltage	0.6/1KV 1800V DC
Core	Single Core
Standard	GB50797-2012
Conductor	Tinned Copper
Material	Tinned Copper+XLPO
MOQ	1000m
Hot Sale Size	4mm/6mm Solar Cable

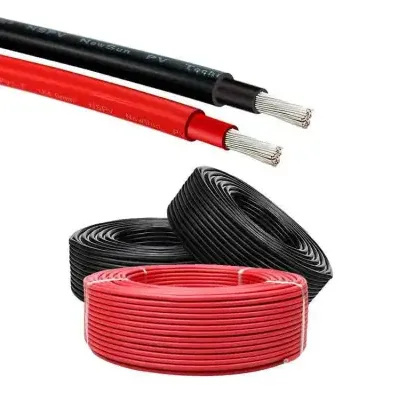

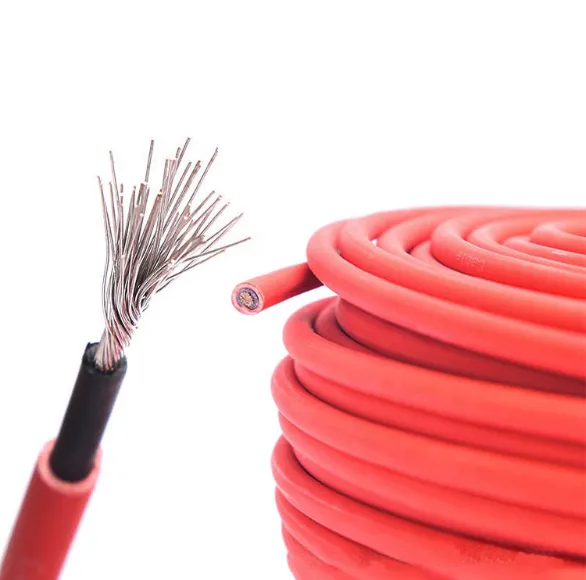

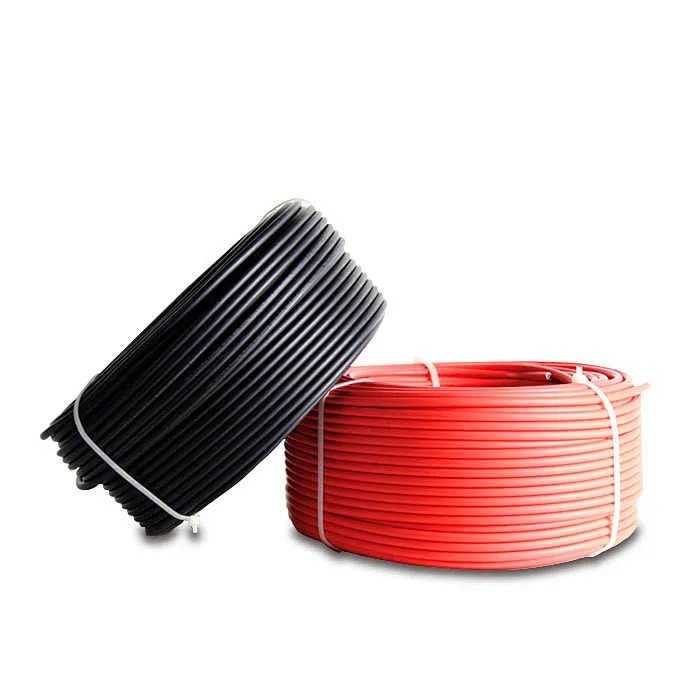

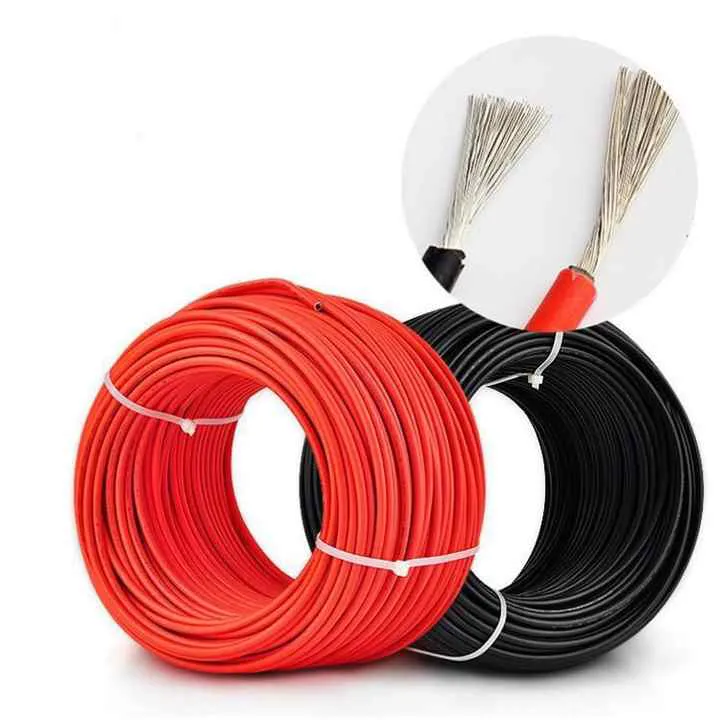

PRODUCT SHOW

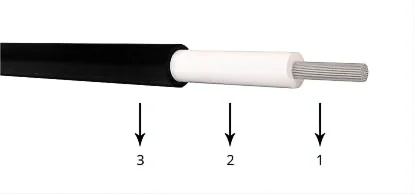

Structure

1、tinned copper wire

2、halogen free insulation

3、halogen free sheath

Product Paramenters

No. Of cores x Construction （mm2）	Conductor Construction（n / mm）	Outer Diameter (mm)	Resistance Max.(Ω/km)	Current Aarring Capacity (A)
1*1.5	30/0.25	4.90	13.30	30
1.2.5	50/0.25	5.45	7.89	41
1*4	56/0.3	6.10	4.75	50
1.6	84/0.3	7.20	3.39	70
1*10	142/0.3	9.00	1.95	98
1*16	228/0.3	10.20	1.24	132
1*25	361/0.3	12.00	0.795	176
1*35	525/0.3	13.8	0.565	218
1*50	720/0.3	14.8	0.393	280
1*70	988/0.3	16.9	0.277	350
1*95	1349/0.3	18.7	0.21	410
1*120	1691/0.3	20.7	0.164	480
