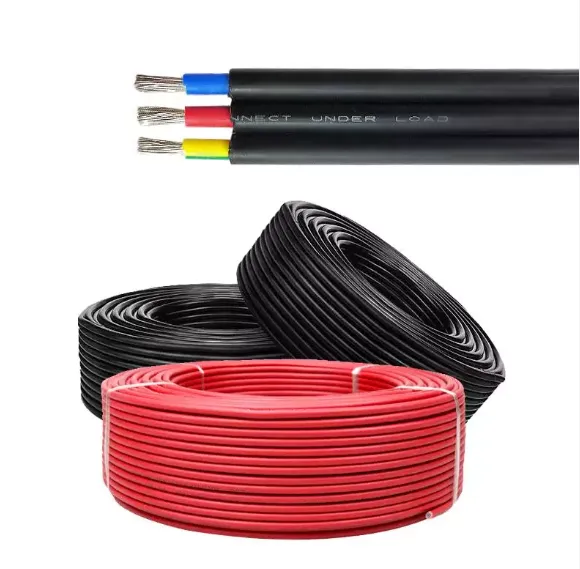

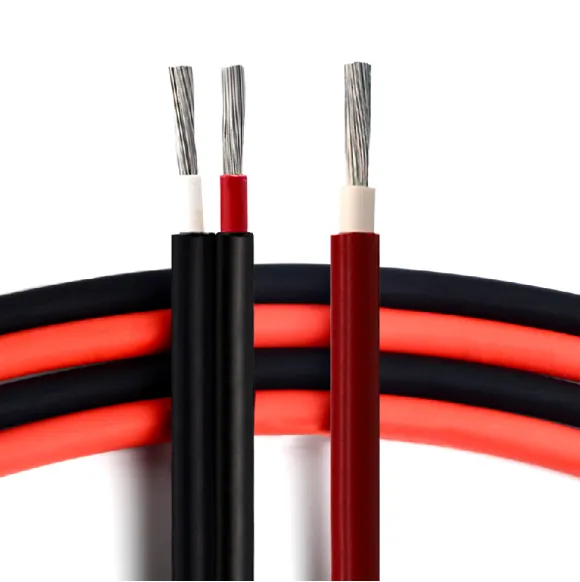

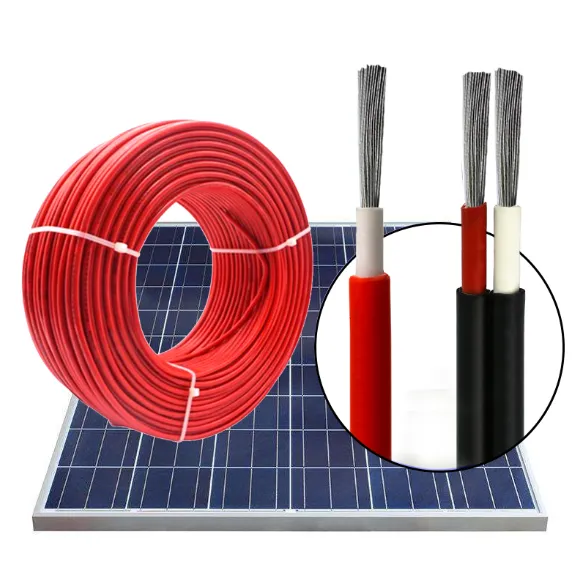

Multi-Stranded Solar PV Wire

RPV RPVU RPV90 RPVU90 PV Wire Solar Photovoltaic Cables XLPE Multi-stranded Wire with Red Jacket

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	RPV RPVU RPV90 RPVU90 PV Wire
Brand Name	JYXL
Model Number	RPVU90
Type	insulated
Application	Underground
Conductor Material	Copper
Conductor	Aluminum, Copper
Conductor Type	Stranded
Core Number	1
Insulation Material	XLPE
Insulation	XLPE
Cross section	14 AWG-1000kcmil
Rated Voltage	2000V
Voltage	2000V
Standard	Canada C.S.A C22.2 NO.271-11
Certificate	Canadian cUL & C.S.A certification
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

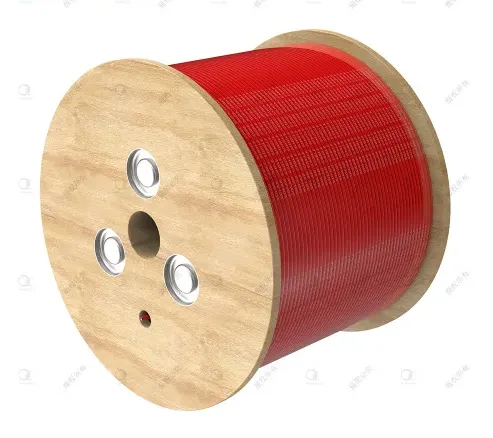

Packaging Details	Standard Exporting Drum or as requesting
Single package size	10X10X5 cm
Single gross weight	0.500 KG

Product Description

RPVU90 cables may be installed indoors or outdoors, in raceways and conduits, both above and
below ground, and may be direct buried. Direct buried installations must comply with CE Code
Rules 12-012 and 4-004. They are 90ºC, 2 kV rated, and suitable for use in a photovoltaic system.
Type RPVU90 cables are for use on the DC and AC side of a photovoltaic system, suitable for
installation in both wet and dry locations, and may be exposed to sunlight.
RPVU90 cables are RoHS Compliant.

Standard
• C.S.A C22.2 No. 38 - Thermoset-Insulated Wires and Cables
• C.S.A C22.2 No. 271-11
• ASTM B3, B8, B787

Cable Construction

Aluminum:
• sizes from #6 AWG to 1000 kcmil, stranded
• compact stranded AA-8000 series aluminum conductor material (ACM) per ASTM B801
Class B or ASTM B836

Copper:
• sizes from #14 AWG to 1000 kcmil, solid or stranded
• bare, stranded annealed per ASTM B8 Class B compressed

Certified for Canada
