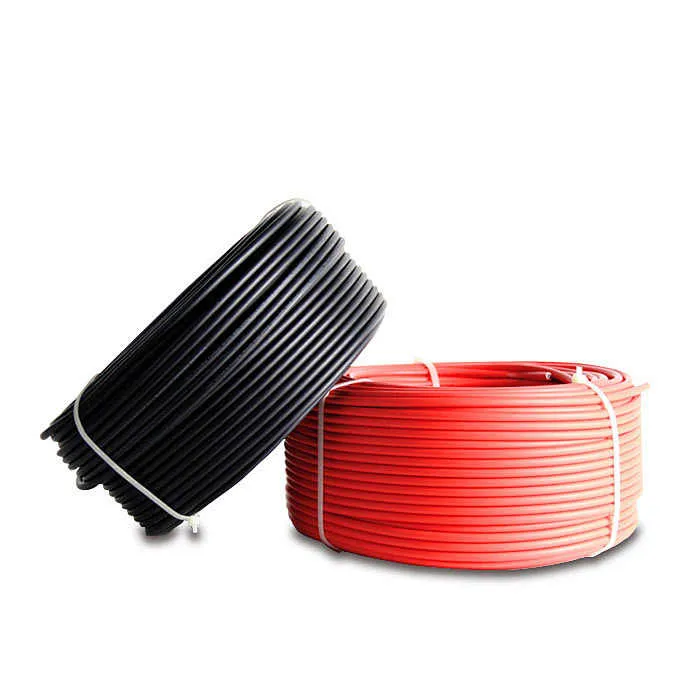

6mm² Halogen-Free Solar Cable

PV Wire Solar Cable 6mm 2 H1z2z2k ZZF Cable Halogen Free Cross-linked Insulation Solar Cable Design TUV Certificate EN Standard

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	solar cable
Brand Name	JYXL
Model Number	H1Z2Z2-K, ZZ-F
Type	LOW VOLTAGE, Low Voltage
Application	Construction, solar program
Conductor Material	Tinned Copper
Conductor	Tinned copper
Insulation Material	XLPO
Insulation	XLPO
Jacket	XLPO
Cross-section	1.5mm2 to 240mm2
Rated Voltage	1500V
Temperature	-40°C~+90°C
Standard	EN50618
Certification	TUV
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

Product descriptions from the supplier

Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment.

Construction
Conductor: Tinned copper, according to VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's requeit
Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V,50Hz,5min
Temperature Rating:
-45ºC ~ +125ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X
Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502

	Conductor Construction	Conductor ø	Outer ø	Resistance Max.	Current Carring Capacity
n×mm²	n/m	mm	mm	Ω/Km	A
1×1.5	30/0.25	1.58	4.9	13.3	30
1×2.5	50/0.25	2.02	5.45	7.98	41
1×4.0	56/0.3	2.30	6.1	4.75	55
1×6.0	84/0.30	3.42	7.2	3.39	70
1×10.0	142/0.30	4.56	9	1.95	98
1×16.0	228/0.30	5.60	10.2	1.24	132
1×25.0	361/0.30	6.95	12	0.795	176
1×35.0	525/0.30	8.74	13.8	0.565	218
1×50.0	720/0.30	9.20	14.8	0.393	280
1×70.0	988/0.30	11.00	16.9	0.277	350
1×95.0	1349/0.30	12.50	18.7	0.21	410
1×120	1691/0.30	14.20	20.7	0.164	480
