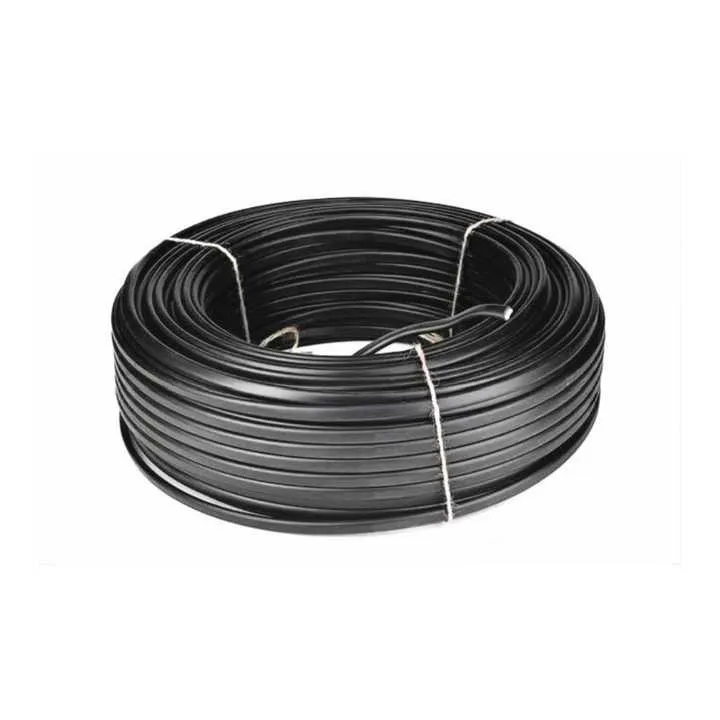

H01Z2Z2-K Solar PV Cable (2.5mm² - 25mm²)

EN50618 H01Z2Z2-K Solar PV Cable 2.5mm2 4mm2 6mm2 10mm2 16mm2 25mm2 for Solar Photovoltaic System

Send Email Get Best Price

Details

Key Product Specifications

Attribute	Detail
Product Name	Solar Cable
Model Number	H1Z2Z2-K
Type	Insulated, Low Voltage
Standard	EN50618
Conductor Material	Tinned copper
Conductor	Tinned copper
Conductor Type	Stranded
Insulation Material	XLPO (Cross-Linked Polyolefin)
Insulation	XLPO
Jacket	XLPO
Application	Photovoltaic (PV) Solar Power
Certification	TUV

Brand, Origin, and Logistics

Attribute	Detail
Brand Name	JYXL
Place of Origin	Henan, China
Selling Units	Single item
Packaging Details	In rolls or in wooden drums or as required
Port of dispatch	Tianjin port, Shanghai port, Qingdao port or others

Product Description

Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station.

Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment

Construction
Conductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's requeit
Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V,50Hz,5min
Temperature Rating:
-45ºC ~ +125ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X
Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502

	Conductor Construction	Conductor ø	Outer ø	Resistance Max.	Current Carring Capacity
n×mm²	n/m	mm	mm	Ω/Km	A
1×1.5	30/0.25	1.58	4.9	13.3	30
1×2.5	50/0.25	2.02	5.45	7.98	41
1×4.0	56/0.3	2.30	6.1	4.75	55
1×6.0	84/0.30	3.42	7.2	3.39	70
1×10.0	142/0.30	4.56	9	1.95	98
1×16.0	228/0.30	5.60	10.2	1.24	132
1×25.0	361/0.30	6.95	12	0.795	176
1×35.0	525/0.30	8.74	13.8	0.565	218
1×50.0	720/0.30	9.20	14.8	0.393	280
1×70.0	988/0.30	11.00	16.9	0.277	350
1×95.0	1349/0.30	12.50	18.7	0.21	410
1×120	1691/0.30	14.20	20.7	0.164	480
