10KV 3-Core Steel Tape Armoured Cable

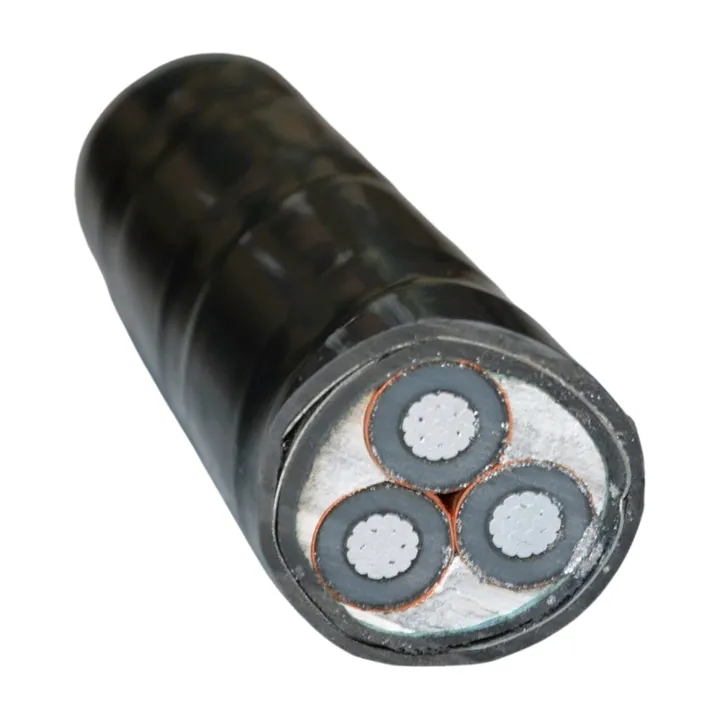

Hot Sale Mongolia 10KV 3 Core 240mm2 Xlpe Insulated Steel Tape Armoured PE Sheathed Power Cable YJLV23

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	YJLV23
Type	10KV YJLV23 cable, Medium Voltage
Brand Name	JYXL
Place of Origin	Henan, China
Application	Underground
Usage	underground
Conductor Material	Aluminum, copper or aluminum
Insulation Material	XLPE
Jacket	PE, pvc
Armour	steel tape armour
Rated voltage	10kv
Cross section	240mm²
Standard	IEC, ASTM, BS, DIN
Certificate	UL TUV BV CE SABS PSB ISO CCC

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	wooden drum or steel wooden, steel-wooden drum for steel tape armoured cable
Port of dispatch	Tianjin, Qingdao or other main port
Packaging examples	https://s.alicdn.com/@sc01/kf/H4924c9ccc0af4930b03708153d60d52a9.png_32x32q50.jpg

Supply Capacity

Attribute	Detail
Supply Ability	1000000 meters per Month steel tape armoured cable

Product Description

Product details:

Name: 10KV,Aluminum/XLPE/STA/PVC

Conductor shape: Compression Circular

Standard: IEC 60502-1997

Or equivalent DIN, BS, AS/NZS, JIS, ASTM, IS, etc.

Package: Steel or wooden Drum

Additional Options: Halogen free, flame retardant, Low smoke, Anti-termite.

Technical details:

Conductor: Conductor cross section of 800mm2 or below is stranded through compacting round core, with better roundness and higher compacting coefficient. Conductor cross section more than 800mm2 is made by segment of Milliken method to minimize skin connecting and alternating current impedance and increase power transmission capacity of cable.

Insulation: XLPE.

Product line: CCV

Metallic screen/sheath: Copper wire and tape

Armor: Steel tape

Outer sheath: PVC, MDPE, HDPE, LDPE,PE

Characteristic of use:

Allowable max. long-time operation temperature of cable conductor: 90°C

Allowable Max. short circuit temperature of cable conductor (max. sustaining period not exceeding 5s): 250 °C

Allowable Min. bending radius when laying cable, generally 20 times of the cable diameter

Main Cross sections for10kV Power Cable:

Single core or three cores: 50mm2, 70mm2, 95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2, 400 mm2
