Low Voltage Power Cable
Low Voltage Power Cable

Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.

Home / Product / Low Voltage Power Cable / JYXL 4-Core Armored Power Cable (Cu/XLPE) 0.6/1KV, 16-150mm² - Mid Asia

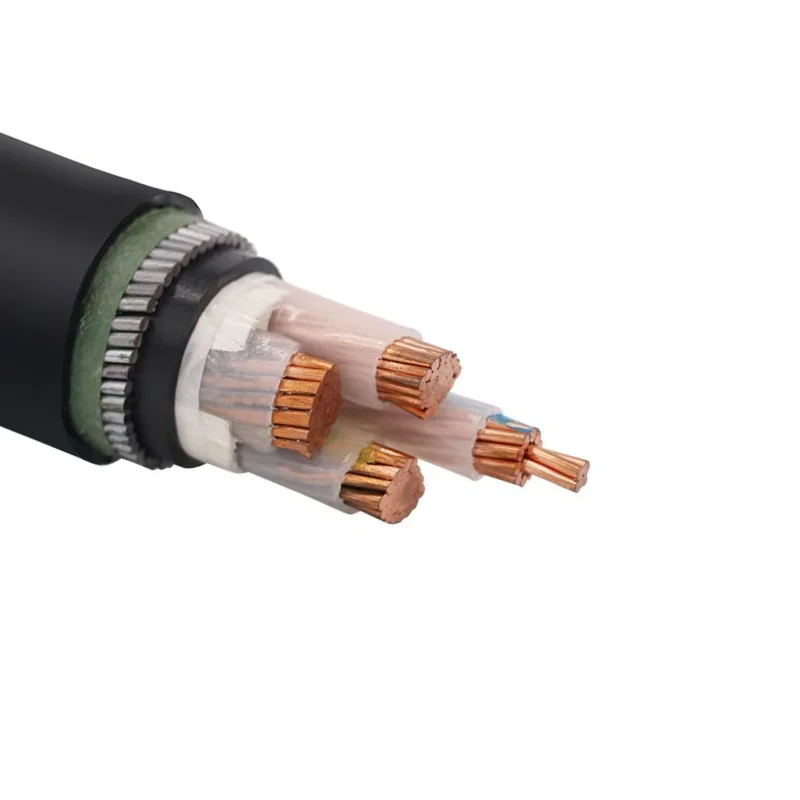

JYXL 4-Core Armored Power Cable (Cu/XLPE) 0.6/1KV, 16-150mm² - Mid Asia

JYXL 4-Core Armored Power Cable (Cu/XLPE) 0.6/1KV, 16-150mm² - Mid Asia

JYXL Brand 0.6/1KV CU XLPE Electrical Armored Cable 4x16mm 4x50mm 4x70mm 4x95mm 4x120mm 4x150mm Power Cable Mid Asia Markets

Send Email Get Best Price
  • Details

Key attributes

Industry-specific attributes

Insulation Material

xlpe

Application

Industrial

Conductor Material

Copper

Jacket

PVC

Other attributes

Place of Origin

Henan, China

Working Temperature

90°C, 70°C

Rated Voltage

0.6/1kV

Rated Current

16A, 30A

Brand Name

JYXL

Model Number

YJV32

Type

LOW VOLTAGE

Size

4 CORE

Product name

0.6/1kV Copper Conductor 4 Core 150mm 185mm 500mm Armoured Cable

Standard

GB12706, IEC60502

Conductor

Pure Copper

Voltage

0.6/1kV

Color

Black

Insulation

XLPE

Certificate

IEC

Core

4 CORE

Application

Power Transmission

Package

Wooden Durm





PRODUCT DETAIL

Low Voltage CU XLPE Electrical Armoured Cable 4x16mm2 4x50mm2 4x70mm2 4x95mm2 4x120mm2 4x150mm2 Power Cable

0.6/1KV CU/XLPE/SWA/PVC Cable Introduction

Construction
Voltage Rating: 600/1000 Volts
Conductor: soft annealed copper
Insulation: Cross Linked Poly Ethylene (XLPE)
Armour: Steel Wire Armoured
Oversheath: PVC

Application:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Product Paramenters

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation thickness

Nominal Inner Covering thickness

Nominal Steel Wire dia.

Nominal Sheath thickness

Overall Diameter (Approx.)

mm^2

mm

mm

mm

mm

mm

mm

4x4

2.3

1

1

1.25

1.8

18.5

4x6

2.8

1

1

1.25

1.8

19.7

4x10

3.6

1

1

1.25

1.8

22.3

4x16

4.5

1

1

1.6

1.8

24.5

4x25

5.6

1.2

1

1.6

1.9

28.2

4x35

6.7

1.2

1

1.6

2

31.1

4x50

8

1.4

1

2

2.1

36.7

4x70

9.4

1.4

1.2

2

2.3

40.4

4x95

11

1.6

1.2

2.5

2.5

46.6

4x120

12.4

1.6

1.4

2.5

2.6

50.6

4x150

13.8

1.8

1.4

2.5

2.7

55.3

4x185

15.3

2

1.4

2.5

2.9

60.6

4x240

17.5

2.2

1.6

2.5

3.1

67.3

4x300

19.5

2.4

1.6

3.15

3.4

74.9

4x400

22.6

2.6

1.8

3.15

3.7

84.4

4x500

25.2

2.8

2

3.15

3.9

92.1
