450/750V Fire Resistant Cable (BS 7629-1)

CU/ SR/LSZH Fire Resistant Silicone Rubber Insulated Power & Control Cable 450/750V BS 7629-1 2 3 4 5 Core

Send Email Get Best Price

Details

Key Attributes

Attribute	Value
Product Name	CU/ SR/LSZH
Model Number	CU/ SR/LSZH
Type	Insulated
Standard	BS 5467
Conductor Material	copper or aluminium
Conductor	solid or strand copper
Conductor Type	Solid or strand
Insulation Material	rubber / SILICONE RUBBER
Sheath	PVC
Armour	Al/ galvanized steel wires
Size	multi core 1-5 core
Packing	roll
Application	Household and industrial installation wire
Certification	TUV, CE, PSB
Brand Name	JYXL
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Value
Port of Dispatch	Tianjin port, Qing dao port, Shanghai port
Selling Units	Single item

Product Description

Application

The 450/750V Silicone R Insulated Fire Resistant control cables are designed, manufactured and tested for general application in power supply and signal wiring, for emergency circuit and fire circuit control.

Construction

Conductors: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Fire resistant silicone rubber compound
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Outer Sheath: Thermoplastic LSZH compound

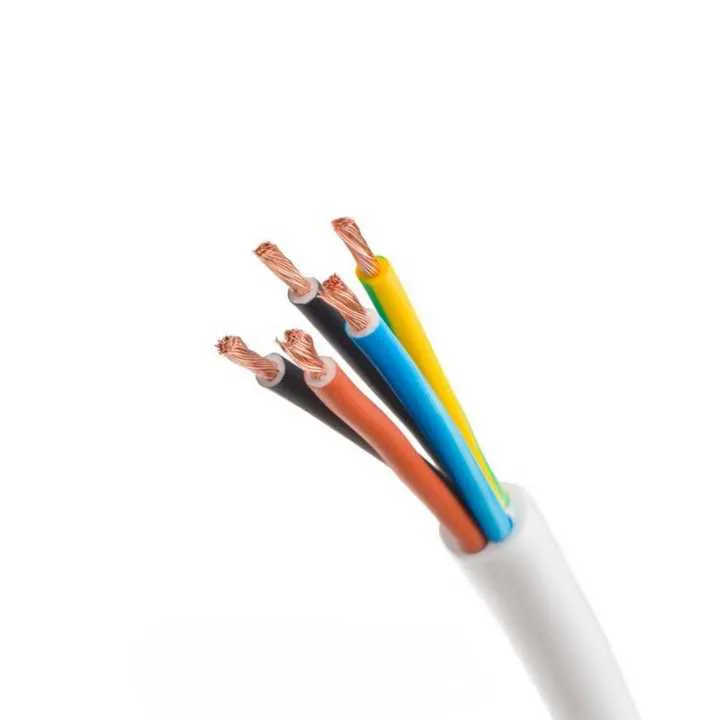

COLOUR CODE

Insulation Colour:
Without earth conductor
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
5 cores blue - brown - black - grey - black
With earth conductor
3 cores yellow/green - blue - brown
4 cores yellow/green - brown - black - grey
5 cores yellow/green - blue - brown - black - grey
Sheath Colour: Colour red (other colours on request)

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical PROPERTIES

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

CABLE CODE	NO. OF CORE X CROSS SECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	MM2	MM	MM	MM	KG/KM
2 core,	2x1.5	0.8	1.0	7,8	96
2 core,	2x2.5	0.9	1.1	9,2	138
2 core,	2x4.0	0.9	1.2	10,5	189
3 core	3x1.5	0.8	1.0	8,3	116
3 core	3x2.5	0.9	1.1	9,8	169
3 core	3x4.0	0.9	1.2	11,6	246
4 core	4x1.5	0.8	1.1	9,3	147
4 core	4x2.5	0.9	1.2	11,3	222
4 core	4x4.0	0.9	1.3	12,5	299
5 core	5x1.5	0.8	1.1	10,5	180
5 core	5x2.5	0.9	1.2	12,3	259
5 core	5x4.0	0.9	1.3	14,0	359
