300/500V H03VV-F Copper PVC Appliance Cable (1.5-4mm²) by JYXL

JYXL Brand 300/500V H03VV-F 1.5mm 2.5mm 4mm Copper Stranded Conductor PVC Insulation Sheath Cablings for Home Appliance

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes

Application	Householding/Equipments
Conductor Material	Copper
Conductor Type	Flexible
Insulation Material	PVC
Rated voltage	300/300V 300/500V
Other attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	H03VV-F
Type	insulated
Product name	H03VV-F Copper Core PVC Insulation Building Wire
Color	Red Blue Yellow Green
Jacket	PVC
Conductor	Copper 99.995%
Standard	GB/T5023-1997, IEC 60227, BS 62004, DIN VED 0281
Usage	Building Wire for Home Appliances
Size	1.5mm 2.5mm 4mm 6mm
Voltage	300/500V
MOQ	100 Meters
Keyword	House Wiring Cables

PRODUCT SHOW

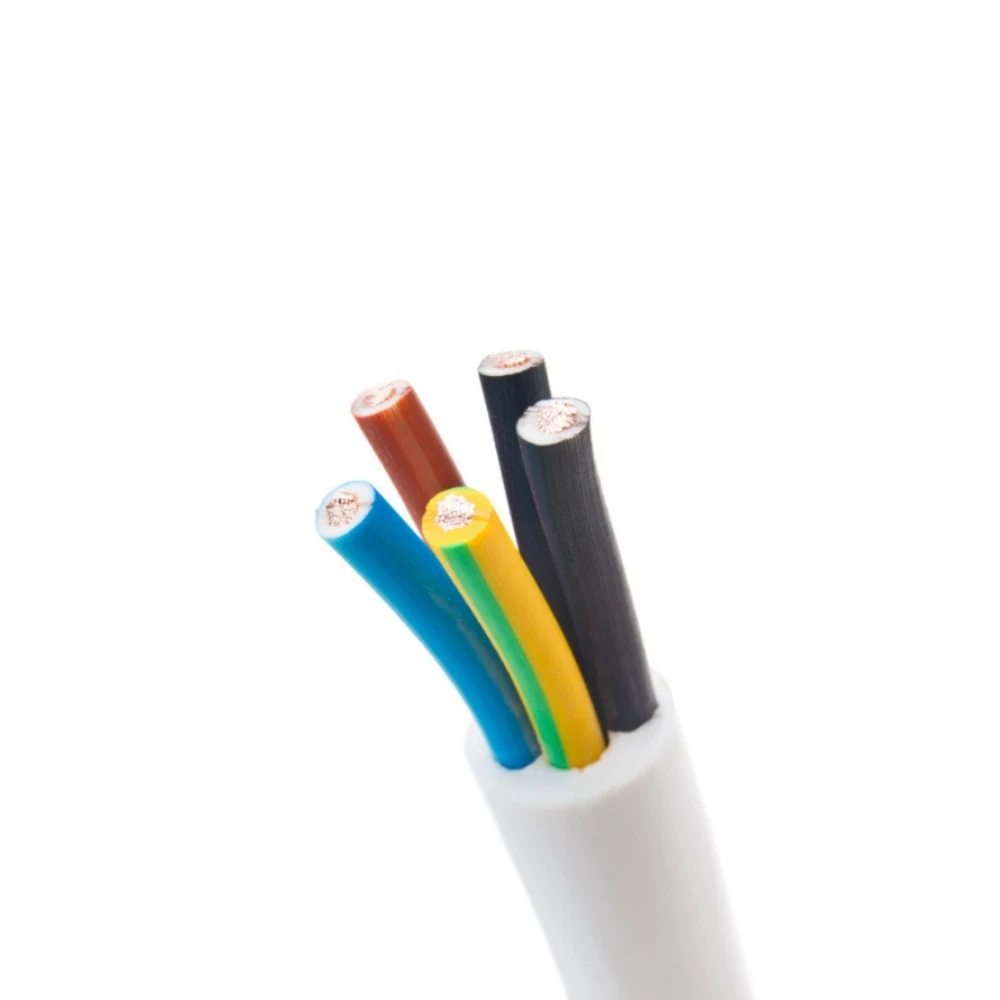

PVC/PVC H03VV-F H05VV-F Cable

Voltage: 300/300V 300/500V

Conductor: bare copper conductor, fine wired stranded, class 5
Insulation: PVC
Sheath: PVC
Sheath color: white or black

Application:

H03VV-F is suitable for dry areas, used for purposes requiring special flexibility in conditions free of any
mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in small devices with low
mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc.

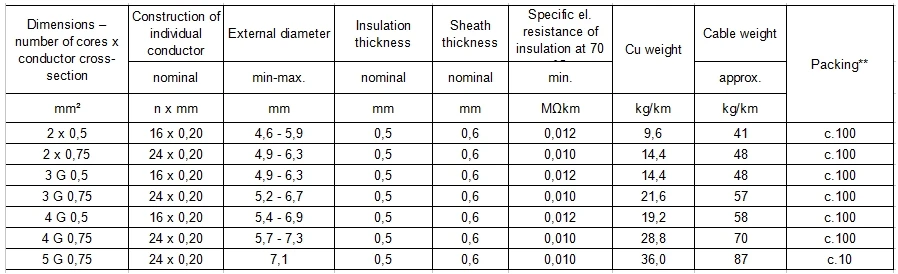

Product Paramenters

H03VV-F Cable

H05VV-F Cable
4G0,75	24 x 0,20	6,6 – 08,3	0,6	0,8	0,011	28,8	75	c.100
4G1	32 x 0,20	7,1 – 09,0	0,6	0,9	0,010	38,4	92	c.100
4G1,5	30 x 0,25	8,4 – 10,5	0,7	1,0	0,010	57,6	145	c.100
4G2,5	50 x 0,25	10,1 – 12,5	0,8	1,1	0,0095	96,0	210	c.100
4G4	56 x 0,30	11,5 – 14,3	0,8	1,2	0,0078	153,6	299	CUT
4G6	84 x 0,30	14,7	–	–	0,0068	230,4	480	CUT
