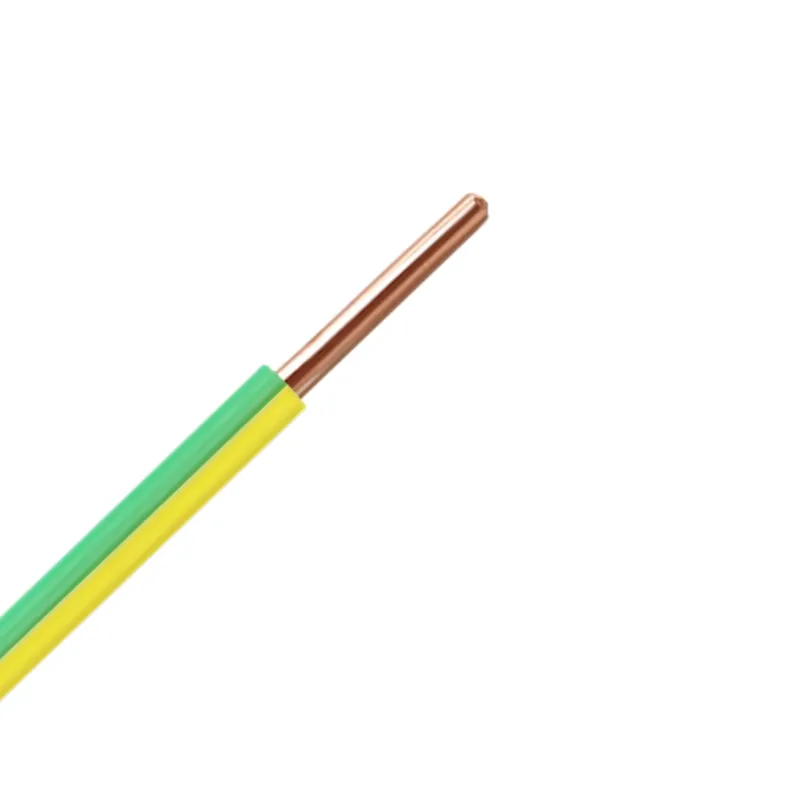

Factory Price Single-Core Copper Stranded PVC Insulated Electrical Wire BV 300/500V 1.5mm 2.5mm 4mm for Civil Electricity
|
Attribute |
Detail |
|
Product name |
Single Copper Core+PVC Insulation Wire |
|
Keyword |
House Wiring Cables |
|
Brand Name |
Jianyun |
|
Model Number |
BV |
|
Type |
insulated |
|
Application |
Underground |
|
Usage |
Building Wire Home Appliances |
|
Conductor Material |
Copper 99.995% |
|
Conductor Type |
Flexible |
|
Insulation Material |
PVC |
|
Jacket |
PVC |
|
Rated Voltage |
300/500V 450/750V 0.6/1KV |
|
Voltage |
450/750V 300/500V 300/300V |
|
Place of Origin |
Henan, China |
|
Color |
Red Blue Yellow Green (Mixed Color) |
|
Size |
1.5mm 2.5mm 4mm 6mm 10mm |
|
Standard |
GB/T5023-1997 |
|
MOQ |
100 Meters |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Conductor : Plain annealed copper conductor
Insulation : PVC (Polyvinyl Chloride )
Application :
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less
electrical wire Technical :
450/750V300/500V300/300V.(600/1000V also available)Max. permissible continuous operating temperature of the conductor: 70°C
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
|
Model |
Name |
|
BV |
Copper Core PVC Insulation Wire |
|
BLV |
Aluminum Core PVC Insulation Wire |
|
BVR |
Copper Core PVC Insulation Flexible Wire |
|
BVV |
Copper Core PVC Insulation PVC Sheath Round Wire |
|
BVVB |
Copper Core PVC Insulation PVC Sheath Flat Wire |
|
BLVVB |
Aluminum Core PVC Insulation PVC Sheath Flat Wire |
|
BV-105 |
Copper Core Heat-resistance 105°C PVC Insulation |
|
Nominal |
Conductor |
Nominal |
Max overall |
Condcutor |
Min insulated |
Weight |
|
2.5 |
9/0.41 |
0.8 |
4.2 |
7.41 |
0.011 |
33.0 |
|
4 |
19/0.52 |
0.8 |
4.8 |
4.61 |
0.009 |
48.0 |
|
6 |
19/0.64 |
0.8 |
5.6 |
3.08 |
0.0084 |
68.0 |
|
10 |
49/0.52 |
1.0 |
7.6 |
1.83 |
0.0072 |
115.0 |
|
16 |
49/0.64 |
1.0 |
8.8 |
1.15 |
0.0062 |
176.0 |
|
25 |
98/0.58 |
1.2 |
11.0 |
0.727 |
0.0058 |
272.0 |
|
35 |
133/0.58 |
1.2 |
12.5 |
0.524 |
0.0052 |
384.0 |
|
50 |
133/0.68 |
1.4 |
16.5 |
0.387 |
0.0051 |
510.0 |
|
70 |
189/0.68 |
1.4 |
16.5 |
0.268 |
0.0045 |
714.0 |
|
95 |
259/0.68 |
1. |
19.5 |
0.139 |
0.0035 |
965.0 |
|
120 |
259/0.76 |
1.8 |
22.0 |
0.153 |
0.0032 |
1210.0 |
|
150 |
259/0.85 |
1.8 |
25.0 |
0.124 |
0.0032 |
1510.0 |
