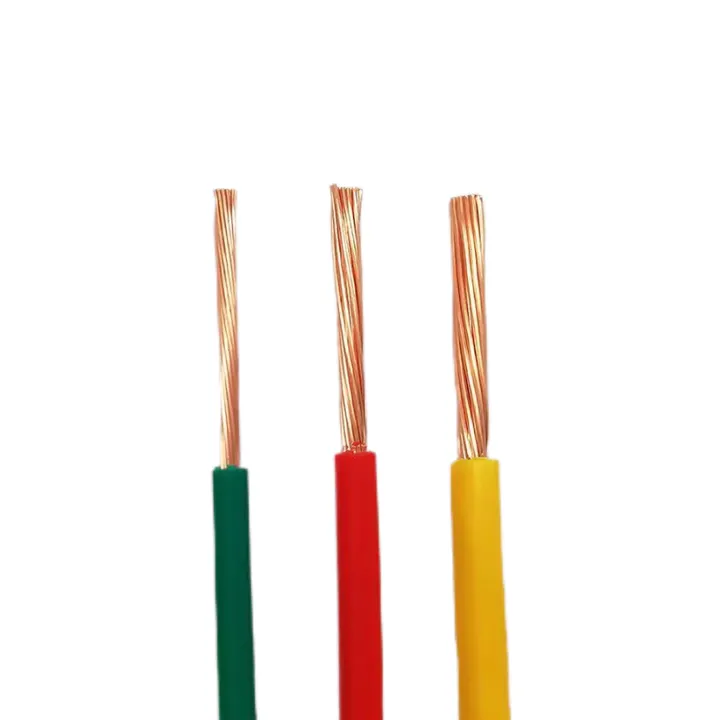

AS/NZS 5000.2 Twin & Earth Electric Wire

AS/NZS 5000.2 Flat TPS Twin and Earth Electric Wire and Cables 450/750V 3v-90 Sheath and PVC Insulation

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	TPS Twin and Earth Electric Wire and Cable (TPS wire)
Type	insulated 3V-90 Easy-tear PVC
Model Number	cu/pvc/pvc
Brand Name	JYXL
Place of Origin	Henan, China
Application / application	Household and industrial installation wire / Indoor, House, Building, Lighting
Standard	AS/NZS 5000.2
Conductor Material / Conductor	Copper / Solid or strand copper
Conductor Type	Solid or strand
Insulation Material / Insulation	V-90 PVC / PVC, V-90 PVC
Number of Cores	2C, 2C+E, 3C, 3C+E
Color	Black, yellow/green, blue, red, grey, or as required
Certification	CE, VDE, TUV, SAA

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Port of Dispatch	Tianjin port, Qing dao port, Shanghai port

Product Description

PRODUCTS DESCRIPTION

AS/NZS 5000.2 Flat TPS Twin and Earth Electric Wire and Cables, 450/750V. PVC Flat TPS 2C & 2C + earth, plain annealed copper wire, V-90 PVC insulation, 3V-90 easy-tear PVC sheath.

PRODUCTS KEYWORDS

BVVB, BLVVB, Flat TPS Cables, Flat Twin and Earth Cables, VAF, VAF-G, AS/NZS 5000.2 BVVB Cables, Australian BVVB Cables.

PRODUCTS APPLICATION

AS/NZS 5000.2 Flat TPS Twin and Earth Electric Wire and Cables, 450/750V. 2C & 2C+E cores flat TPS BVVB cables, it was used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.

No.of Cores x	Main	Normal	Normal	Earth	Over	Type
Nominal Cross	Conductor	Thickness	Thickness	Conductor	Diameter
Sectional Area	Type	of Insulation	of Jacket	Area	of Cable
(mm2 )	Type	(mm)	(mm)	(mm2 )	(mm)
1	solid	0.6	0.9	1	8.9*4.2	2C+E
1.5	Strand	0.6	0.9	1.5	9.9*4.5	2C+E
2.5	Strand	0.7	1	2.5	11.8*5.4	2C+E
2.5	Strand	0.7	1	2.5	12.2*54	2C+E
4	Strand	0.8	1.1	2.5	13.9*6.3	2C+E
6	Strand	0.8	1.1	2.5	15*6.9	2C+E
1.5	Strand	0.6	0.9	1.5	12.6*4.5	3C+E
1	solid	0.6	0.9		6.5*4.2	2C
2.5	Strand	0.7	1		8.9*54	2C
4	Strand	0.8	1.1		10.5*6.3	2C
1	solid	0.6	0.8		4	Single core
4	Strand	0.8	0.9		6	Single core
