Home / Product / Electric Wire / Flexible Electric Royal Cord Cable

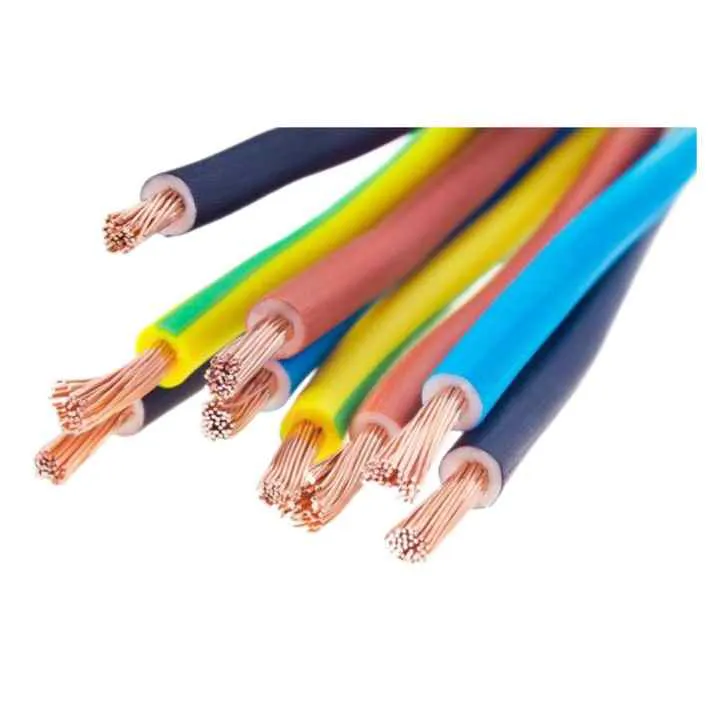

PVC Circular Royal Cord Cable 1.5mm2 2.5mm2 Electric Flexible Power Cable
|
Attribute |
Detail |
|
Model Number |
h03vv-f or h05vv-f |
|
Product Type |
low voltage, 3 core flexible copper wire |
|
Standard |
IEC60227 |
|
Conductor Material |
Copper or copper clad aluminum |
|
Insulation Material |
PVC |
|
Cores |
2, 3, 4, 5 cores |
|
Application |
Power device, lighting, electrical applicant, instrument |
|
Color |
blue, green, blank, grey |
|
Price |
factory direct sell |
|
Sample |
free sample |
|
Certification |
CE |
Brand and Origin
|
Attribute |
Detail |
|
Brand Name |
JYXL |
|
Place of Origin |
Henan, China |
Packaging, Delivery, and Supply
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
Soft packing in coil, $100\text{ meters/roll}$, or as your request |
|
Port of Dispatch |
Tianjin port, Qingdao port, Shanghai port |
PVC insulated wire&cable
is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including450/750V
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
1) Conductor: Copper ,Stranded
2) Insulation: PVC
3)Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
1) Rated voltage: 300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
