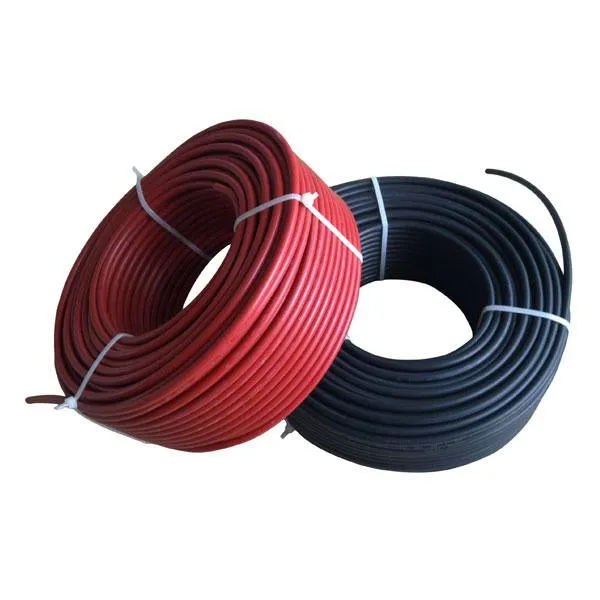

HT Solar DC Cable: 4mm, 6mm, 8mm OEM Solar Panel Wire

023 HT Solar Dc Cable 4mm Solar Panel Cable 6mm Solar Dc Cable 8mm OEM Wire

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	solar cable 6mm
Brand Name	JYXL
Product name	solar cable 6mm
Type	LOW VOLTAGE
Application	PV power systems
Conductor Material	Aluminum or copper
Conductor	AL.CU.
Core	single core
Insulation Material	xlpe
Insulation	XLPE
Jacket	XLPE
Sheathed	sunlight resistant
Size	6mm
Voltage	2kv pv wire
Color	Black Red
Price	Factory direct to sell
MOQ	1000Meters
Certificate	UL, TUV, CUL
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

Product Description

For use in solar power applications per NEC Article 690

Rated 90C for exposed or concealed wiring in wet or dry locations

Rated for direct burial conduit

Electrical Characteristics:

--Maximum Operating Voltage: 600 VRMS (UL PV)
Physical Characteristics:
--Temperature Rating: -40°C to 90°C
--Conductor AWG: 12 to 2000 AWG
--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
--Separator: Paper Tape
--Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
--Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated,flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
--Min. Bend Radius: 8x Diameter.

Size	Diameter of conductor	Number of strands	Insulation thickness	Nominal O.D	Net weight	Maximum conductor resistance at temperature 20°C
AWG or MCM	MM	N	MM	MM	KG/KM	Ω/KM
250	13.21	36	3.04	19.8	504	0.232
500	18.68	36	3.04	25.3	894	0.116
750	23.06	58	3.43	30.4	1312	0.0774
