Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / H1Z2Z2-K Solar Extension Cable (2.5-6mm²), MOQ 500m

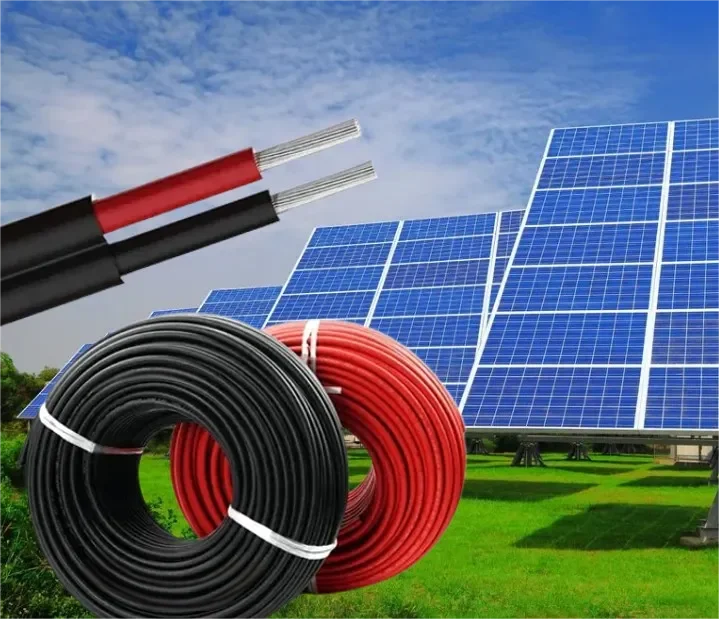

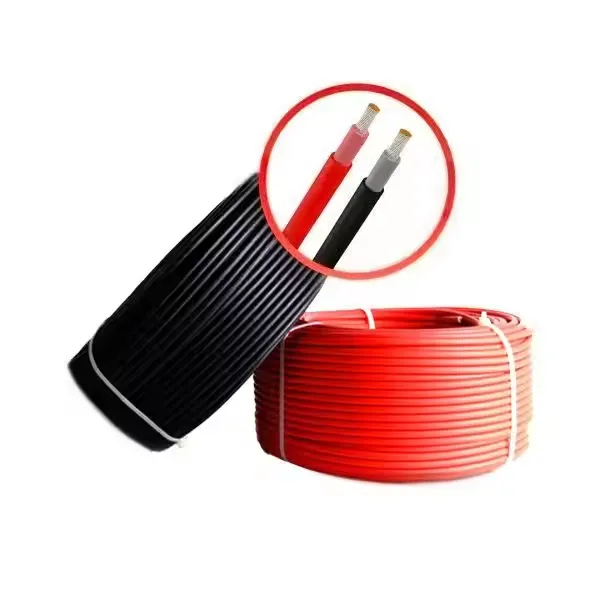

H1Z2Z2-K Manufacturer's PV1-F Tinned Copper XLPE Solar Extension Wire Cable 2.5mm-6mm Industrial Application MOQ 500m
|
Attribute |
Detail |
|
Product Name |
DC Solar Cable |
|
Brand Name |
JianYun |
|
Model Number |
Solar Cable (PV1-F, H1Z2Z2-K) |
|
Type |
Low Voltage |
|
Application |
Industrial |
|
Conductor Material |
Tinned Copper |
|
Core |
Single Core |
|
Size (Cross Sectional Area) |
2.5mm², 4mm², 6mm², 10mm² |
|
Insulation Material |
XLPO |
|
Jacket Material |
XLPE |
|
Material (Overall) |
Tinned Copper + XLPO |
|
Voltage Rating |
AC 1000V, DC 1500V (Rated Voltage: 1.5kV) |
|
Working Temperature |
90°C |
|
Color |
Black, Red |
|
Certificate |
ISO9001/CCC |
|
MOQ |
500m |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Solar Cable Structure
1、tinned copper wire
2、halogen free insulation
3、halogen free sheath
|
No. Of cores x Construction |
Conductor |
Outer Diameter |
Resistance Max.(Ω/km) |
Current Aarring Capacity |
|
1*1.5 |
30/0.25 |
4.90 |
13.30 |
30 |
|
1.2.5 |
50/0.25 |
5.45 |
7.89 |
41 |
|
1*4 |
56/0.3 |
6.10 |
4.75 |
50 |
|
1.6 |
84/0.3 |
7.20 |
3.39 |
70 |
|
1*10 |
142/0.3 |
9.00 |
1.95 |
98 |
|
1*16 |
228/0.3 |
10.20 |
1.24 |
132 |
|
1*25 |
361/0.3 |
12.00 |
0.795 |
176 |
|
1*35 |
525/0.3 |
13.8 |
0.565 |
218 |
|
1*50 |
720/0.3 |
14.8 |
0.393 |
280 |
|
1*70 |
988/0.3 |
16.9 |
0.277 |
350 |
|
1*95 |
1349/0.3 |
18.7 |
0.21 |
410 |
|
1*120 |
1691/0.3 |
20.7 |
0.164 |
480 |
