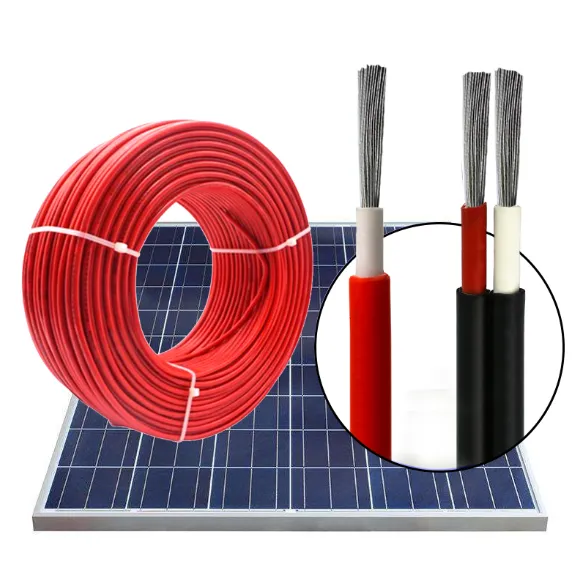

PV Wire Solar Cable 6mm 2 H1z2z2k ZZF Cable Halogen Free Cross-linked Insulation Solar Cable Design TUV Certificate EN Standard
|
Attribute |
Detail |
|
Model Number |
H1Z2Z2-K, ZZ-F |
|
Product name |
solar cable |
|
Brand Name |
JYXL |
|
Type |
Low Voltage |
|
Conductor Material |
Tinned Copper |
|
Conductor |
Tinned copper |
|
Insulation Material |
XLPO |
|
Insulation |
XLPO |
|
Jacket |
XLPO |
|
Application |
Construction, solar program |
|
Standard |
EN50618 |
|
Rated Voltage |
1500V |
|
Cross-section |
1.5mm² to 240mm² |
|
Temperature |
-40°C~+90°C |
|
Certification |
TUV |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment.
Construction
Conductor: Tinned copper, according to VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's requeit
Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V,50Hz,5min
Temperature Rating:
-45ºC ~ +125ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X
Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502
|
|
Conductor Construction |
Conductor ø |
Outer ø |
Resistance Max. |
Current Carring Capacity |
|
n×mm² |
n/m |
mm |
mm |
Ω/Km |
A |
|
1×1.5 |
30/0.25 |
1.58 |
4.9 |
13.3 |
30 |
|
1×2.5 |
50/0.25 |
2.02 |
5.45 |
7.98 |
41 |
|
1×4.0 |
56/0.3 |
2.30 |
6.1 |
4.75 |
55 |
|
1×6.0 |
84/0.30 |
3.42 |
7.2 |
3.39 |
70 |
|
1×10.0 |
142/0.30 |
4.56 |
9 |
1.95 |
98 |
|
1×16.0 |
228/0.30 |
5.60 |
10.2 |
1.24 |
132 |
|
1×25.0 |
361/0.30 |
6.95 |
12 |
0.795 |
176 |
|
1×35.0 |
525/0.30 |
8.74 |
13.8 |
0.565 |
218 |
|
1×50.0 |
720/0.30 |
9.20 |
14.8 |
0.393 |
280 |
|
1×70.0 |
988/0.30 |
11.00 |
16.9 |
0.277 |
350 |
|
1×95.0 |
1349/0.30 |
12.50 |
18.7 |
0.21 |
410 |
|
1×120 |
1691/0.30 |
14.20 |
20.7 |
0.164 |
480 |
