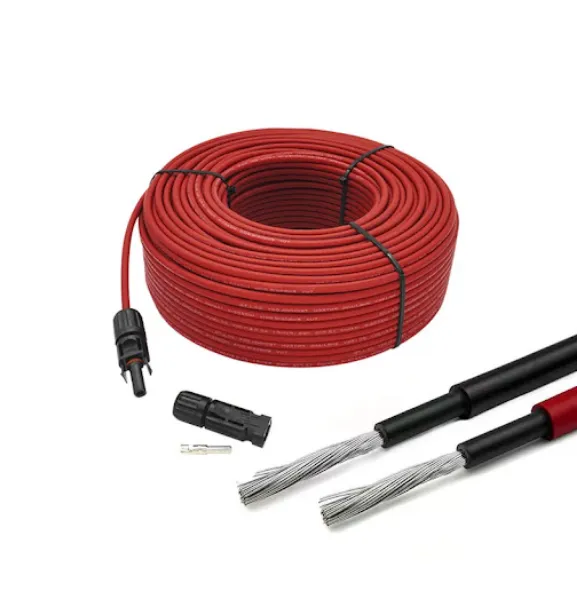

TUV Approved Solar Cable (1000m Drum)

TUV Approved EN50618 Solar Panel Wire Cable Manufacturer DC Solar Cable 6mm 10mm Price 1000M Drum

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	solar PV wire
Model Number	H1Z2ZW-K
Brand Name	JYXL
Application	solar system
Type	Medium Voltage
Conductor Material	tinned
Conductor	copper or aluminum alloy wire
Conductor Type	Stranded
Insulation Material	XLPO, XLPE
Insulation	XLPE Insulation
Jacket	XLPO
Cross-section	12awg - 2000kcmil
Rated Voltage	600V, 1000V, 2000V
Standard	EN50618
Certification	TUV
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	Standard export drum or as your request
Port of dispatch	Tianjin port, Qingdao port, Shang hai port

Supply Capacity

Attribute	Detail
Supply Ability	500 kilometers per Month solar cable

Product descriptions

solar panel wire cable 4mm 6mm DC solar cable price

1.Rating:Voltage:

AC 600/1000V DC1000/1800V Temperature:-40°C-- 125°C

2.Material:

(1)Conductor:Tinned annealed copper

(2)Insulation:125°C XLPE , black

(3)Jacket:125°C XLPE , black or red

3.Application:

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.

4.General characteristics:

Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire .

1.Double insulation,electron beam cross-linked

2.Excellent resistance to UV, water, ozone, fluids, salt, general Weathering

3.Excellent resistance to abrasion

4.Halogen free,flame retardant,low toxicity

5.Excellent flexibility and stripping performance

6.High current carrying capacity

7.TUV and UL approved

Specification:

Cross Section (mm²)	Conductor Construction (n/mm)	Conductor Stranded OD.(mm)	Insulation Min.Wall Thickness(mm)	Sheath Min.Wall Thickness(mm)	Cable OD.(mm)	Conductor Max.Resistance AT20°C (Ω/km)	Current Araaing Capacity AT 60°C(A)
1.5mm²	30/0.25	1.58	0.67	0.73	4.90	13.3	30
2.5mm²	50/0.25	2.02	0.67	0.73	5.45	7.98	41
4mm²	56/0.30	2.60	0.67	0.73	6.10	4.95	55
6mm²	84/0.30	3.42	0.8	0.80	7.20	3.30	70
10mm²	142/0.30	4.56	0.9	0.90	9.00	1.91	98
16mm²	228/0.30	5.60	1.00	0.90	10.20	1.21	132
25mm²	361/0.30	6.95	1.19	0.92	12.00	0.780	176
35mm²	276/0.40	8.74	1.20	1.00	13.80	0.554	218
