Home / Product / Solar Cable / H1Z2Z2-K 2x35mm² Solar Cable

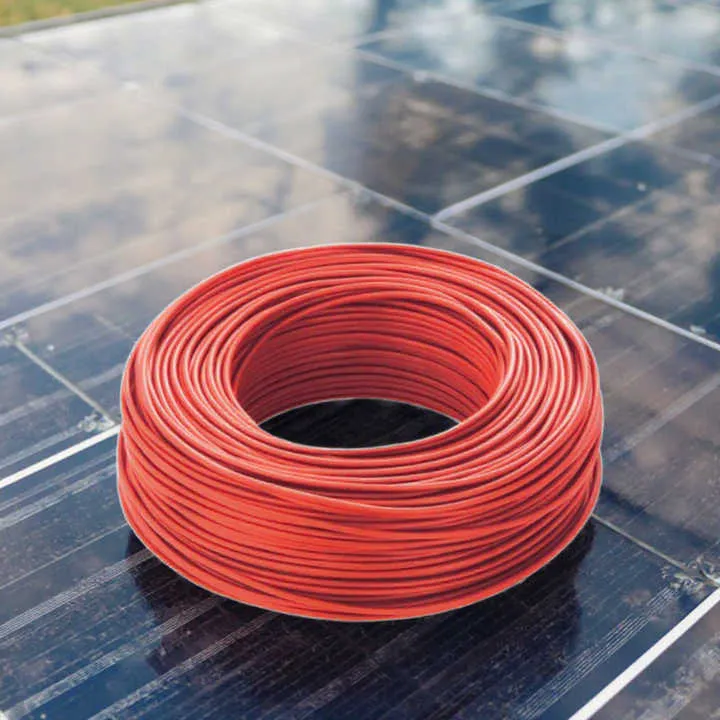

H1Z2Z2-K 2x35mm2 XLPO Insulating Sheath Solar Cable
|
Attribute |
Detail |
|
Product name |
H1Z2Z2-K Solar Cable |
|
Brand Name |
JYXL |
|
Type |
LOW VOLTAGE |
|
Application |
construction, industrial, power station |
|
Voltage |
0.6/1KV |
|
Conductor Material |
Copper, Aluminum, Copper-clad Aluminum |
|
Conductor |
Copper |
|
Core Number |
1 |
|
Cross section |
1.5mm2--35mm2 |
|
Insulation Material |
XLPO |
|
Insulation |
XLPO |
|
Jacket |
XLPO |
|
Sheath |
XLPO |
|
Standard |
EN50618 |
|
Certificate |
UL, TUV, KEMA, BV, PSB, SABS, ABS |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Single package size |
10X10X5 cm |
|
Single gross weight |
2.000 KG |
|
Packaging Details |
Standard Exporting Drum or as requesting |
|
Port of dispatch |
Tianjin port, Qingdao port, Shanghai port |
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
1,000,000 meters per Month |
Applications:
H1Z2Z2-K Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables have an operating temperature range of -40oC to +90oC.
Standard
EN 50618
Conductor: Tinned copper
Insulation: XLPO
Jacket: XLPO
Cable Parameters
|
NO. OF CORES |
NO. OF |
NOMINAL CONDUCTOR DIAMETER |
NOMINAL INSULATION THICKNESS |
NOMINAL SHEATH |
NOMINAL OVERALL |
NOMINAL |
|
NO. ×MM² |
- |
MM |
MM |
MM |
MM |
KG/KM |
|
1×1.5 |
30/0.25 |
1.58 |
1.14 |
0.82 |
5.4 |
52 |
|
1×2.5 |
50/0.25 |
2.04 |
1.14 |
0.82 |
5.8 |
67 |
|
1×4.0 |
56/0.30 |
2.59 |
1.14 |
0.82 |
6.4 |
87 |
|
1×6.0 |
84/0.30 |
3.17 |
1.14 |
0.82 |
7.0 |
113 |
|
1×10 |
78/0.40 |
4.07 |
1.52 |
0.82 |
8.6 |
178 |
|
1×16 |
128/0.40 |
5.22 |
1.52 |
0.82 |
9.8 |
254 |
|
1×25 |
199/0.40 |
6.51 |
1.52 |
0.82 |
11.1 |
363 |
|
1×35 |
279/0.40 |
7.71 |
1.52 |
0.82 |
12.3 |
473 |
