Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / Solar PV Power Cable (2.5mm² - 10mm²)

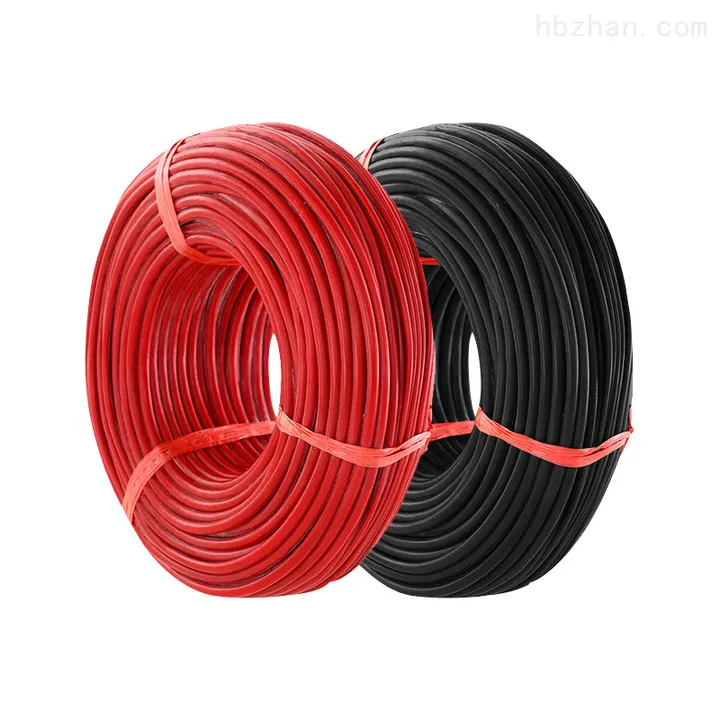

Solar PV Cable 2.5MM2 4MM2 6MM2 10MM2 DC Power Solar PV Cable
|
Attribute |
Detail |
|
Product Name |
DC Solar Cable |
|
Model Number |
Solar Cable |
|
Brand Name |
JianYun |
|
Type |
LOW VOLTAGE |
|
Application |
Industrial |
|
Conductor Material |
Copper |
|
Conductor |
Tinned Copper |
|
Insulation Material |
XLPO |
|
Insulation |
XLPO Insulation |
|
Jacket |
XLPE |
|
Material |
Tinned Copper+XLPO |
|
Core |
Single Core |
|
Size |
Single Core |
|
Hot Sale Size |
4mm/6mm/10mm Solar Cable |
|
Voltage |
AC1000V DC 1500V |
|
Rated Voltage |
1KV |
|
Rated Current |
30A, 16A |
|
Working Temperature |
70°C, 90°C |
|
Color |
Black, Red |
|
Certificate |
ISO9001/CCC |
|
MOQ |
500m |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Solar Cable Structure
1、tinned copper wire
2、halogen free insulation
3、halogen free sheath
|
No. Of cores x Construction |
Conductor |
Outer Diameter |
Resistance Max.(Ω/km) |
Current Aarring Capacity |
|
1*1.5 |
30/0.25 |
4.90 |
13.30 |
30 |
|
1.2.5 |
50/0.25 |
5.45 |
7.89 |
41 |
|
1*4 |
56/0.3 |
6.10 |
4.75 |
50 |
|
1.6 |
84/0.3 |
7.20 |
3.39 |
70 |
|
1*10 |
142/0.3 |
9.00 |
1.95 |
98 |
|
1*16 |
228/0.3 |
10.20 |
1.24 |
132 |
|
1*25 |
361/0.3 |
12.00 |
0.795 |
176 |
|
1*35 |
525/0.3 |
13.8 |
0.565 |
218 |
|
1*50 |
720/0.3 |
14.8 |
0.393 |
280 |
|
1*70 |
988/0.3 |
16.9 |
0.277 |
350 |
|
1*95 |
1349/0.3 |
18.7 |
0.21 |
410 |
|
1*120 |
1691/0.3 |
20.7 |
0.164 |
480 |
