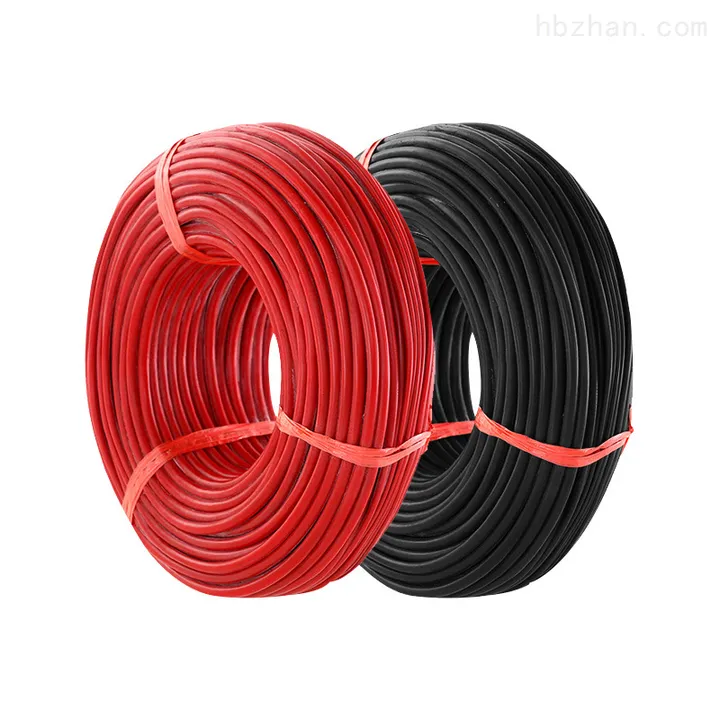

25mm² Black H1Z2Z2-K Solar Cable (200m Reel)

TUV EN50618 Black 25mm2 H1Z2Z2-K Solar Cable 200m/reel Solar Cabled Power Cables Manufacturer in China

Send Email Get Best Price

Key Attributes

Industry-Specific Attributes
Insulation Material	XLPO
Application	Photovoltaic (PV) Solar Power
Conductor Material	Copper/Aluminum/Tinned Copper
Jacket	XLPO
Other Attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	PV Solar Cable
Type	Low Voltage
Product Name	Photovoltaic Wire Solar Cable
Common Type	H1Z2Z2-K
Standard	EN50618 & TUV 2PfG/1169
Number of Cores	Single Core or Double Core
Certificate	UL, TUV Double certification
Common Size	4mm², 6mm², 10mm², 16mm²
Common Structure	CU(AL)/XLPO, CU(AL)/XLPO/XLPO
Temperature Rating	-40°C~+90°C (90, 105, 125 or 150°C dry and 90°C wet)
Conductor Type	Flexible Tinned Copper, Bare Copper, Aluminum alloy Conductor
Voltage Rating	AC 0.6/1 kV DC 0.9/1.5kV Max. 1.8 kV DC
Packaging and Delivery
Packaging Details	Packing in wooden drum or according to customer demand
Port of Dispatch	Tianjin port, Qingdao port, Shanghai port or other port
Selling Units	Single item
Supply Capacity
Supply Ability	10,000 kilometers per Month photovoltaic wire cable

TUV EN50618 black 25mm2 H1Z2Z2-K solar cable 200m/reel solar cabled power cables manufacturer in China

This cable is used for interconnecting power supplies within renewable energy photovoltaic

systems, such as solar panel arrays in solar energy farms. These solar panel cables are suitable

for fixed installations, both internal and external, and within conduits or systems.

1. Conductor: Tinned soft copper wires, class 5, according to EN60228;

2. Insulation: Cross-linked polyolefin, low smoke zero halogen(LSZH)

3. Jacket: Cross-linked polyolefin, low smoke zero halogen(LSZH)

Max. conductor temperature: 120℃

Ambient temperature: -40 to +90.

EN50618

Voltage:

DC 1.5KV, AC1.0/1.0KV

Strong UV resistanceFlame retardant

Low smoke halogen free LSZH

Lift time at least 25 years

Test voltage:

AC 6.5KV for 5min, not break down

Conductor Size (mm2)	Inner Insulation	Outer Insulation	Approx. Nominal Overall Diameter
	Nominal Thickness	Nominal Thickness	Approx. Nominal Overall Diameter
	(mm)	(mm)	(mm)
1x4	0.7	0.8	5.6
1x6	0.7	0.8	6.3
1x10	0.7	0.8	7.4
1x16	0.7	0.9	8.6
1x25	0.9	1	11.1
1x35	0.9	1.1	13.0
1x50	1.0	1.2	15.1
1x70	1.1	1.2	17.2
1x95	1.1	1.3	18.6
1x120	1.2	1.3	20.6
1x150	1.4	1.4	23.4
1x185	1.6	1.6	25.5
1x240	1.7	1.7	28.7
