Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / 6mm2 XLPO Single Core Flexible Tinned Copper Solar Cable (Red/Black)

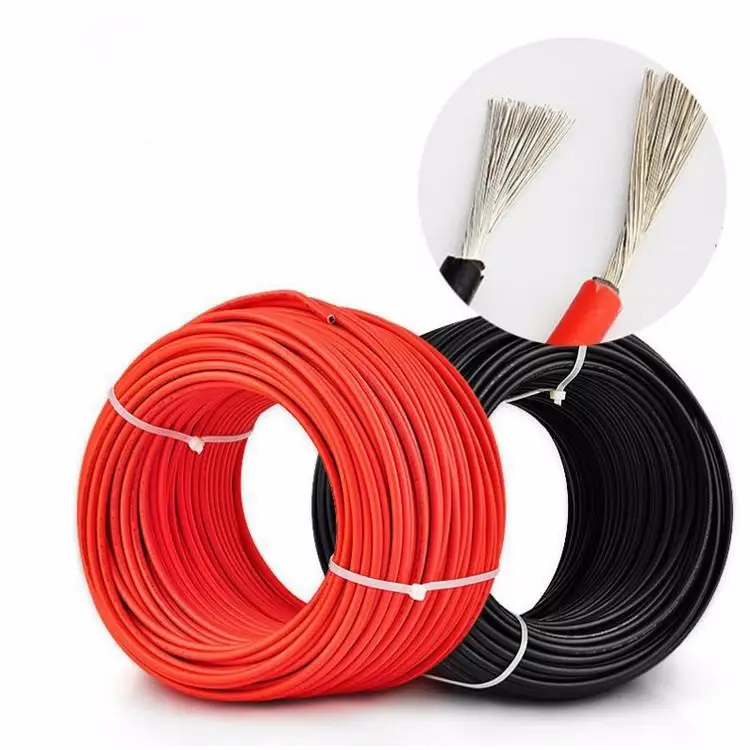

Hot Sales 6mm2 XLPO Single Core Flexible Solar Panel Cable Red Black Tinned Copper Insulated Low Voltage for Industrial Use
|
Insulation Material |
XLPO |
|
Application |
Industrial |
|
Conductor Material |
Copper |
|
Jacket |
XLPO |
|
Place of Origin |
Henan, China |
|
Rated Voltage |
1.5kV, 1.8kV |
|
Rated Current |
Based |
|
Brand Name |
JianYun |
|
Model Number |
Solar Cable |
|
Type |
LOW VOLTAGE |
|
Size |
single core |
|
Product name |
DC Solar Cable |
|
Color |
Black Red |
|
Insulation |
XLPO Insulation |
|
Voltage |
AC1000V DC 1500V |
|
Core |
Single Core |
|
Certificate |
ISO9001/CCC |
|
Conductor |
Tinned Copper |
|
Material |
Tinned Copper+XLPO |
|
MOQ |
500m |
|
Hot Sale Size |
4mm/6mm/10mm Solar Cable |
1、tinned copper wire
2、halogen free insulation
3、halogen free sheath
|
No. Of cores x Construction |
Conductor |
Outer Diameter |
Resistance Max.(Ω/km) |
Current Aarring Capacity |
|
1*1.5 |
30/0.25 |
4.90 |
13.30 |
30 |
|
1.2.5 |
50/0.25 |
5.45 |
7.89 |
41 |
|
1*4 |
56/0.3 |
6.10 |
4.75 |
50 |
|
1.6 |
84/0.3 |
7.20 |
3.39 |
70 |
|
1*10 |
142/0.3 |
9.00 |
1.95 |
98 |
|
1*16 |
228/0.3 |
10.20 |
1.24 |
132 |
|
1*25 |
361/0.3 |
12.00 |
0.795 |
176 |
|
1*35 |
525/0.3 |
13.8 |
0.565 |
218 |
|
1*50 |
720/0.3 |
14.8 |
0.393 |
280 |
|
1*70 |
988/0.3 |
16.9 |
0.277 |
350 |
|
1*95 |
1349/0.3 |
18.7 |
0.21 |
410 |
|
1*120 |
1691/0.3 |
20.7 |
0.164 |
480 |
