A rubber cable is an electrical cable that features insulation and sheathing made from rubber, which provides flexibility, durability, and resistance to environmental factors such as moisture, UV radiation, and extreme temperatures. The rubber insulation ensures electrical safety and helps protect the inner conductors from damage.
Home / Product / Rubber Cable / Single Core Stranded Welding Cable (25-120mm²)

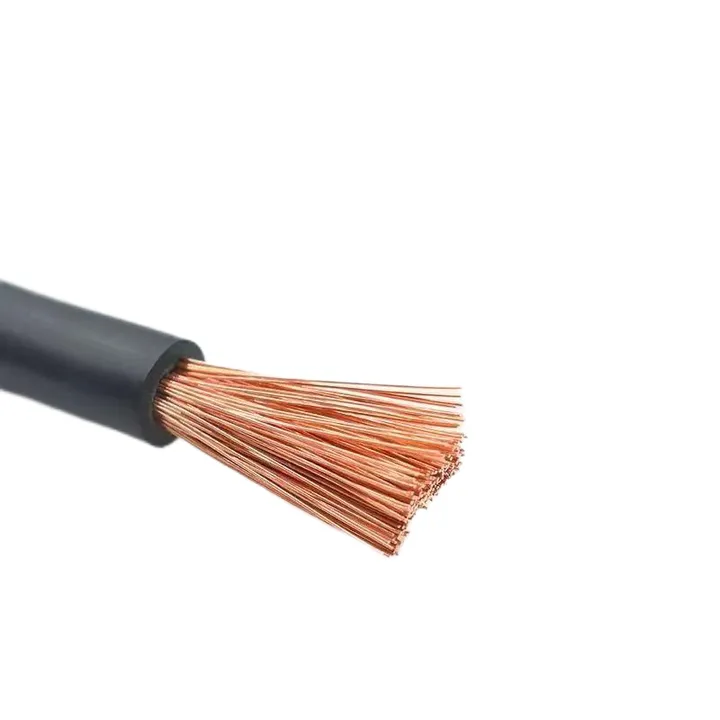

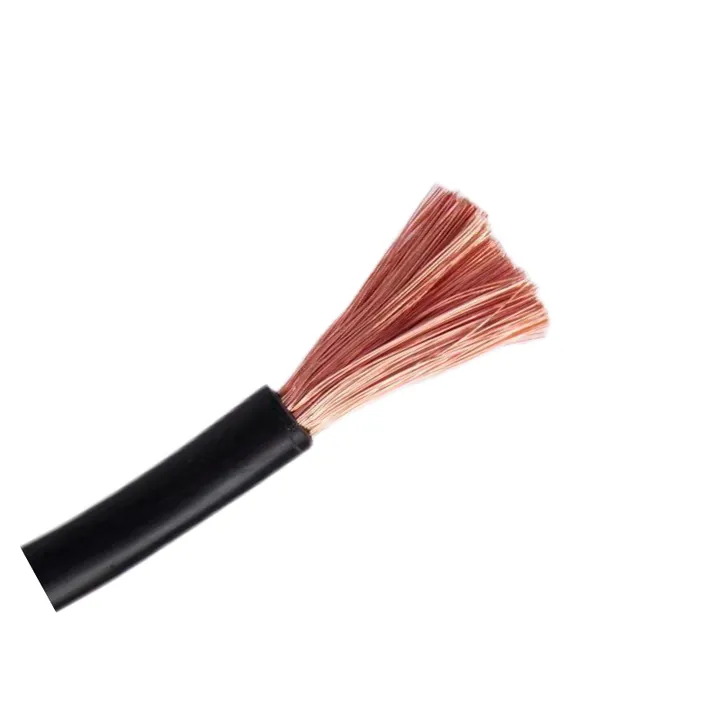

Single Core Stranded Welding Cable 25MM 35MM 50MM 70MM 95MM 120MM for Welding Machine
|
Attribute |
Detail |
|
Product Name |
Single Core Stranded Welding Cable 25MM 35MM 50MM 70MM 95MM 120MM |
|
Model Number |
YH |
|
Application |
Industrial |
|
Type |
LOW VOLTAGE |
|
Rated Voltage |
450/750V |
|
Conductor Material |
Copper |
|
Conductor |
Pure Copper |
|
Core |
Single core |
|
Insulation Material |
Rubber |
|
Insulation |
Rubber Insulation |
|
Jacket |
Rubber |
|
Size |
25MM 35MM 50MM 70MM 95MM 120MM |
|
Color |
Black, Red |
|
Working Temperature |
90°C, 70°C |
|
Standard |
GB/T 5013-2008 |
|
Certificate |
ISO9001/CCC |
|
Brand Name |
Jianyun |
|
Place of Origin |
Henan, China |
|
Material |
Copper + Rubber |
|
MOQ |
100m |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
CONSTRUCTION
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound
Product features:
Soft, resistant to bending and a certain degree of weather resistance.
Executive standard:
GB/T 5013-2008 Additional standard for rubber insulated cables with rated voltage 450/750V and below;
Use characteristics;
Rated voltage:
The rated voltage is 0.2kV, and the highest voltage of the DC ripple system should not exceed 1kV. Working temperature The long-term allowable maximum working temperature of cable conductor is 60ºC.
Application:
This product is suitable for DC ripple voltage 1000V and below lines. It is suitable for all kinds of special mobile cables for welding equipment.
|
