Rubber Insulated Copper Cable 450/750V (Oxygen-free)

JYXL Brand Wholesale Factory 450/750V Copper Conductor Copper Conductor Rubber-insulated Oxygen-free Copper Cable

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes

Insulation Material	Rubber
Application	Industrial
Conductor Material	Copper
Jacket	Rubber

Other attributes

Place of Origin	Henan, China
Brand Name	JYXL
Model Number	Welding Cable
Type	LOW VOLTAGE
Size	Single Core
Product name	(Welding Cables) Rubber Sleeve Cable
Conductor	Pure Copper
Color	Black Orange
Insulation	Rubber Sleeve Insulation
Material	Copper + Rubber Sleeve
Core	single core
Cross section	10mm 16mm 25mm 35mm 50mm
Rated voltage	450/750V
Standard	GB/T5013-2008
MOQ	100 Meters

PRODUCT SHOW

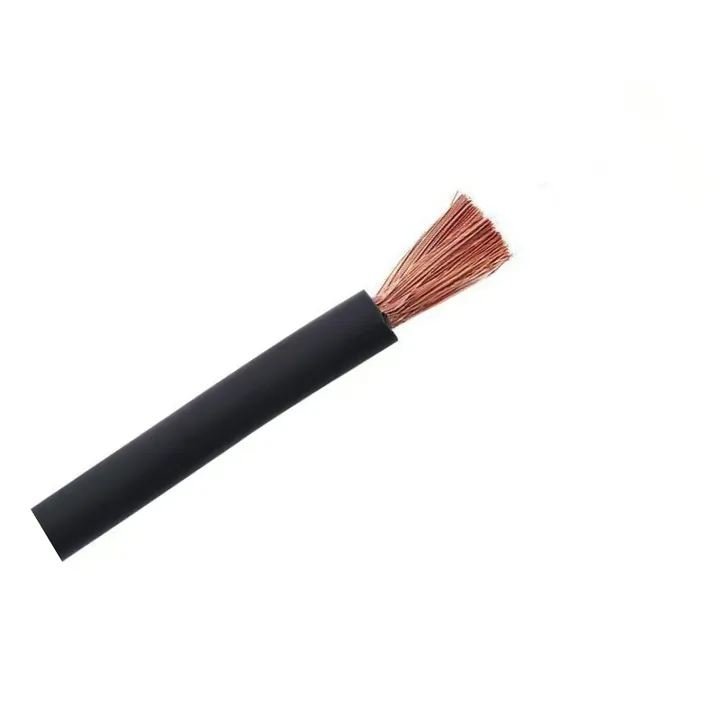

Welding Cable

CONSTRUCTION

Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator
PET (Polyester Tape)
Sheath
The rubber compound

Product features:

Soft, resistant to bending and a certain degree of weather resistance.

Executive standard:

GB/T 5013-2008 Additional standard for rubber insulated cables with rated voltage 450/750V and below;
Use characteristics;

Rated voltage:

The rated voltage is 0.2kV, and the highest voltage of the DC ripple system should not exceed 1kV. Working temperature The long-term allowable maximum working temperature of cable conductor is 60ºC.

Application:

This product is suitable for DC ripple voltage 1000V and below lines. It is suitable for all kinds of special mobile cables for welding equipment.

Product Paramenters

Model	Name	Main applications	Working temperature of core ≤0C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153
16	513/0.20	2.0	9.2	11.5	1.16	218	230
25	798/0.20	2.0	10.5	13.0	0.758	316	331
35	1121/0.20	2.0	11.5	14.5	0.536	426	439
50	1596/0.20	2.2	13.5	17.0	0.379	592	610
70	2214/0.20	2.4	15.0	19.5	0.268	790	817
95	2997/0.20	2.6	17.0	22.0	0.198	1066	1102
120	1702/0.30	2.8	19.0	24.0	0.161	1348	1392
150	2135/0.30	3.0	21.0	27.0	0.129	1678	1698
185	1443/0.40	3.2	22.0	29.0	0.106	1983	2020
