N2XSY/NA2XSY XLPE Underground Power Cable

XLPE Insulated Cable N2XSY NA2XSY 6 KV 10KV 20KV 35 KV Underground Power Cable

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	N2XSY cable
Model Number	N2XSY cable
Brand Name	JYXL
Type	Medium Voltage
Application	Industrial, Underground
Voltage	3.6/6kv-25/35kv
Conductor Material	Copper or Aluminum
Conductor	Copper
cores	Single
Cross section	630mm²
Insulation Material	XLPE
Insulation	XLPE
Jacket	PVC
Sheathed	PVC
Amour	steel wire armoured
Standard	IEC60502
Certificate	PSB, TUV, KEMA
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	Standard export drum
Single package size	30X30X10 cm
Single gross weight	1.000 kg
Port of dispatch	Tianjin port, Qingdao port, Shanghai port

Supply Capacity

Attribute	Detail
Supply Ability	1,000,000 meters per Month

Product Description

TOP TEN CABLE MANUFACTURER IN CHINA

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT VOLUME EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

CNAS APPROVAL LABROTARY

3.6/6KV 6/10KV 12/20KV 18/30KV MV single core xlpe insulated copper wire shielded pvc jacket power cable N2XSY/NA2XSY is manufactured according to IEC60502 IEC60332,IEC60311 and /or the BS,

DIN and/or other types of international standards.We can also produce flame retardant cable,water blocking cable,low-smoke low-halogen cable and low-smoke halogen free cable,and also can design and produce cables according to the requirement of our clients

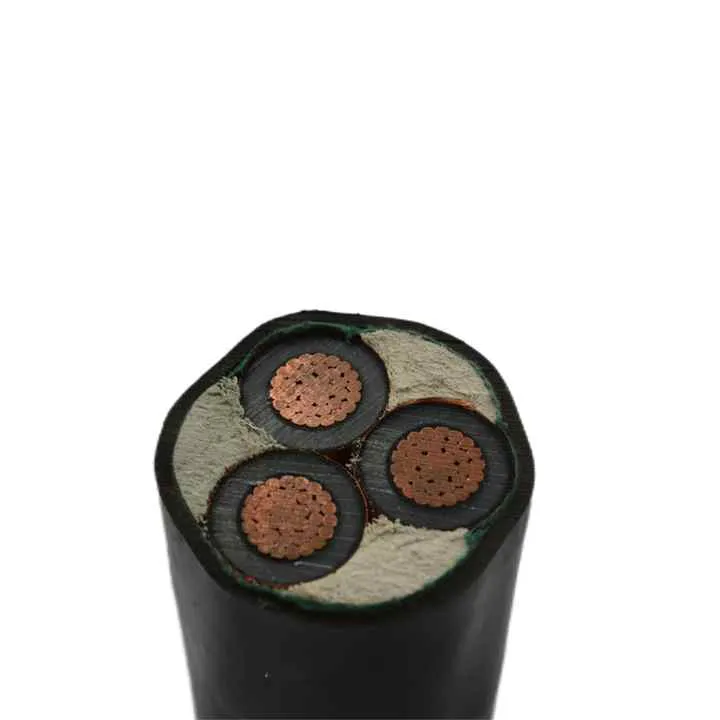

Structure of xlpe 11kv power cable price

Conductor: Solid or stranded copper/Aluminum

Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)

Filler: Polypropylene filament with lapped binding tape

Binder: Binding tape

Inner sheath: Polyvinyl chloride (PVC)

Armouring: Single Core: AWA (Aluminium Wire Armour)

Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)

Sheath: Polyvinyl chloride (PVC)

a, Number of cores:

1, 3 .

b, Nominal Section Area(mm2) : 25 35 50 70 95 120 150 185 240 300 400 500 630 800

c,Rated Voltage(KV):3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/20, 18/20, 18/30, 26/35

Type	Designation	Applications
YJV	Copper conductor,XLPE insulated, PVC sheathed power cable	For laying indoors,in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct.
YJLV	Aluminum conductor,XLPE insulated, PVC sheathed power cable
YJY	Copper conductor, XLPE insulated, PE sheathed power cable
YJLY	Aluminum conductor, XLPE insulated, PE sheathed power cable
YJV22	Copper conductor,XLPE insulated, steel tape armoured,PVC sheathed power cable	For laying indoors,in tunnel in cable trench, or direct in ground,able to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct.
YJLV22	Aluminum conductor,XLPE insulated, steel tape armoured,PVC sheathed power cable
YJV23	Copper conductor,XLPE insulated, steel tape armoured,PE sheathed power cable
YJLV23	Aluminum conductor,XLPE insulated, steel tape armoured,PE sheathed power cable
YJV32	Copper conductor,XLPE insulated, steel wire armoured,PVC sheathed power cable	For laying indoors,in tunnel cable trench, well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32	Aluminum conductor,XLPE insulated, steel wire armoured,PVC sheathed power cable
YJV33	Copper conductor,XLPE insulated, steel wire armoured,PE sheathed power cable
YJLV33	Aluminum conductor,XLPE insulated, steel wire armoured,PE sheathed power cable
