IEC 60502-2 Cu XLPE Underground Cable

Cu XLPE Insulated 33kV HT 3C 240 Sqmm Underground Cable with IEC60502-2 Standard

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	3C 240 sqmm underground cable
Model Number	YJV32 YJLV32
Brand Name	JYXL
Application	Underground
Usage	Underground
Type	Medium Voltage
Rated Voltage	medium votlage
Conductor Material	copper or aluminum
Cross Section	70mm², 120mm², 150mm², 185mm², 240mm²
Insulation Material	xlpe
Jacket	PVC
Armour	steel wire armoured
Standard	IEC, ASTM, BS, DIN
Certificate	UL TUV BV CE SABS PSB ISO CCC
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	steel-wooden drum for 3C 240 sqmm underground cable
Port of dispatch	Tianjin, Qingdao or other main port
Packing	wooden drum or steel woodren

Supply Capacity

Attribute	Detail
Supply Ability	1,000,000 meters per Month

Product Description

Cu XLPE insulated 33kV HT 3C 240 sqmm Underground Cable with IEC60502-2 standard

Standard:IEC60502, BS6346, VDE, AS/NZS, UL,etc

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 low votage

1 or 3 core medium voltage

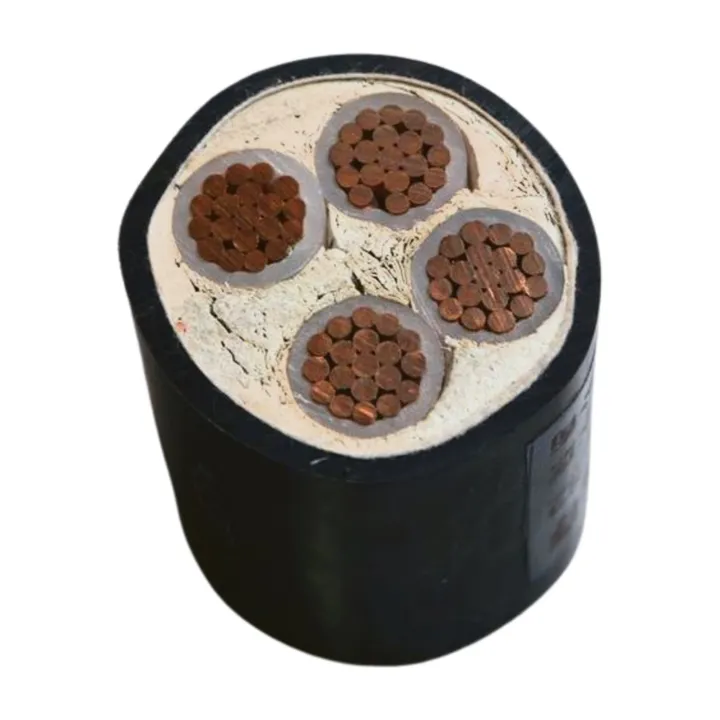

Construction:

Conductor: Solid or stranded copper/aluminum

Insulation: Cross-linked polyethylene (XLPE)

Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Sectional Area:

1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2

production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2

Type and Name:

Model		Name	Application	Cable Cores	Section area (mm)
Copper Core	Aluminum Core	Name	Application	Cable Cores	Section area (mm)
YJV	YJLV	CU/AL Conductor, XLPE Insulated, PVC Sheathed Power Cable	XLPE insulation PVC/PE sheathed power cables are used for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces and pulling forces. Single core cable can't laying in magnetic ducts .	1C 3C	25 \| 400
YJY	YJLY	CU/AL Conductor, XLPE Insulated, PE Sheathed Power Cable
YJV22	YJLV22	CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power Cable	XLPE insulation PVC/PE sheathed steel-tape armored power cables can be buried directly .Able to bear external mechanical forces but large pulling forces.
YJV23	YJLV23	CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power Cable
YJV32	YJLV32	CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PVC Sheathed Power Cable	XLPE insulation armoured power cables can apply to shafts,water and soil. Able to bear moderate pulling forces.
YJV33	YJLV33	CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PE Sheathed Power Cable
YJV42	YJLV42	CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PVC Sheathed Power Cable	Steel-wire armored,PVC/PE Sheathed Power Cables are apply to shafts,water and soil.Able to bear large pulling forces.
YJV43	YJLV43	CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PE Sheathed Power Cable
