LV 3-Core Aluminum XLPE STA PVC Cable 3x95mm²

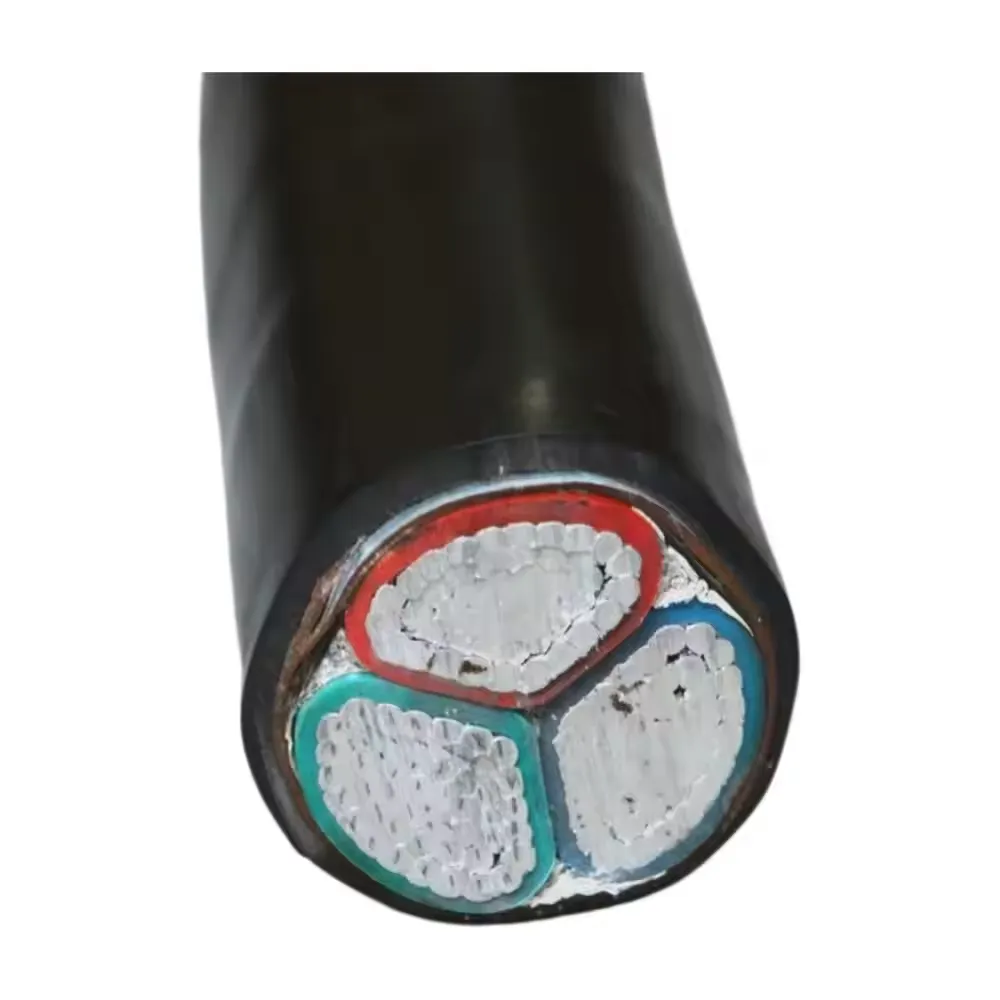

0.6/1kV 3 Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheath Power Cable 3x95mm2

Send Email Get Best Price

Details

Product Introduction

JianYun YJLV 22 Low Voltage Power Cable, crafted in Henan, China, is a robust solution for industrial power transmission needs. This 3-core cable features an Aluminum conductor and XLPE insulation, encased in a durable PVC jacket. Certified by CCC and compliant with GB12706 and IEC60502 standards, the YJLV 22 model ensures reliable performance for low voltage (0.6/1kV) applications. Available in black and delivered on wooden drums, it supports rated currents of 16A and 30A and operates effectively within a 70°C to 90°C working temperature range. Choose JianYun YJLV 22 for dependable power delivery in demanding industrial environments.

Key attributes

· Industry-specific attributes

Attribute	Value
Application	Industrial, Power Transmission
Conductor Material	Aluminum
Insulation Material	XLPE
Jacket	PVC

· Other attributes

Attribute	Value
Brand Name	JianYun
Certificate	CCC
Color	Black
Conductor	Aluminum
Core	3 CORE
Insulation	XLPE
Model Number	YJLV 22
Package	Wooden Durm
Place of Origin	Henan, China
Product name	0.6/1kV 3 core AL/XLPE/STA/PVC sheathed power cable
Rated Current	16A, 30A
Rated Voltage	0.6 kV, 1 kV
Standard	GB12706, IEC60502
Type	LOW VOLTAGE
Size	3 CORE
Voltage	0.6/1kV
Working Temperature	90°C, 70°C

Construction

Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Product Paramenters

0.6/1kV-3 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.7	0.2	1.8	13.9	257	12.1	-	23
3X4	0.7	0.2	1.8	14.8	296	7.41	-	30
3X6	0.7	0.2	1.8	16	342	4.61	-	38
3X10	0.7	0.2	1.8	18.6	447	3.08	50	47
3X16	0.9	0.2	1.8	21	563	1.91	64	62
3X25	0.9	0.2	1.8	24.6	744	1.2	86	78
3X35	0.9	0.2	1.8	26	869	0.868	105	94
3X50	1	0.2	1.9	28.9	1074	0.641	125	110
3X70	1.1	0.2	2	33.9	1443	0.443	165	135
3X95	1.1	0.5	2.2	39	2183	0.32	200	160
3X120	1.2	0.5	2.3	42.7	2593	0.253	235	185
3X150	1.4	0.5	2.4	47.5	3155	0.206	270	205
3X185	1.6	0.5	2.6	52.1	3743	0.164	310	235
3X240	1.7	0.5	2.8	58.3	4641	0.125	365	260
3X300	1.8	0.5	2.9	63.6	5508	0.1	420	290
