Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.
Home / Product / Low Voltage Power Cable / YJV22 Copper/XLPE/PVC/STA Power Cable 3*50mm²

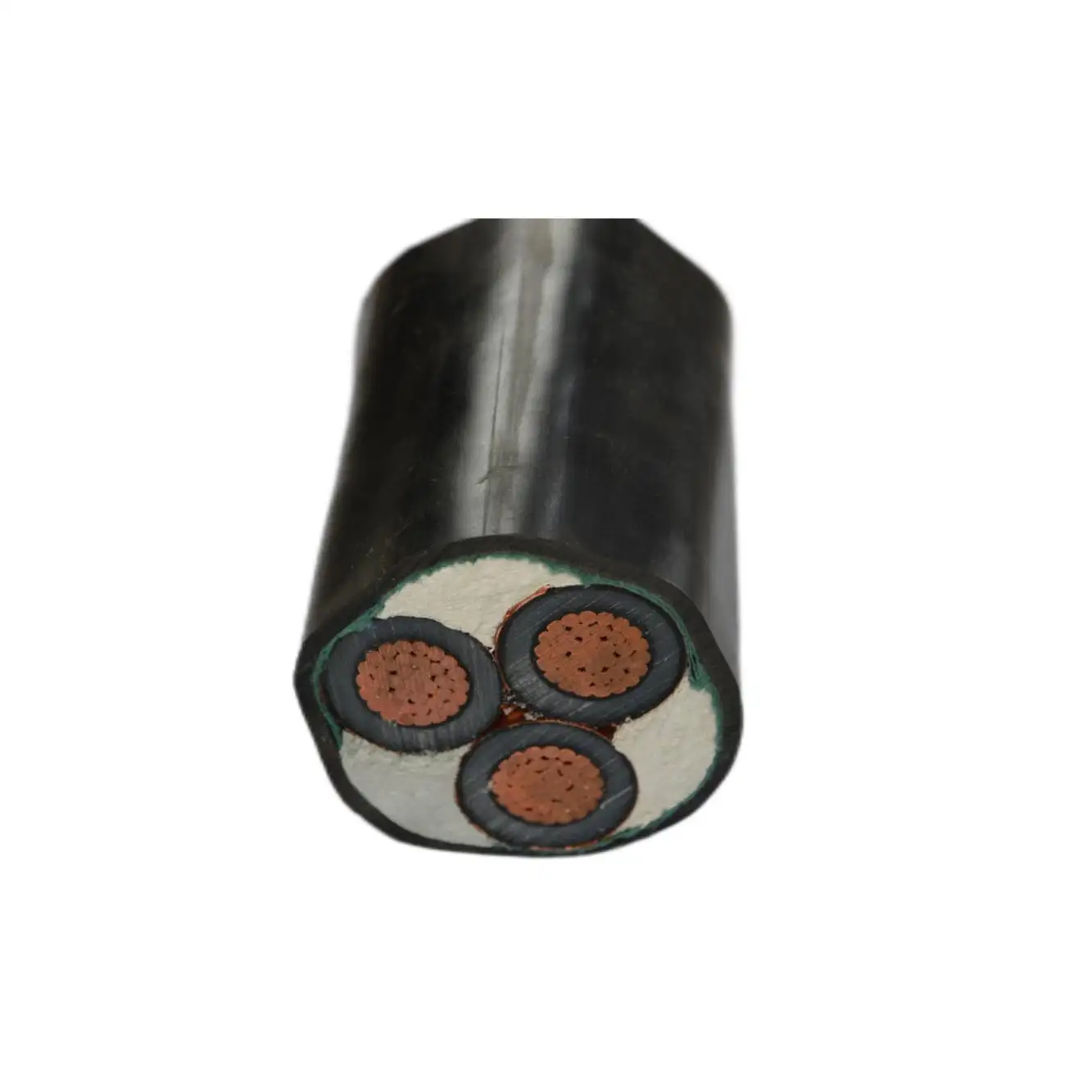

Copper Conductors XLPE Insulated PVC Sheathed Steel Tape Armored Fire-Resistant YJV22 3*50mm² Low Voltage Power Cable Rated
|
Attribute |
Value |
|
Insulation Material |
xlpe |
|
Application |
Construction |
|
Conductor Material |
Copper |
|
Jacket |
PVC |
|
Attribute |
Value |
|
Place of Origin |
Henan, China |
|
Brand Name |
JianYun |
|
Model Number |
NH-YJV22 |
|
Type |
LOW VOLTAGE |
|
Size |
3*50 |
|
Product name |
NH-YJV22 |
|
Conductor |
Pure Copper |
|
Color |
BLACK |
|
Insulation |
XLPE |
|
Certificate |
ISO9001/CCC |
|
Core |
3 Core |
|
Rated voltage |
0.6/1 KV |
|
Standard |
GB12706 |
|
Sheath |
PVC Shealth |
|
MOQ |
1000m |
|
Product name |
Power Cable(NH-YJV22) |
|
Voltage |
0.6/1KV |
|
Size |
3*50mm² |
|
color |
Black |
|
Shield |
not include |
|
Armour |
include |
|
Conductor |
Copper |
|
temperature |
90°C |
|
Standard |
GB/T 12706 |
|
certificate |
CCC/ISO9001 |
