A control cable is a type of electrical cable primarily used for transmitting control signals or for controlling the operation of various systems, machinery, or equipment. These cables are designed to ensure reliable and safe transmission of low-voltage electrical signals in applications where precise control is required, such as in industrial automation, instrumentation, and communication systems.
Home / Product / Control Cable / 450/750V KVV PVC Control Cable for Industrial Mining

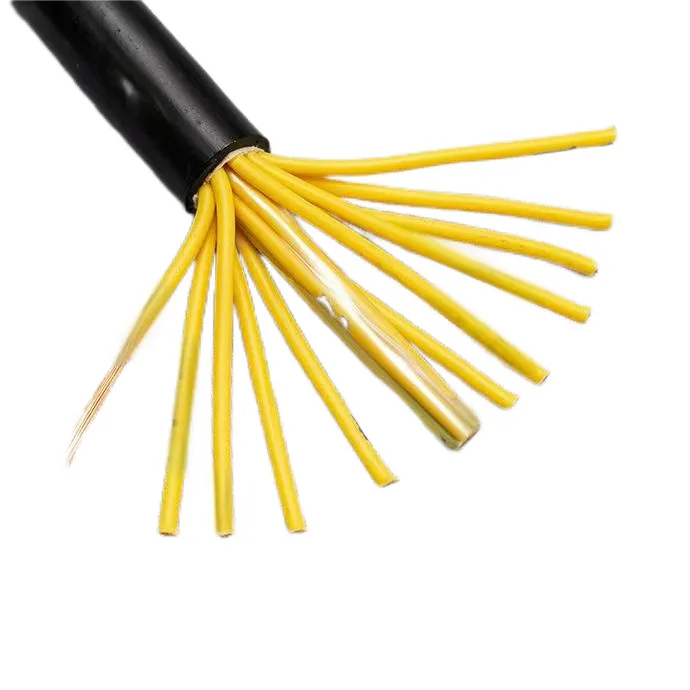

JYXL Brand 450/750V KVV Control Cable 1.5mm 2.5mm Copper Stranded Conductor PVC Insulated Cabling for Industrial Mining
|
Attribute |
Detail |
|
Product Name |
Control Cable |
|
Brand Name |
JYXL |
|
Model Number |
Control Cable (KVV) |
|
Type |
Insulated |
|
Application |
Underground, Energy Resource & Traffic |
|
Conductor Material |
Copper |
|
Conductor Type |
Flexible |
|
Conductor |
99.9% Pure Copper |
|
Insulation Material |
PVC |
|
Insulation |
PVC |
|
Material |
Copper + PVC |
|
Rated Voltage |
300/500V, 450/750V |
|
Voltage |
450/750V |
|
Cross Section |
Customized Size (1.5mm, 2.5mm, 4mm) |
|
Color |
Black, Yellow, White |
|
Standard |
GB/T5023-1997 |
|
MOQ |
100 Meters |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Rated Voltage : 450/750V,0.6/1KV
Conductor Material : Copper
Insulation Material : PVC/XLPE
Working Temperature : 0 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
Application :
For interior electrical installation in a dry or wet environment, particularly for fixed and installation in the
industrial use of the environment without the stress of sustained-release or forcibly guided free on the continuous
reciprocating motion.
|
Type |
Name |
Application |
|
KVV |
Copper conductor PVC insulated and sheathed control cable |
For laying indoors, in trenches, and in ducts for the fixed installation |
|
KVVP |

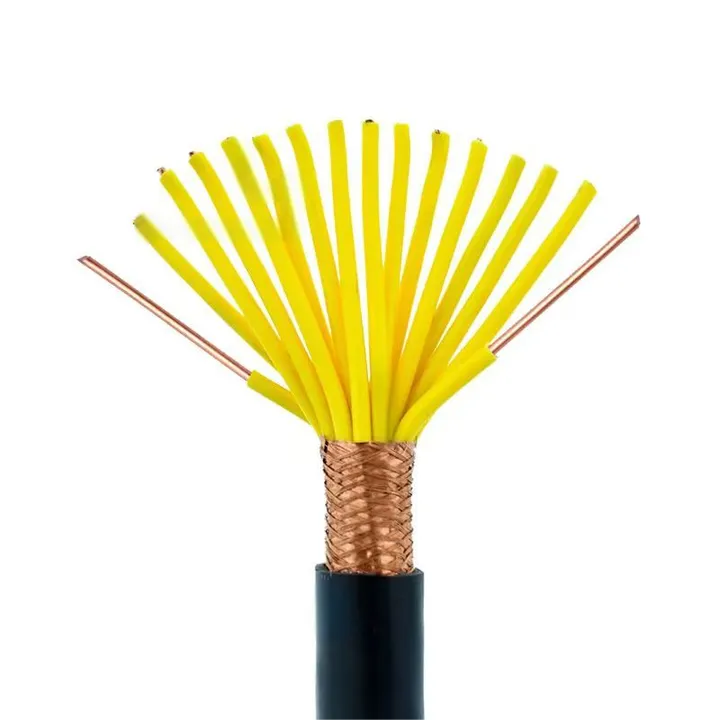

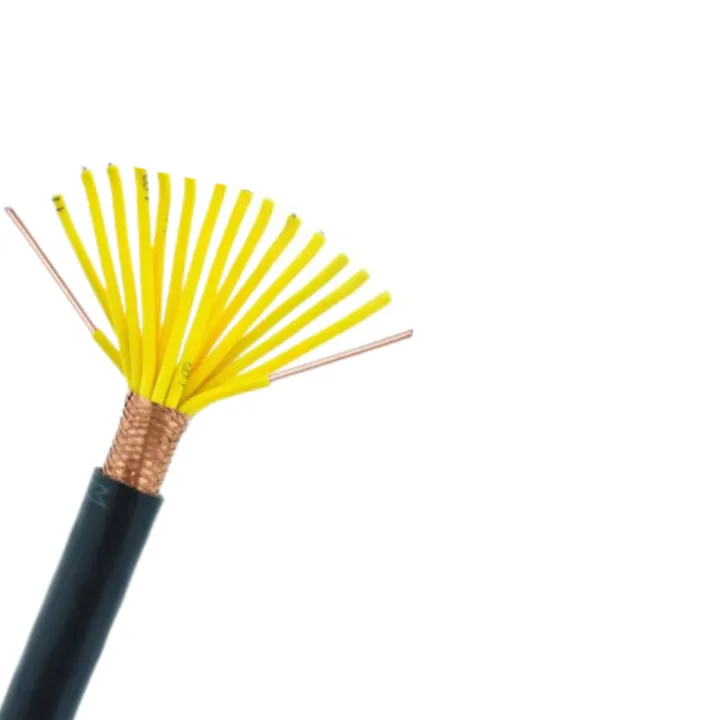

Copper conductor PVC insulated & sheathed copper wire braiding screened control cable |
For laying indoors, in trenches, and in ducts for the fixed installation |
|
KVVP2 |
Copper conductor PVC insulated and sheathed control cable with steel tape shied |
For laying indoors, in trenches, and in ducts for the fixed installation |
|
KVV22 |
Copper conductor PVC insulated and sheathed control cable with steel tape armoured |
For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation |
|
KVVR |
Copper conductor PVC insulated flexible control cable |
For laying indoors, movable and flexible |
|
ZR-KVVP |
Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable |
Fixed laying indoors with capability of moving and screening |
|
ZR-KVV |
Copper conductor PVC insulated and sheathed flame retardant control cable |
For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
|
ZR-KVVP2 |
Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield |
For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
|
ZR-KVV22 |
Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured |
For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear |
|
ZR-KVVR |
Copper conductor PVC insulated and sheathed flame retardant flexible control cable |
For laying indoors, and the cable should be flame-retardant flexible and movable |

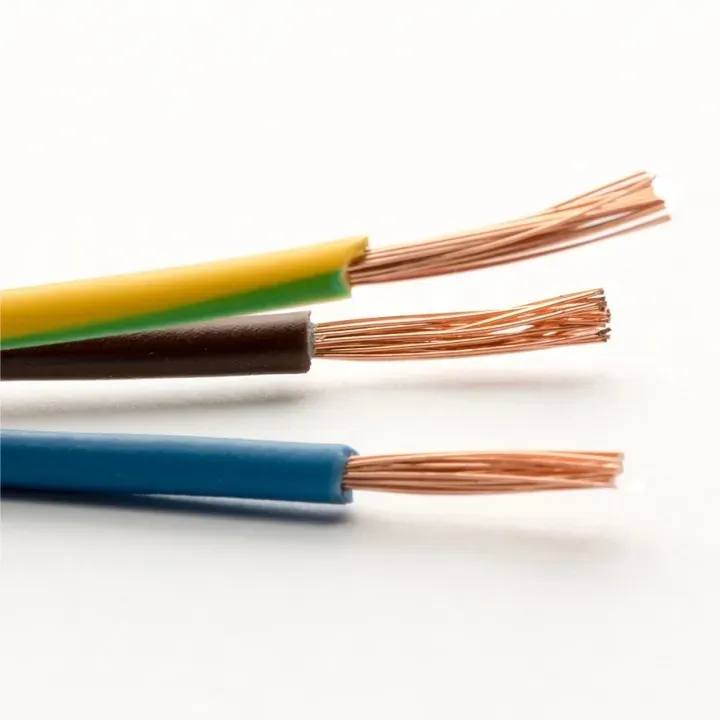

JYXL Brand 450/750V Flexible PVC Cable Multi-Core Stranded Copper Conductor 1.5m
