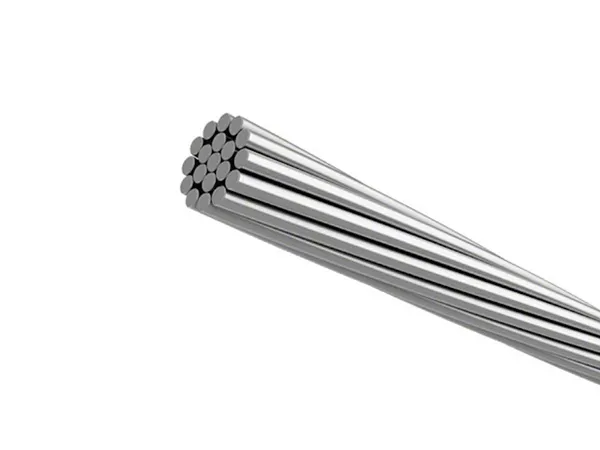

Home / Product / Bare Conductor / All Aluminum Alloy Conductors IEC 61089

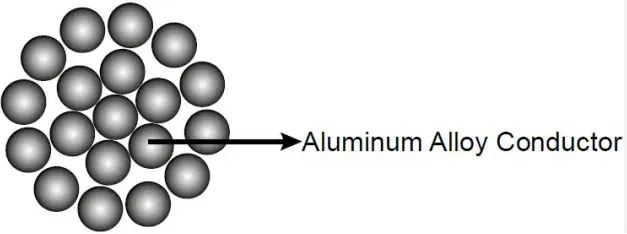

These conductors consist of a core of high-strength aluminum alloy, which offers improved mechanical properties compared to standard aluminum conductors. The alloy construction enhances the conductor's resistance to corrosion, mechanical wear, and extreme weather conditions.
Shape of conductor: Stranded aaac
Sectional area: 16 -1000mm2
Insulation: N/A
Standard: IEC 61089
AAAC conductor is used mainly in urban areas because the spacing is short and the supports are close.All aluminum conductors are made up of one or more strands of aluminum wire depending on the end usage. AAAC conductors are also used extensively in coastal areas because they have a very high degree of corrosion resistance.
| Code Name | Area | Equivalent | Stranding | Overall | Weight | Rated | Maximum DC |
| Actual | Copper Area | Diameter | Strength | Resistance | |||
| mm2 | mm2 | No/mm | mm | kg/km | kN | Ω /km | |
| 16 | 18.6 | 9.8 | 7/1.84 | 5.52 | 50.8 | 6.04 | 1.7896 |
| 25 | 29 | 15.2 | 7/2.30 | 6.9 | 79.5 | 9.44 | 1.1453 |
| 40 | 46.5 | 24.4 | 7/2.91 | 8.73 | 127.1 | 15.1 | 0.7158 |
| 63 | 73.2 | 38.4 | 7/3.65 | 10.95 | 200.2 | 23.06 | 0.4545 |
| 100 | 116 | 61 | 19/2.79 | 14 | 319.3 | 37.76 | 0.2877 |
| 125 | 145 | 76 | 19/3.12 | 15.6 | 399.2 | 47.2 | 0.2302 |
| 160 | 186 | 98 | 19/3.53 | 17.7 | 511 | 58.56 | 0.1798 |
| 200 | 232 | 122 | 19/3.95 | 19.8 | 638.7 | 73.2 | 0.1439 |
| 250 | 290 | 152 | 19/4.41 | 22.1 | 798.4 | 91.5 | 0.1151 |
| 315 | 366 | 192 | 37/3.55 | 24.9 | 1008.4 | 115.29 | 0.0916 |
| 400 | 465 | 244 | 37/4.00 | 28 | 1280.5 | 146.4 | 0.0721 |
| 450 | 523 | 275 | 37/4.24 | 29.7 | 1440.5 | 164.7 | 0.0641 |
| 500 | 581 | 305 | 37/4.47 | 31.3 | 1600.6 | 183 | 0.0577 |
| 560 | 651 | 342 | 61/3.69 | 33.2 | 1795.3 | 204.96 | 0.0516 |
| 630 | 732 | 384 | 61/3.91 | 35.2 | 2019.8 | 230.58 | 0.0458 |
| 710 | 825 | 433 | 61/4.15 | 37.4 | 2276.2 | 259.86 | 0.0407 |
| 800 | 930 | 488 | 61/4.40 | 39.6 | 2564.8 | 292.8 | 0.0361 |
| 900 | 1046 | 549 | 91/3.83 | 42.1 | 2888.3 | 329.4 | 0.0321 |
| 1000 | 1162 | 610 | 91/4.03 | 44.3 | 3209.3 | 366 | 0.0289 |
| 1120 | 1301 | 683 | 91/4.27 | 47 | 3594.5 | 409.92 | 0.0258 |

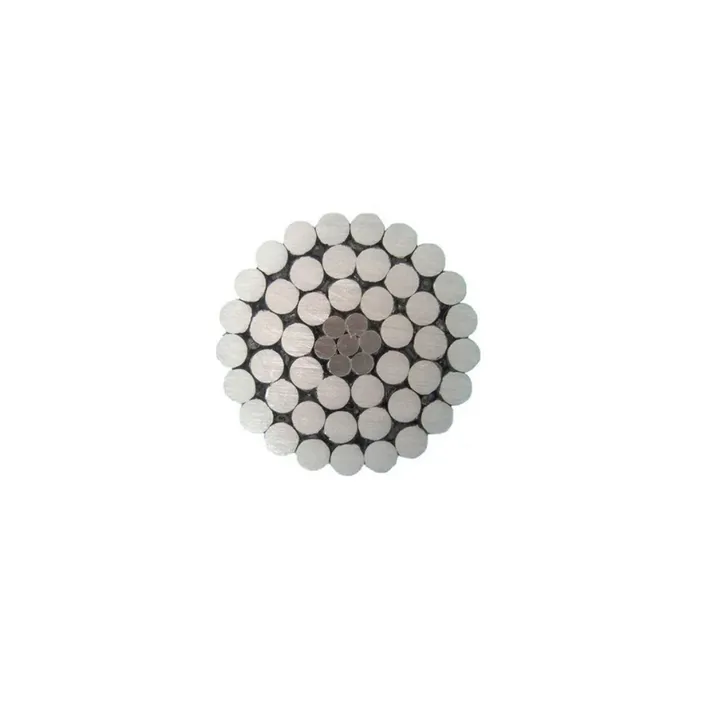

NF C34-125 PHLOX 147.1 Pastel 288 AACSR Overhead Conductor

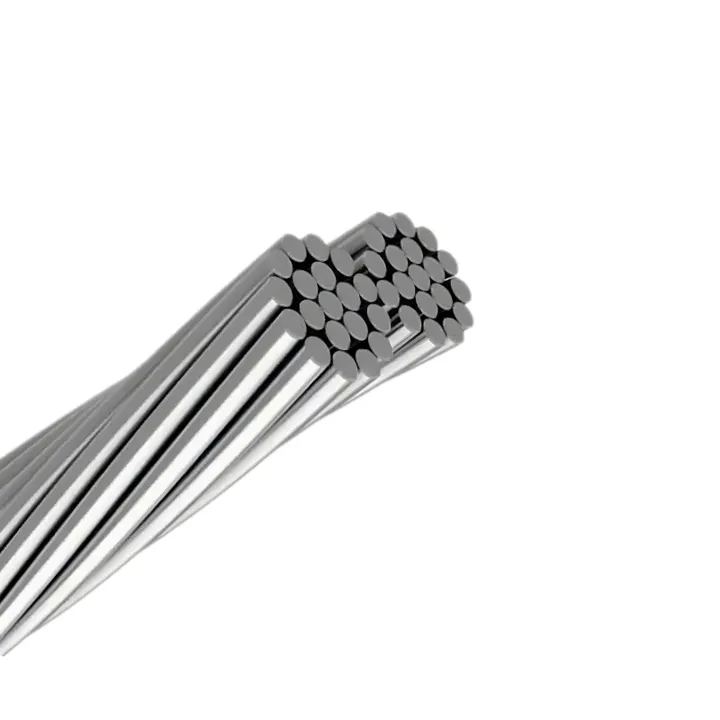

ACSR Robin Penguin Hawk Dove Kingbird Eagle Conductor Bare Overhead Conductor

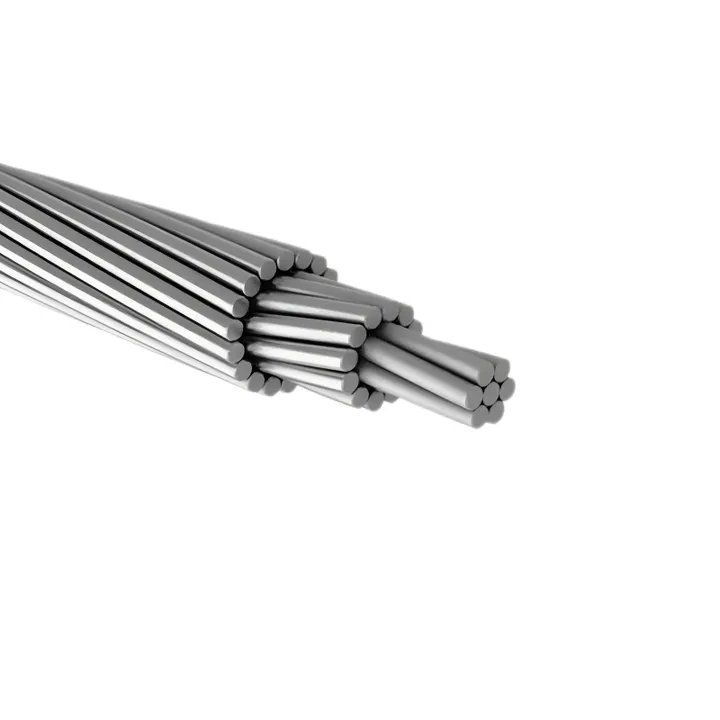

ACSR Cable Manufacturer for Fox SKunk lion Bear BS EN50182

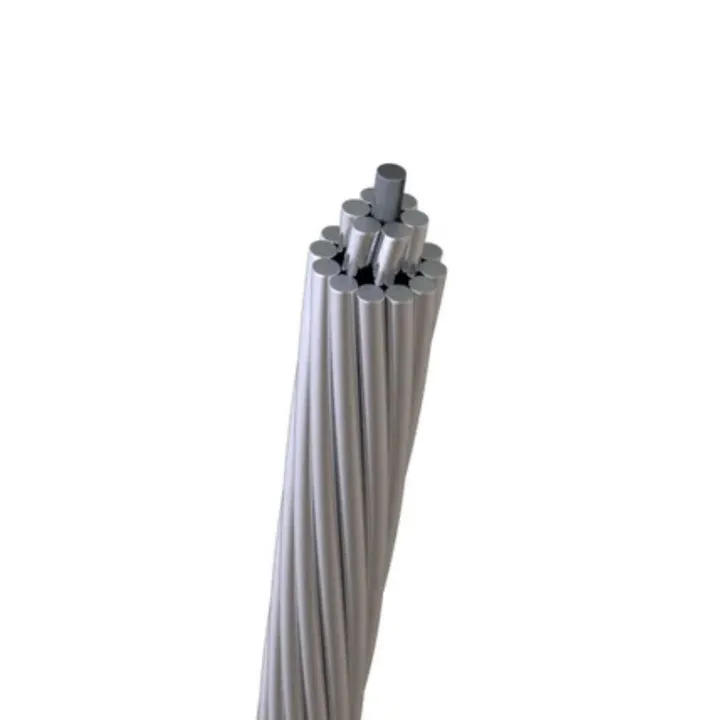

NF C34-125 PHLOX 147.1 Pastel 288 AACSR Overhead Conductor
