Home / Product / Bare Conductor / Fast Transmission ACSR Wire

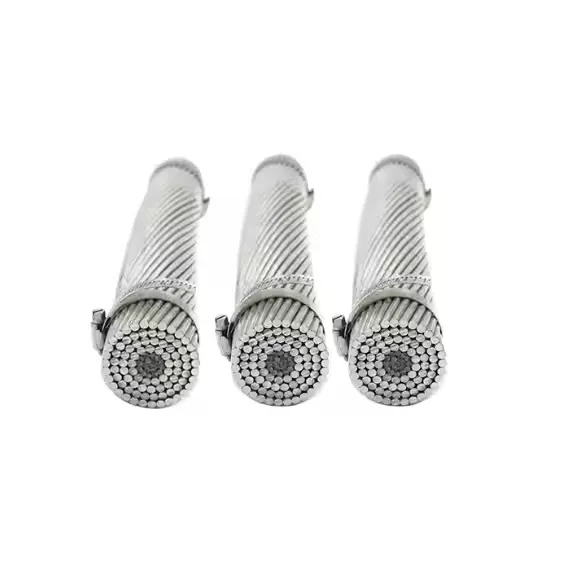

This is an uninsulated and unjacketed conductor designed for a wide range of applications, including power distribution, construction, automotive wiring, industrial settings, power stations, overhead lines, and railways.
Key features include its aluminum conductor with steel reinforcement (implied by "Steel Reinforced" in the product name and model ACSR), and its suitability for low voltage applications. The size listed as "15/95" likely refers to a specific dimension combination relevant to ACSR conductors. It is certified by CCC and adheres to the IEC60502 standard.
This single-core conductor is marketed as Aluminum Conductors Steel Reinforced. The Minimum Order Quantity (MOQ) is 1000 units.
| Attribute | Value |
|---|---|
| Industry-specific attributes | |
| Insulation Material | None |
| Application | Power Distribution, Construction, automotive wiring, Industrial, Power Station, Overhead, Railway |
| Conductor Material | Aluminum |
| Jacket | None |
| Other attributes | |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Model Number | ACSR |
| Type | LOW VOLTAGE |
| Size | 15/95 |
| Product name | Aluminum Conductors Steel Reinforced |
| Conductor | Aluminum |
| Size | 15/95 |
| Certificate | CCC |
| Core | 1 Core |
| Standard | IEC60502 |
| MOQ | 1000 |
|
Nominal
|
Sectional Area
|
No. / Nominal Dia. of Wire
|
Approx. Overall
|
Approx.
|
|||
|
Sectional
|
Dia.
|
Weight
|
|||||
|
Area
|
Aluminum
|
Steel
|
Total
|
Aluminum
|
Steel
|
|
|
|
mm2
|
mm2
|
mm2
|
mm2
|
No./mm
|
No./mm
|
mm
|
kg/km
|
|
10/2
|
10.60
|
1.77
|
12.37
|
6/1.50
|
1/1.50
|
4.50
|
42.8
|
|
16/3
|
16.13
|
2.69
|
18.82
|
6/1.85
|
1/1.85
|
5.55
|
65.1
|
|
35/6
|
34.86
|
5.81
|
40.67
|
6/2.72
|
1/2.72
|
8.16
|
140.8
|
|
50/8
|
48.25
|
8.04
|
56.30
|
6/3.20
|
1/3.20
|
9.60
|
194.8
|
|
50/30
|
50.73
|
29.59
|
80.32
|
12/2.32
|
7/2.32
|
11.6
|
371.1
|
|
70/10
|
68.05
|
11.34
|
79.39
|
6/3.80
|
1/3.80
|
11.4
|
274.8
|
|
70/40
|
69.73
|
40.67
|
110.40
|
12/2.72
|
7/2.72
|
13.6
|
510.2
|
|
95/15
|
94.39
|
15.33
|
109.73
|
26/2.15
|
7/2.15
|
13.6
|
380.2
|
|
95/20
|
95.14
|
18.82
|
113.96
|
7/4.16
|
7/4.16
|
13.9
|
408.2
|
|
95/55
|
96.51
|
56.30
|
152.81
|
12/3.20
|
7/3.20
|
16.0
|
706.1
|
|
120/7
|
118.89
|
6.61
|
125.50
|
18/2.90
|
1/2.90
|
14.5
|
378.5
|
|
120/20
|
115.67
|
18.82
|
134.49
|
26/2.38
|
7/2.38
|
15.1
|
466.1
|
|
120/25
|
122.48
|
24.25
|
146.73
|
7/4.72
|
7/4.72
|
15.7
|
525.7
|
|
120/70
|
122.15
|
71.25
|
193.40
|
12/3.60
|
7/3.60
|
18.0
|
893.7
|
|
150/8
|
144.76
|
8.04
|
152.80
|
18/3.20
|
1/3.20
|
16.0
|
460.9
|
|
150/20
|
145.68
|
18.82
|
164.50
|
24/2.78
|
7/1.85
|
16.7
|
548.5
|
|
150/25
|
148.86
|
24.25
|
173.11
|
26/2.70
|
7/2.15
|
17.1
|
600.1
|
|
150/35
|
147.26
|
34.36
|
181.62
|
30/2.50
|
7/2.50
|
17.5
|
675
|
|
185/10
|
183.22
|
10.18
|
193.40
|
18/3.60
|
1/3.60
|
18.0
|
583.3
|
|
185/25
|
187.03
|
24.25
|
211.28
|
24/3.15
|
7/2.10
|
18.9
|
704.9
|
|
185/30
|
181.34
|
29.59
|
210.93
|
26/2.98
|
7/2.32
|
18.9
|
731.4
|
|
185/45
|
184.73
|
43.10
|
227.83
|
30/2.80
|
7/2.80
|
19.6
|
846.7
|
|
210/10
|
204.14
|
11.34
|
215.48
|
18/3.80
|
1/3.80
|
19.0
|
649.9
|
|
210/25
|
209.02
|
27.10
|
236.12
|
24/3.33
|
7/2.22
|
20.0
|
787.8
|
|
210/35
|
211.73
|
34.36
|
246.09
|
26/3.22
|
7/2.50
|
20.4
|
852.5
|
|
210/50
|
209.24
|
48.82
|
258.06
|
30/2.98
|
7/2.98
|
20.9
|
959
|
|
240/30
|
244.29
|
31.67
|
275.96
|
24/3.60
|
7/2.40
|
21.6
|
920.7
|
|
240/40
|
238.84
|
38.90
|
277.74
|
26/3.42
|
7/2.66
|
21.7
|
962.8
|
|
240/55
|
241.27
|
56.30
|
297.57
|
30/3.20
|
7/3.20
|
22.4
|
1105.8
|
|
300/15
|
296.88
|
15.33
|
312.21
|
42/3.00
|
7/1.67
|
23.0
|
938.7
|
|
300/20
|
303.42
|
20.91
|
324.32
|
45/2.93
|
7/1.95
|
23.4
|
1000.8
|
|
300/25
|
306.21
|
27.10
|
333.31
|
48/2.85
|
7/2.22
|
23.8
|
1057
|
|
300/40
|
300.09
|
38.90
|
338.99
|
24/3.99
|
7/2.66
|
23.9
|
1131
|
|
300/50
|
299.54
|
48.82
|
348.37
|
26/3.83
|
7/2.98
|
24.3
|
1207.7
|
|
300/70
|
305.36
|
71.25
|
376.61
|
30/3.60
|
7/3.60
|
25.2
|
1399.6
|
|
400/20
|
406.40
|
20.91
|
427.31
|
42/3.51
|
7/1.95
|
26.9
|
1284.3
|
|
400/25
|
391.91
|
27.10
|
419.01
|
45/3.33
|
7/2.22
|
26.6
|
1293.5
|
|
400/35
|
390.88
|
34.36
|
425.24
|
48/3.22
|
7/2.50
|
26.8
|
1347.5
|
|
400/65
|
398.94
|
65.06
|
464.00
|
26/4.42
|
7/3.44
|
28.0
|
1608.7
|
|
400/95
|
407.75
|
93.27
|
501.02
|
30/4.16
|
19/2.50
|
29.1
|
1856.7
|
|
500/45
|
488.58
|
43.10
|
531.68
|
48/3.60
|
7/2.80
|
30.0
|
1685.5
|
|
630/55
|
639.92
|
56.30
|
696.22
|
48/4.12
|
7/3.20
|
34.3
|
2206.4
|
|
800/55
|
814.30
|
56.30
|
870.60
|
45/4.80
|
7/3.20
|
38.4
|
2687.5
|
|
800/70
|
808.15
|
71.25
|
879.40
|
48/4.63
|
7/3.60
|
38.6
|
2887.6
|
