AAC/AAAC 279-AL1 381-AL1 Conductor

All Aluminium Conductors 35mm2 50mm2 70mm2 AAC AAAC 279-AL1 381-AL1 Conductor

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	AAC/AAAC
Model Number	AAC
Brand Name	JYXL
Type	LOW VOLTAGE
Application	Overhead
Core	single Core
Conductor	Aluminum
Conductor Material	Aluminum
Insulation Material	No
Jacket	No, no sheath
Working Temperature	70°C, 90°C
Rated Voltage	12 V, 6 KV, 15 kV, 0.6 kV, 3.6 kV, 0.6/1Kv
Rated Current	16A, 30A
Size	single core
Certificate	ISO9001/ISO14001/CCC
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Single Package Size	1X1X1 cm
Single Gross Weight	1.000 KG

PRODUCT SHOW

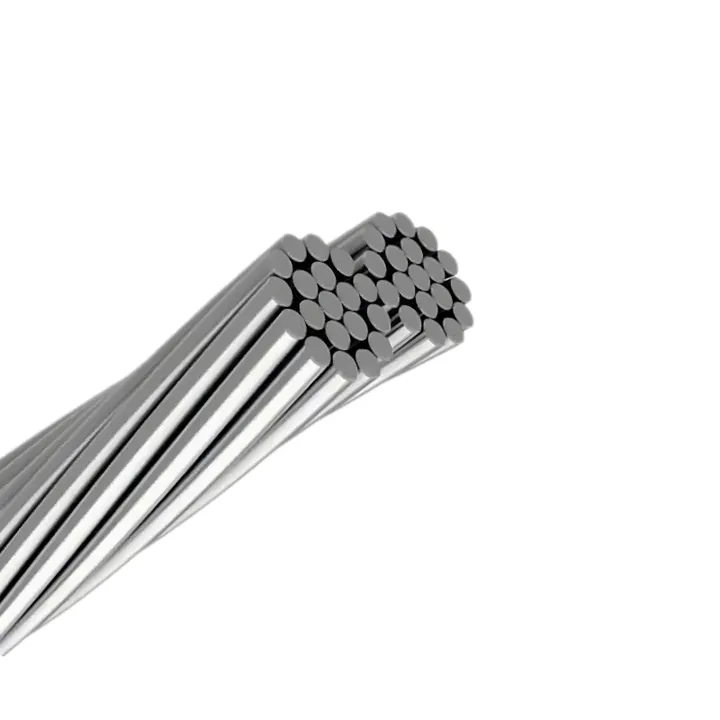

IEC 61089 Standard All Aluminum Conductor AAC Construction

Concentric lay stranded Aluminium Conductor ( AAC) is manufactured fromelectrolyticallyrefined aluminium with a minimum purity of 99.7%. and made up of oneor morestrandsof hard drawn 1350 aluminum alloy.

IEC 61089 Standard All Aluminum Conductor AAC

Application:

AAC conductor is also known as aluminum stranded conductor which areusedinurbanareas where spans are usually short but high conductivity is required andareincommonuse on overhead lines for in low, medium and high voltage. The excellent corrosionresistance of aluminium has made AAC a conductor of choice in coastal areas.

Product Paramenters

IEC 61089 Standard All Aluminum Conductor AAC

Code	Nominal	Stranding	Overall	Weight	Rated	Electrical	Current
	Area	Stranding	Diameter	Weight	Strength	Resistance	Rating*
	mm²	NO.×mm	mm	kg/km	kN	Ω/km	A
10	10	7/1.35	4.05	27.4	1.95	2.8633	62
16	16	7/1.71	5.13	43.8	3.04	1.7896	84
25	25	7/2.13	6.39	68.4	4.5	1.1453	110
40	40	7/2.70	8.1	109.4	6.8	0.7158	147
63	63	7/3.39	10.17	172.3	10.39	0.4545	195
100	100	19/2.59	12.95	274.8	17	0.2877	259
125	125	19/2.89	14.45	343.6	21.25	0.2302	297
160	160	19/3.27	16.35	439.8	26.4	0.1798	345
200	200	19/3.66	18.3	549.7	32	0.1439	396
250	250	19/4.09	20.45	687.1	40	0.1151	454
315	315	37/3.29	23.03	867.9	51.97	0.0916	522
400	400	37/3.71	25.97	1102	64	0.0721	603
450	450	37/3.94	27.58	1239.8	72	0.0641	647
500	500	37/4.15	29.05	1377.6	80	0.0577	688
560	560	37/4.39	30.73	1542.9	89.6	0.0515	736
630	630	61/3.63	32.67	1738.3	100.8	0.0458	789
710	710	61/3.85	34.65	1959.1	113.6	0.0407	845
800	800	61/4.09	36.81	2207.4	128	0.0361	905
900	900	61/4.33	38.97	2483.3	144	0.0321	967
1000	1000	61/4.57	41.13	2759.2	160	0.0289	1026
1120*	1120	91/3.96	43.56	3093.5	179.2	0.0258	1091
1250*	1250	91/4.18	45.98	3452.6	200	0.0231	1157
1400*	1400	91/4.43	48.73	3866.9	224	0.0207	1226
1500*	1500	91/4.58	50.38	4143.1	240	0.0193	1270
