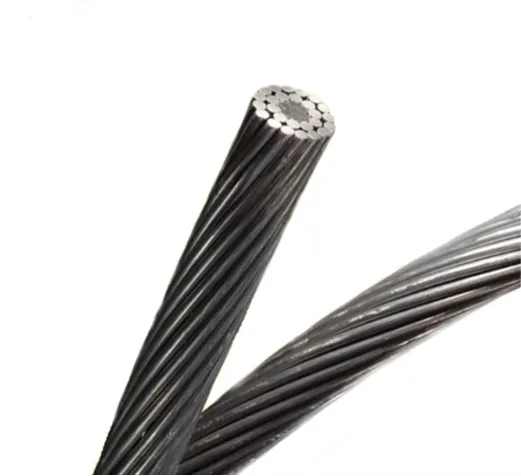

95/15 Aluminum Conductor Steel Wire Reinforced ACSR Insulated Overhead Conductor
|
Insulation Material |
None |
|
Application |
Construction |
|
Conductor Material |
Aluminum Steel |
|
Jacket |
None |
|
Place of Origin |
Henan, China |
|
Rated Voltage |
/ |
|
Rated Current |
/ |
|
Brand Name |
JYXL |
|
Model Number |
ACSR |
|
Type |
LOW VOLTAGE |
|
Size |
15/95 |
|
Product name |
Aluminum Conductors Steel Reinforced |
|
Conductor |
Aluminum |
|
Size |
15/95 |
|
Certificate |
CCC |
|
Core |
1 Core |
|
Standard |
IEC60502 |
|
MOQ |
1000 |
ACSR Conductor Description:
ACSR has simple structure, convenient installation and maintenance, low budget cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys . It has good electrical conductivity and sufficient mechanical strength, high tensile strength etc. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

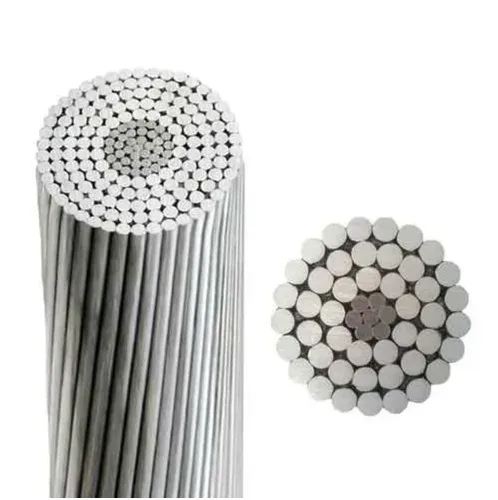

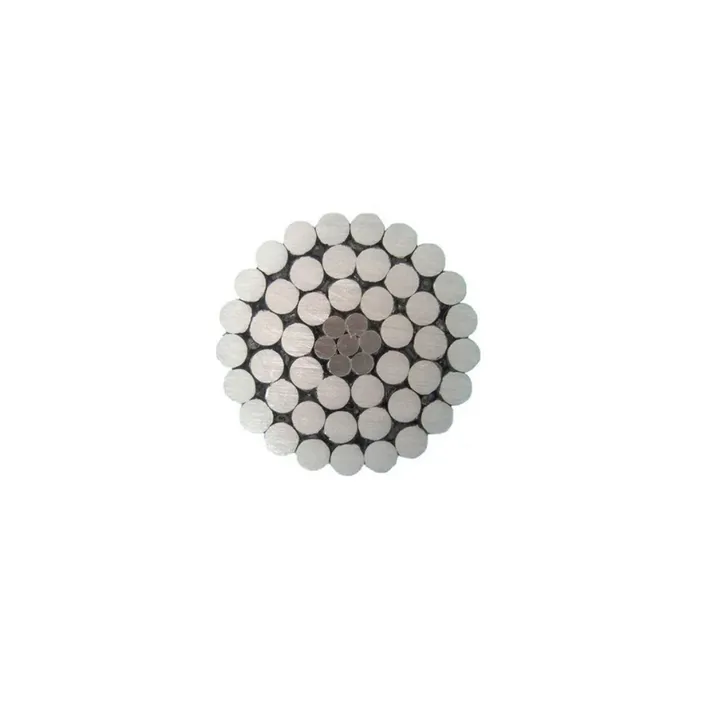

ACSR Conductor Conductor Section:
ACSR Conductor Application:
Suitable for transmission lines of different voltage levels. It can also be laid in rivers, canyons and places with special geographical features.
ACSR Conductor Characteristics:
1. Simple structure, easy installation and maintenance, low line cost, large transmission capacity
2. Excellent conductivity
3. The cable has an overall high tensile strength
|
Nominal |
Sectional Area |
No. / Nominal Dia. of Wire |
Approx. Overall |
Approx. |
|||
|
Sectional |
Dia. |
Weight |
|||||
|
Area |
Aluminum |
Steel |
Total |
Aluminum |
Steel |
|
|
|
mm2 |
mm2 |
mm2 |
mm2 |
No./mm |
No./mm |
mm |
kg/km |
|
10/2 |
10.60 |
1.77 |
12.37 |
6/1.50 |
1/1.50 |
4.50 |
42.8 |
|
16/3 |
16.13 |
2.69 |
18.82 |
6/1.85 |
1/1.85 |
5.55 |
65.1 |
|
35/6 |
34.86 |
5.81 |
40.67 |
6/2.72 |
1/2.72 |
8.16 |
140.8 |
|
50/8 |
48.25 |
8.04 |
56.30 |
6/3.20 |
1/3.20 |
9.60 |
194.8 |
|
50/30 |
50.73 |
29.59 |
80.32 |
12/2.32 |
7/2.32 |
11.6 |
371.1 |
|
70/10 |
68.05 |
11.34 |
79.39 |
6/3.80 |
1/3.80 |
11.4 |
274.8 |
|
70/40 |
69.73 |
40.67 |
110.40 |
12/2.72 |
7/2.72 |
13.6 |
510.2 |
|
95/15 |
94.39 |
15.33 |
109.73 |
26/2.15 |
7/2.15 |
13.6 |
380.2 |
|
95/20 |
95.14 |
18.82 |
113.96 |
7/4.16 |
7/4.16 |
13.9 |
408.2 |
|
95/55 |
96.51 |
56.30 |
152.81 |
12/3.20 |
7/3.20 |
16.0 |
706.1 |
|
120/7 |
118.89 |
6.61 |
125.50 |
18/2.90 |
1/2.90 |
14.5 |
378.5 |
|
120/20 |
115.67 |
18.82 |
134.49 |
26/2.38 |
7/2.38 |
15.1 |
466.1 |
|
120/25 |
122.48 |
24.25 |
146.73 |
7/4.72 |
7/4.72 |
15.7 |
525.7 |
|
120/70 |
122.15 |
71.25 |
193.40 |
12/3.60 |
7/3.60 |
18.0 |
893.7 |
|
150/8 |
144.76 |
8.04 |
152.80 |
18/3.20 |
1/3.20 |
16.0 |
460.9 |
|
150/20 |
145.68 |
18.82 |
164.50 |
24/2.78 |
7/1.85 |
16.7 |
548.5 |
|
150/25 |
148.86 |
24.25 |
173.11 |
26/2.70 |
7/2.15 |
17.1 |
600.1 |
|
150/35 |
147.26 |
34.36 |
181.62 |
30/2.50 |
7/2.50 |
17.5 |
675 |
|
185/10 |
183.22 |
10.18 |
193.40 |
18/3.60 |
1/3.60 |
18.0 |
583.3 |
|
185/25 |
187.03 |
24.25 |
211.28 |
24/3.15 |
7/2.10 |
18.9 |
704.9 |
|
185/30 |
181.34 |
29.59 |
210.93 |
26/2.98 |
7/2.32 |
18.9 |
731.4 |
|
185/45 |
184.73 |
43.10 |
227.83 |
30/2.80 |
7/2.80 |
19.6 |
846.7 |
|
210/10 |
204.14 |
11.34 |
215.48 |
18/3.80 |
1/3.80 |
19.0 |
649.9 |
|
210/25 |
209.02 |
27.10 |
236.12 |
24/3.33 |
7/2.22 |
20.0 |
787.8 |
|
210/35 |
211.73 |
34.36 |
246.09 |
26/3.22 |
7/2.50 |
20.4 |
852.5 |
|
210/50 |
209.24 |
48.82 |
258.06 |
30/2.98 |
7/2.98 |
20.9 |
959 |
|
240/30 |
244.29 |
31.67 |
275.96 |
24/3.60 |
7/2.40 |
21.6 |
920.7 |
|
240/40 |
238.84 |
38.90 |
277.74 |
26/3.42 |
7/2.66 |
21.7 |
962.8 |
|
240/55 |
241.27 |
56.30 |
297.57 |
30/3.20 |
7/3.20 |
22.4 |
1105.8 |
|
300/15 |
296.88 |
15.33 |
312.21 |
42/3.00 |
7/1.67 |
23.0 |
938.7 |
|
300/20 |
303.42 |
20.91 |
324.32 |
45/2.93 |
7/1.95 |
23.4 |
1000.8 |
|
300/25 |
306.21 |
27.10 |
333.31 |
48/2.85 |
7/2.22 |
23.8 |
1057 |
|
300/40 |
300.09 |
38.90 |
338.99 |
24/3.99 |
7/2.66 |
23.9 |
1131 |
|
300/50 |
299.54 |
48.82 |
348.37 |
26/3.83 |
7/2.98 |
24.3 |
1207.7 |
|
300/70 |
305.36 |
71.25 |
376.61 |
30/3.60 |
7/3.60 |
25.2 |
1399.6 |
|
400/20 |
406.40 |
20.91 |
427.31 |
42/3.51 |
7/1.95 |
26.9 |
1284.3 |
|
400/25 |
391.91 |
27.10 |
419.01 |
45/3.33 |
7/2.22 |
26.6 |
1293.5 |
|
400/35 |
390.88 |
34.36 |
425.24 |
48/3.22 |
7/2.50 |
26.8 |
1347.5 |
|
400/65 |
398.94 |
65.06 |
464.00 |
26/4.42 |
7/3.44 |
28.0 |
1608.7 |
|
400/95 |
407.75 |
93.27 |
501.02 |
30/4.16 |
19/2.50 |
29.1 |
1856.7 |
|
500/45 |
488.58 |
43.10 |
531.68 |
48/3.60 |
7/2.80 |
30.0 |
1685.5 |
|
630/55 |
639.92 |
56.30 |
696.22 |
48/4.12 |
7/3.20 |
34.3 |
2206.4 |
|
800/55 |
814.30 |
56.30 |
870.60 |
45/4.80 |
7/3.20 |
38.4 |
2687.5 |
|
800/70 |
808.15 |
71.25 |
879.40 |
48/4.63 |
7/3.60 |
38.6 |
2887.6 |
