ACSR Overhead Line Conductor

Overhead Line Aluminum Conductor Steel Reinforced ACSR Conductor

Send Email Get Best Price

Details

Key Attributes

Product Specifications
Application	Construction
Conductor Material	Aluminum
Conductor	Aluminum Conductor Steel Reinforced
Insulation Material	/
Jacket	Non-sheathing Bare
Type	Overhead
Usage	Overhead Transmission Lines
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	ACSR conductor-IEC 61089 Standard
Product Name	Overhead Line Aluminum Conductor Steel Reinforced ACSR Conductor
Standard	BS EN 50182, IEC 61089, ASTM B 232, DIN 48204, GB/T 1179, AS3607
Certificate	IEC
MOQ	1000
Package	Wooden Drum
Service	ODM OEM Accepted

Packaging and Delivery

Selling Units

Single item

PRODUCT SHOW

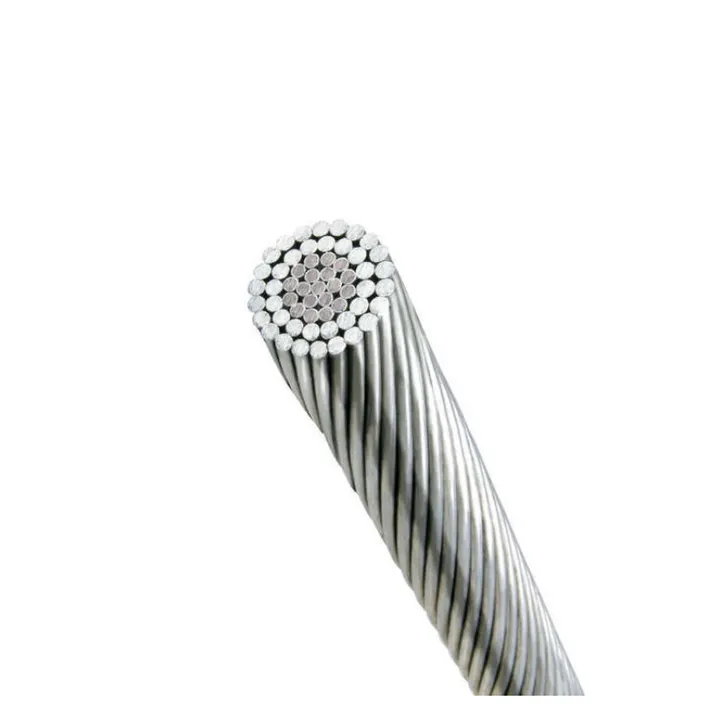

Aluminum Conductor Steel Reinforced ACSR Conductor

ACSR Conductor Description：

ACSR has simple structure, convenient installation and maintenance, low budget cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys . It has good electrical conductivity and sufficient mechanical strength, high tensile strength etc. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

ACSR Conductor Conductor Section:

ACSR Conductor Application:

Suitable for transmission lines of different voltage levels. It can also be laid in rivers, canyons and places with special geographical features. ACSR Conductor Characteristics: 1. Simple structure, easy installation and maintenance, low line cost, large transmission capacity 2. Excellent conductivity 3. The cable has an overall high tensile strength

Product Paramenters

ACSR Conductor IEC 61089 Standard

Code Number	Area			Number of wires		Wire dia.		Diameter
Code Number	Area			Number of wires		Wire dia.		Diameter
	Alum	Steel	Total			Alum	Steel	Core	Con.
	mm 2	mm 2	mm 2	Al	St	mm	mm	mm	mm
16	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53
25	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91
40	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74
63	63	10.5	73.5	6	1	3.66	3.66	3.66	11
100	100	16.7	117	6	1	4.61	4.61	4.61	13.8
125	125	6.94	132	18	1	2.97	2.97	2.97	14.9
125	125	20.4	145	26	7	2.47	1.92	5.77	15.7
160	160	8.89	169	18	1	3.36	3.36	3.36	16.8
160	160	26.1	186	26	7	2.8	2.18	6.53	17.7
200	200	11.1	211	18	1	3.76	3.76	3.76	18.8
200	200	32.6	233	26	7	3.13	2.43	7.3	19.8
250	250	24.6	275	22	7	3.8	2.11	6.34	21.6
250	250	40.7	291	26	7	3.5	2.72	8.16	22.2
315	315	21.8	337	45	7	2.99	1.99	5.97	23.9
315	315	51.3	366	26	7	3.93	3.05	9.16	24.9
400	400	27.7	428	45	7	3.36	2.24	6.73	26.9
400	400	51.9	452	54	7	3.07	3.07	9.21	27.6
450	450	31.1	481	45	7	3.57	2.38	7.14	28.5
450	450	58.3	508	54	7	3.26	3.26	9.77	29.3
500	500	34.6	535	45	7	3.76	2.51	7.52	30.1
500	500	64.8	565	54	7	3.43	3.43	10.3	30.9
560	560	38.7	599	45	7	3.98	2.65	7.96	31.8
560	560	70.9	631	54	19	3.63	2.18	10.9	32.7
630	630	43.6	674	45	7	4.22	2.81	8.44	33.8
630	630	79.8	710	54	19	3.85	2.31	11.6	34.7
710	710	49.1	759	45	7	4.48	2.99	8.96	35.9
710	710	89.9	800	54	1	4.09	2.45	12.3	36.8
800	800	34.6	835	72	7	3.76	2.51	7.52	37.6
800	800	66.7	867	84	7	3.48	3.48	10.4	38.3
800	800	101	901	54	19	4.34	2.61	13	39.1
900	900	38.9	939	72	7	3.99	2.66	7.98	39.9
900	900	75	975	84	7	3.69	3.69	11.1	40.6
1000	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1
1120	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5
1120	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3
1250	1250	102	1352	84	19	4.35	2.61	13.1	47.9
1250	1250	52.8	1303	72	19	4.7	1.88	9.4	47
