ACSR Conductor (BS 215-2) - Animal Series

ACSR Conductor Mole Squirrel Gopher Weasel Fox Aluminum Conductor Steel Reinforced BS 215 Part 2

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	Overhead Transmission Line Conductor ACSR
Model Number	ACSR conductor-BS 215 Part 2 Standard
Type	Overhead
Application	Construction, Overhead Transmission Lines
Conductor Material	Aluminum
Conductor	Aluminum Conductor Steel Reinforced
Insulation Material	/ (Not applicable for bare conductor)
Jacket	/ (Not applicable for bare conductor), Non-sheathing Bare
Standard	BS EN 50182, IEC 61089, ASTM B 232, DIN 48204, GB/T 1179, AS3607
Certificate	IEC
MOQ	1000
Place of Origin	Henan, China
Brand Name	JYXL
Package	Wooden Drum
Usage	Overhead Transmission Lines
Service	ODM OEM Accepted

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

PRODUCT SHOW

ACSR Conductor Description:

ACSR has simple structure, convenient installation and maintenance, low budget cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys . It has good electrical conductivity and sufficient mechanical strength, high tensile strength etc. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

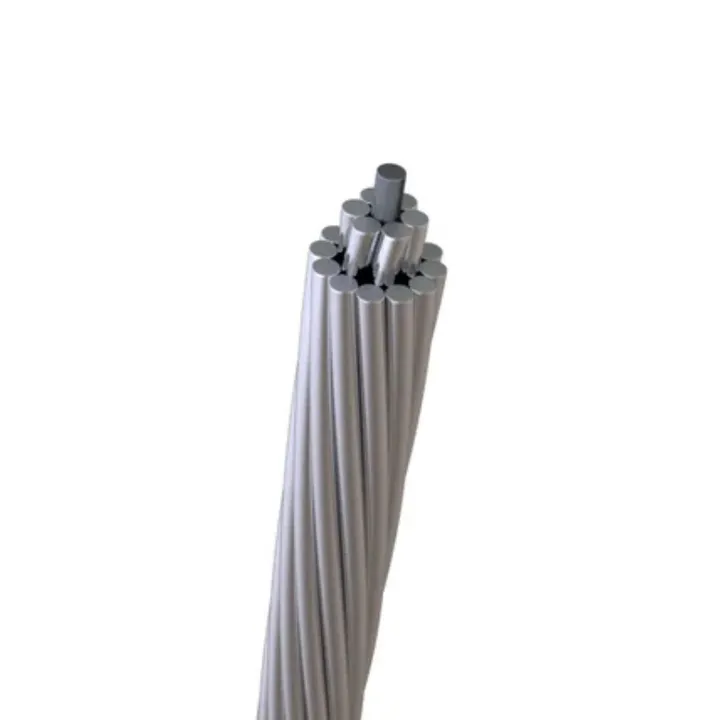

ACSR Conductor Conductor Section:

Application:

Suitable for transmission lines of different voltage levels. It can also be laid in rivers, canyons and places with special geographical features. Characteristics: 1. Simple structure, easy installation and maintenance, low line cost, large transmission capacity 2. Excellent conductivity 3. The cable has an overall high tensile strength

Product Paramenters

ACSR Conductor BS 215 Part 2 Standard

Code Name	Area				Stranding		Approx.
	Area				Stranding		Overall
	Nominal	Alum.	Steel	Total	Alum.	Steel	Diameter
	Alum.	Alum.	Steel	Total	Alum.	Steel
	mm2	mm2	mm2	mm2	mm	mm	mm
Mole	10	10.62	1.77	12.39	6/1.50	1/1.50	4.5
Squirrel	20	20.94	3.49	24.43	6/2.11	1/2.11	6.33
Gopher	25	26.25	4.37	30.62	6/2.36	1/2.36	7.08
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	7.77
Fox	35	36.66	6.11	42.77	6/2.79	1/2.79	8.37
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	9
Rabbit	50	52.88	8.82	61.7	6/3.35	1/3.35	10.05
Mink	60	63.18	10.53	73.71	6/3.66	1/3.66	10.98
Skunk	60	63.27	36.93	100.3	12/2.59	7/2.59	12.95
Beaver	70	74.82	12.47	87.29	6/3.99	1/3.99	11.97
Horse	70	73.37	42.8	116.17	12/2.79	7/2.79	13.95
Racoon	75	79.2	13.2	92.4	6/4.10	1/4.10	12.3
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	12.66
Cat	90	95.4	15.9	111.3	6/4.50	1/4.50	13.5
Hare	100	105	17.5	122.5	6/4.72	1/4.72	14.16
Dog	100	105	13.5	118.5	6/4.72	7/1.57	14.15
Hyena	100	105.8	20.44	126.2	7/4.39	7/1.93	14.57
Leopard	125	131.3	16.8	148.1	6/5.28	7/1.75	15.81
Coyote	125	132.1	20.1	152.2	26/2.54	7/1.91	15.89
Cougar	125	130.3	7.25	137.5	18/3.05	1/3.05	15.25
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	16.52
Wolf	150	158	36.9	194.9	30/2.59	7/2.59	18.13
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	16.75
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	19.53
Caracal	175	184.2	10.3	194.5	18/3.61	1/3.61	18.05
Panther	200	212	49.5	261.5	30/3.00	7/3.00	21
Lion	225	238.5	55.6	294.2	30/3.18	7/3.18	22.26
Bear	250	264	61.6	325.6	30/3.35	7/3.35	23.45
Goat	300	324.3	75.7	400	30/3.71	7/3.71	25.97
Sheep	350	374.1	87.3	461.4	30/3.99	7/3.99	27.93
Antelope	350	373.1	48.4	421.5	54/2.97	7/2.97	26.73
Bison	350	381.8	49.5	431.3	54/3.00	7/3.00	27
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	19.3
Deer	400	429.3	100.2	529.5	30/4.27	7/4.27	29.89
Zebra	400	428.9	55.6	484.5	54/3.18	7/3.18	28.62
Elk	450	477	111.3	588.3	30/4.50	7/4.50	31.5
Camel	450	475.2	61.6	536.8	54/3.35	7/3.35	30.15
Moose	500	528.7	68.5	597.2	54/3.53	7/3.53	31.77
