Overhead ACSR Bare Cable (185/240mm)

Overhead Cable Aluminum Steel Core Conductor 185mm 240mm ACSR Bare Cable

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes

Insulation Material	NO
Application	Overhead
Conductor Material	Aluminum Steel
Jacket	NO

Other attributes

Place of Origin	Henan, China
Working Temperature	90°C, 70°C
Rated Voltage	12 V, 6 KV, 15 kV, 0.6 kV, 20 kV, 3.6 kV, 1 kV
Rated Current	16A, 30A
Brand Name	JYXL
Model Number	ACSR
Type	LOW VOLTAGE
Size	single core
Product name	ACSR
Conductor	Aluminum Conductor Steel Reinforced
Certificate	ISO9001/ISO14001 /CCC
Rated voltage	0.6/1Kv
Core	single Core
Jacket	No

Packaging and delivery

Selling units	Single item
Single package size	1X1X1 cm
Single gross weight	1.000 kg

PRODUCT SHOW

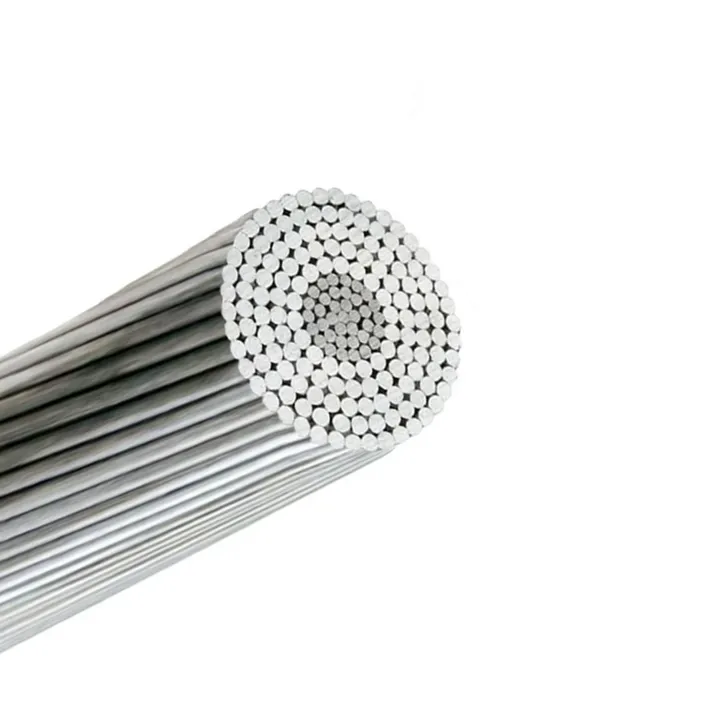

Aluminum Conductor Steel Reinforced ACSR Conductor

ACSR Conductor Description:

ACSR has simple structure, convenient installation and maintenance, low budget cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys . It has good electrical conductivity and sufficient mechanical strength, high tensile strength etc. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

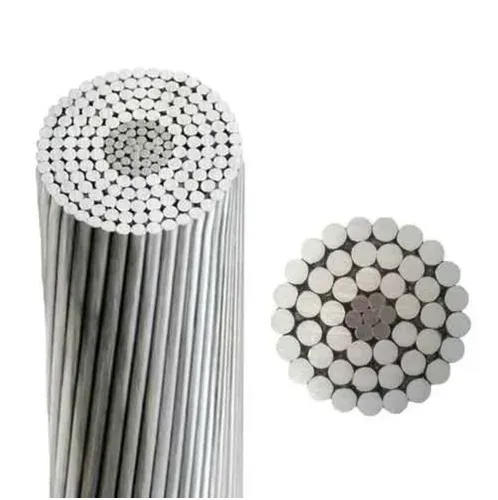

ACSR Conductor Conductor Section:

ACSR Conductor Application:

Suitable for transmission lines of different voltage levels. It can also be laid in rivers, canyons and places with special geographical features. ACSR Conductor Characteristics: 1. Simple structure, easy installation and maintenance, low line cost, large transmission capacity 2. Excellent conductivity 3. The cable has an overall high tensile strength

Product Paramenters

ACSR Conductor GB/T 1179 Standard

Nominal	Sectional Area			No. / Nominal Dia. of Wire		Approx. Overall	Approx.
Sectional	Sectional Area			No. / Nominal Dia. of Wire		Dia.	Weight
Area	Aluminum	Steel	Total	Aluminum	Steel
mm2	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km
10/2	10.60	1.77	12.37	6/1.50	1/1.50	4.50	42.8
16/3	16.13	2.69	18.82	6/1.85	1/1.85	5.55	65.1
35/6	34.86	5.81	40.67	6/2.72	1/2.72	8.16	140.8
50/8	48.25	8.04	56.30	6/3.20	1/3.20	9.60	194.8
50/30	50.73	29.59	80.32	12/2.32	7/2.32	11.6	371.1
70/10	68.05	11.34	79.39	6/3.80	1/3.80	11.4	274.8
70/40	69.73	40.67	110.40	12/2.72	7/2.72	13.6	510.2
95/15	94.39	15.33	109.73	26/2.15	7/2.15	13.6	380.2
95/20	95.14	18.82	113.96	7/4.16	7/4.16	13.9	408.2
95/55	96.51	56.30	152.81	12/3.20	7/3.20	16.0	706.1
120/7	118.89	6.61	125.50	18/2.90	1/2.90	14.5	378.5
120/20	115.67	18.82	134.49	26/2.38	7/2.38	15.1	466.1
120/25	122.48	24.25	146.73	7/4.72	7/4.72	15.7	525.7
120/70	122.15	71.25	193.40	12/3.60	7/3.60	18.0	893.7
150/8	144.76	8.04	152.80	18/3.20	1/3.20	16.0	460.9
150/20	145.68	18.82	164.50	24/2.78	7/1.85	16.7	548.5
150/25	148.86	24.25	173.11	26/2.70	7/2.15	17.1	600.1
150/35	147.26	34.36	181.62	30/2.50	7/2.50	17.5	675
185/10	183.22	10.18	193.40	18/3.60	1/3.60	18.0	583.3
185/25	187.03	24.25	211.28	24/3.15	7/2.10	18.9	704.9
185/30	181.34	29.59	210.93	26/2.98	7/2.32	18.9	731.4
185/45	184.73	43.10	227.83	30/2.80	7/2.80	19.6	846.7
210/10	204.14	11.34	215.48	18/3.80	1/3.80	19.0	649.9
210/25	209.02	27.10	236.12	24/3.33	7/2.22	20.0	787.8
210/35	211.73	34.36	246.09	26/3.22	7/2.50	20.4	852.5
210/50	209.24	48.82	258.06	30/2.98	7/2.98	20.9	959
240/30	244.29	31.67	275.96	24/3.60	7/2.40	21.6	920.7
240/40	238.84	38.90	277.74	26/3.42	7/2.66	21.7	962.8
240/55	241.27	56.30	297.57	30/3.20	7/3.20	22.4	1105.8
300/15	296.88	15.33	312.21	42/3.00	7/1.67	23.0	938.7
300/20	303.42	20.91	324.32	45/2.93	7/1.95	23.4	1000.8
300/25	306.21	27.10	333.31	48/2.85	7/2.22	23.8	1057
300/40	300.09	38.90	338.99	24/3.99	7/2.66	23.9	1131
300/50	299.54	48.82	348.37	26/3.83	7/2.98	24.3	1207.7
300/70	305.36	71.25	376.61	30/3.60	7/3.60	25.2	1399.6
400/20	406.40	20.91	427.31	42/3.51	7/1.95	26.9	1284.3
400/25	391.91	27.10	419.01	45/3.33	7/2.22	26.6	1293.5
400/35	390.88	34.36	425.24	48/3.22	7/2.50	26.8	1347.5
400/65	398.94	65.06	464.00	26/4.42	7/3.44	28.0	1608.7
400/95	407.75	93.27	501.02	30/4.16	19/2.50	29.1	1856.7
500/45	488.58	43.10	531.68	48/3.60	7/2.80	30.0	1685.5
630/55	639.92	56.30	696.22	48/4.12	7/3.20	34.3	2206.4
800/55	814.30	56.30	870.60	45/4.80	7/3.20	38.4	2687.5
800/70	808.15	71.25	879.40	48/4.63	7/3.60	38.6	2887.6
