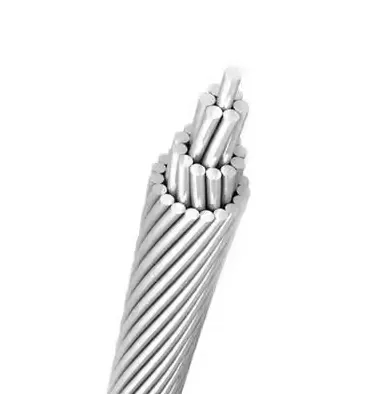

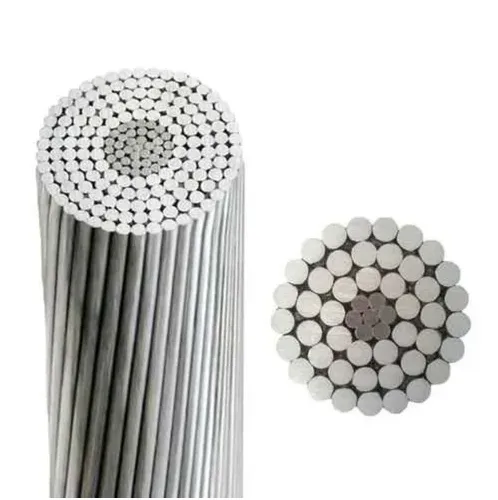

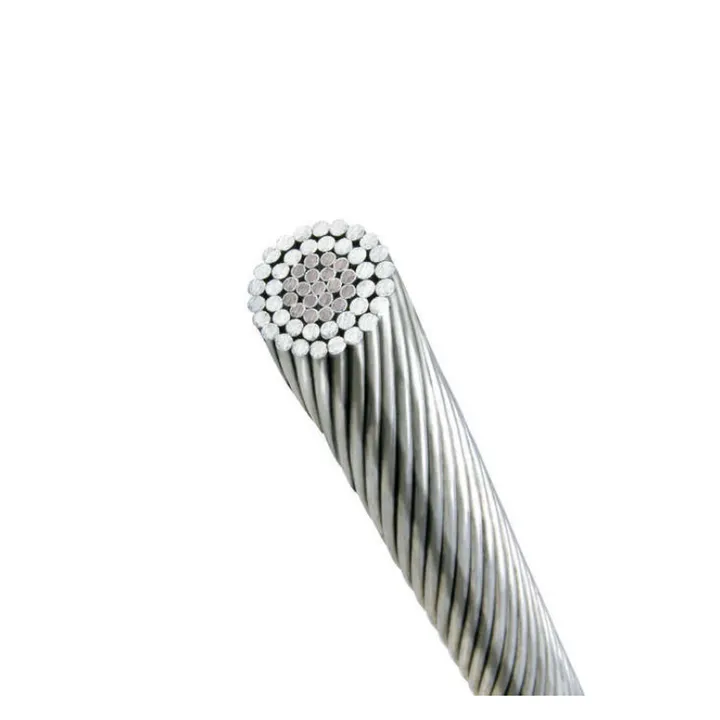

Overhead Cable Aluminum Steel Core Conductor 185mm 240mm ACSR Bare Cable
|
Attribute |
Detail |
|
Product Name |
ACSR |
|
Model Number |
ACSR |
|
Brand Name |
JYXL |
|
Type |
LOW VOLTAGE |
|
Application |
Overhead |
|
Core |
single Core |
|
Conductor |
Aluminum Conductor Steel Reinforced |
|
Conductor Material |
Aluminum Steel |
|
Insulation Material |
NO |
|
Jacket |
NO |
|
Working Temperature |
70°C, 90°C |
|
Rated Voltage |
12 V, 6 KV, 15 kV, 0.6 kV, 20 kV, 3.6 kV, 1 kV, 0.6/1Kv |
|
Rated Current |
16A, 30A |
|
Size |
single core |
|
Certificate |
ISO9001/ISO14001 /CCC |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Single Package Size |
1X1X1 cm |
|
Single Gross Weight |
1.000 KG |
ACSR Conductor Description: ACSR has simple structure, convenient installation and maintenance, low budget cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys . It has good electrical conductivity and sufficient mechanical strength, high tensile strength etc. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.
Suitable for transmission lines of different voltage levels. It can also be laid in rivers, canyons and places with special geographical features. ACSR Conductor Characteristics: 1. Simple structure, easy installation and maintenance, low line cost, large transmission capacity 2. Excellent conductivity 3. The cable has an overall high tensile strength
ACSR Conductor GB/T 1179 Standard
|
Nominal |
Sectional Area |
No. / Nominal Dia. of Wire |
Approx. Overall |
Approx. |
|||
|
Sectional |
Dia. |
Weight |
|||||
|
Area |
Aluminum |
Steel |
Total |
Aluminum |
Steel |
|
|
|
mm2 |
mm2 |
mm2 |
mm2 |
No./mm |
No./mm |
mm |
kg/km |
|
10/2 |
10.60 |
1.77 |
12.37 |
6/1.50 |
1/1.50 |
4.50 |
42.8 |
|
16/3 |
16.13 |
2.69 |
18.82 |
6/1.85 |
1/1.85 |
5.55 |
65.1 |
|
35/6 |
34.86 |
5.81 |
40.67 |
6/2.72 |
1/2.72 |
8.16 |
140.8 |
|
50/8 |
48.25 |
8.04 |
56.30 |
6/3.20 |
1/3.20 |
9.60 |
194.8 |
|
50/30 |
50.73 |
29.59 |
80.32 |
12/2.32 |
7/2.32 |
11.6 |
371.1 |
|
70/10 |
68.05 |
11.34 |
79.39 |
6/3.80 |
1/3.80 |
11.4 |
274.8 |
|
70/40 |
69.73 |
40.67 |
110.40 |
12/2.72 |
7/2.72 |
13.6 |
510.2 |
|
95/15 |
94.39 |
15.33 |
109.73 |
26/2.15 |
7/2.15 |
13.6 |
380.2 |
|
95/20 |
95.14 |
18.82 |
113.96 |
7/4.16 |
7/4.16 |
13.9 |
408.2 |
|
95/55 |
96.51 |
56.30 |
152.81 |
12/3.20 |
7/3.20 |
16.0 |
706.1 |
|
120/7 |
118.89 |
6.61 |
125.50 |
18/2.90 |
1/2.90 |
14.5 |
378.5 |
|
120/20 |
115.67 |
18.82 |
134.49 |
26/2.38 |
7/2.38 |
15.1 |
466.1 |
|
120/25 |
122.48 |
24.25 |
146.73 |
7/4.72 |
7/4.72 |
15.7 |
525.7 |
|
120/70 |
122.15 |
71.25 |
193.40 |
12/3.60 |
7/3.60 |
18.0 |
893.7 |
|
150/8 |
144.76 |
8.04 |
152.80 |
18/3.20 |
1/3.20 |
16.0 |
460.9 |
|
150/20 |
145.68 |
18.82 |
164.50 |
24/2.78 |
7/1.85 |
16.7 |
548.5 |
|
150/25 |
148.86 |
24.25 |
173.11 |
26/2.70 |
7/2.15 |
17.1 |
600.1 |
|
150/35 |
147.26 |
34.36 |
181.62 |
30/2.50 |
7/2.50 |
17.5 |
675 |
|
185/10 |
183.22 |
10.18 |
193.40 |
18/3.60 |
1/3.60 |
18.0 |
583.3 |
|
185/25 |
187.03 |
24.25 |
211.28 |
24/3.15 |
7/2.10 |
18.9 |
704.9 |
|
185/30 |
181.34 |
29.59 |
210.93 |
26/2.98 |
7/2.32 |
18.9 |
731.4 |
|
185/45 |
184.73 |
43.10 |
227.83 |
30/2.80 |
7/2.80 |
19.6 |
846.7 |
|
210/10 |
204.14 |
11.34 |
215.48 |
18/3.80 |
1/3.80 |
19.0 |
649.9 |
|
210/25 |
209.02 |
27.10 |
236.12 |
24/3.33 |
7/2.22 |
20.0 |
787.8 |
|
210/35 |
211.73 |
34.36 |
246.09 |
26/3.22 |
7/2.50 |
20.4 |
852.5 |
|
210/50 |
209.24 |
48.82 |
258.06 |
30/2.98 |
7/2.98 |
20.9 |
959 |
|
240/30 |
244.29 |
31.67 |
275.96 |
24/3.60 |
7/2.40 |
21.6 |
920.7 |
|
240/40 |
238.84 |
38.90 |
277.74 |
26/3.42 |
7/2.66 |
21.7 |
962.8 |
|
240/55 |
241.27 |
56.30 |
297.57 |
30/3.20 |
7/3.20 |
22.4 |
1105.8 |
|
300/15 |
296.88 |
15.33 |
312.21 |
42/3.00 |
7/1.67 |
23.0 |
938.7 |
|
300/20 |
303.42 |
20.91 |
324.32 |
45/2.93 |
7/1.95 |
23.4 |
1000.8 |
|
300/25 |
306.21 |
27.10 |
333.31 |
48/2.85 |
7/2.22 |
23.8 |
1057 |
|
300/40 |
300.09 |
38.90 |
338.99 |
24/3.99 |
7/2.66 |
23.9 |
1131 |
|
300/50 |
299.54 |
48.82 |
348.37 |
26/3.83 |
7/2.98 |
24.3 |
1207.7 |
|
300/70 |
305.36 |
71.25 |
376.61 |
30/3.60 |
7/3.60 |
25.2 |
1399.6 |
|
400/20 |
406.40 |
20.91 |
427.31 |
42/3.51 |
7/1.95 |
26.9 |
1284.3 |
|
400/25 |
391.91 |
27.10 |
419.01 |
45/3.33 |
7/2.22 |
26.6 |
1293.5 |
|
400/35 |
390.88 |
34.36 |
425.24 |
48/3.22 |
7/2.50 |
26.8 |
1347.5 |
|
400/65 |
398.94 |
65.06 |
464.00 |
26/4.42 |
7/3.44 |
28.0 |
1608.7 |
|
400/95 |
407.75 |
93.27 |
501.02 |
30/4.16 |
19/2.50 |
29.1 |
1856.7 |
|
500/45 |
488.58 |
43.10 |
531.68 |
48/3.60 |
7/2.80 |
30.0 |
1685.5 |
|
630/55 |
639.92 |
56.30 |
696.22 |
48/4.12 |
7/3.20 |
34.3 |
2206.4 |
|
800/55 |
814.30 |
56.30 |
870.60 |
45/4.80 |
7/3.20 |
38.4 |
2687.5 |
|
800/70 |
808.15 |
71.25 |
879.40 |
48/4.63 |
7/3.60 |
38.6 |
2887.6 |
