Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.

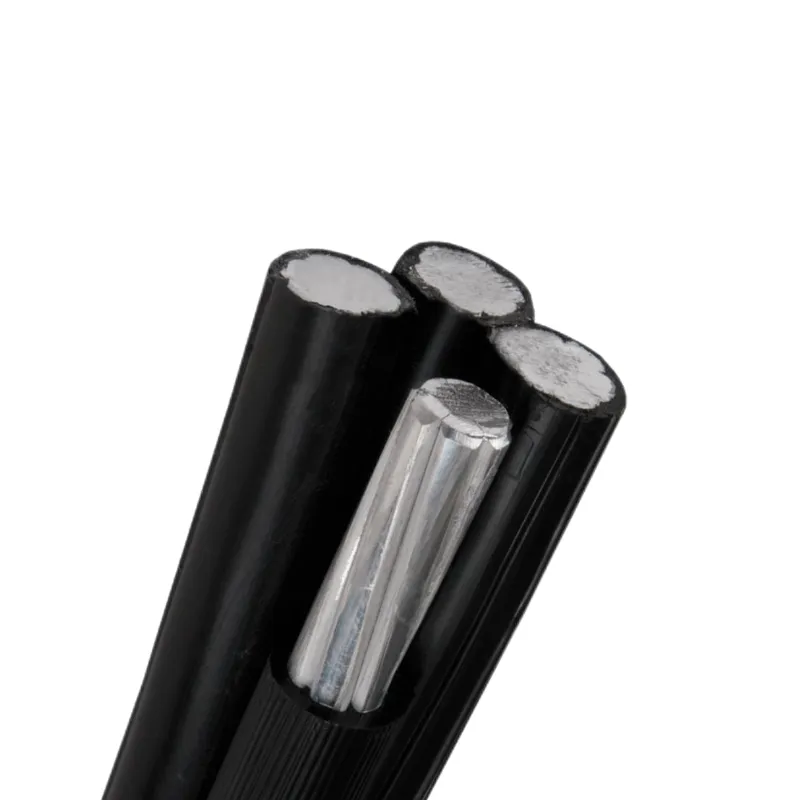

Home / Product / Aerial Bundle Cable / SIP-2 Aluminum XLPE Cable (3x50 + 54.6mm²)
GOST R 52373-2005 Standard SIP 2 Cable 3x50+54.6mm2 Aluminum Self Supporting Wire Core Xlpe Cable Prices LOW Voltage 0.6/1 Kv
|
Attribute |
Detail |
|
Product Name |
Aerial Bundle Power Electrical Cable ABC |
|
Brand Name |
JYXL |
|
Type |
Low Voltage |
|
Conductor Material |
Aluminum |
|
Conductor |
Aluminum |
|
Insulation Material |
XLPE |
|
Insulation |
XLPE |
|
Jacket |
XLPE |
|
Cores |
1, 2, 4 |
|
Voltage |
0.6/1 kV |
|
Cross section |
16-185mm² |
|
Application |
Construction, industrial, power station |
|
Certificate |
UL, TUV, KEMA, BV, PSB, SABS, ABS |
|
Place of Origin |
henan，China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Aerial Bundled Conductor cables can be used to replace bare conductor cables in overhead distribution systems. It is ideal for use in urban areas with congested power distribution and narrow lanes and by-lanes. The flexible system is much easier than conventional overhead power lines to re-route when demanded by changes in urban development plans.
IEC 60502 / BS 7870 /HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards.
Cable Construction
Conductor: Aluminium conductor, round stranded compressed (RM).
Insulation: XPLE compound, UV-resistant.
|
Number of Cores x Nominal Cross Section |
Overal Diameter |
Weight |
Maximum Conductor Resistance |
Minimum Breaking Load |
Current Rating |
|
No.×mm^2 |
mm |
Kg/Km |
Ω/Km |
KN |
A |
|
1x16+1x25 RM |
15.3 |
160 |
1.910 |
2.5 |
72 |
|
3x16+1x25 RM |
19.0 |
290 |
1.200 |
4.0 |
107 |
|
3x25+1x25 RM |
23.2 |
400 |
0.868 |
5.5 |
132 |
|
3x35+1x25 RM |
25.6 |
500 |
0.641 |
8.0 |
165 |
|
3x50+1x35 RM |
30.0 |
680 |
0.443 |
10.7 |
205 |
|
3x70+1x50 RM |
34.9 |
920 |
0.320 |
13.7 |
240 |
|
3x95+1x70 RM |
40.6 |
1270 |
0.253 |
18.6 |
290 |
|
3x120+1x70 RM |
44.1 |
1510 |
0.206 |
23.2 |
334 |
|
3x150+1x95 RM |
49.2 |
1870 |
0.164 |
28.7 |
389 |
|
3x185+1x120 RM |
54.9 |
2340 |
0.125 |
37.2 |
467 |
|
3x25+1x25+1x16 RM |
23.2 |
470 |
1.910 |
2.5 |
72 |
|
3x35+1x25+1x16 RM |
25.6 |
560 |
1.200 |
4.0 |
107 |
|
3x50+1x35+1x16 RM |
30.0 |
740 |
0.868 |
5.5 |
132 |
|
3x70+1x50+1x16 RM |
34.9 |
980 |
0.641 |
8.0 |
165 |
|
3x95+1x70+1x16 RM |
40.6 |
1330 |
0.443 |
10.7 |
205 |
|
3x120+1x70+1x16 RM |
44.1 |
1580 |
0.320 |
13.7 |
240 |
|
3x150+1x95+1x16 RM |
49.2 |
1940 |
0.206 |
23.2 |
334 |
|
3x185+1x120+1x16 RM |
54.9 |
2410 |
1.910 |
2.5 |
72 |
