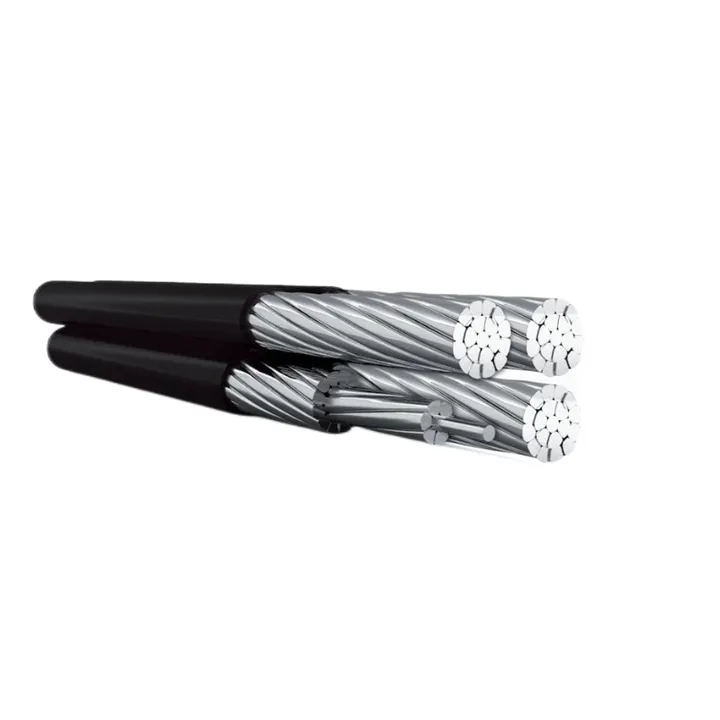

GOST R 52373-2005 SIP-2 Self-Supporting Cable

GOST R 52373-2005 Standard SIP 2 Cable 3x50+54.6mm2 Aluminum Self Supporting Wire Core Xlpe Cable Prices LOW Voltage 0.6/1 Kv

Send Email Get Best Price

Details

Key Attributes

Attribute	Value
Product Name	Aerial Bundle Power Electrical Cable ABC
Type	Low Voltage
Conductor Material	Aluminum
Conductor	Aluminum
Cores	1, 2, 4
Insulation Material	XLPE
Insulation	XLPE
Jacket	XLPE
Application	construction, industrial, power station
Certificate	UL, TUV, KEMA, BV, PSB, SABS, ABS
Brand Name	JYXL
Place of Origin	henan,China

Packaging and Delivery

Attribute	Value
Selling Units	Single item

Product Description

Aerial Bundled Conductor cables can be used to replace bare conductor cables in overhead distribution systems. It is ideal for use in urban areas with congested power distribution and narrow lanes and by-lanes. The flexible system is much easier than conventional overhead power lines to re-route when demanded by changes in urban development plans.

Standard

IEC 60502 / BS 7870 /HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards.

Cable Construction

Conductor: Aluminium conductor, round stranded compressed (RM).
Insulation: XPLE compound, UV-resistant.

Cable Parameters

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.×mm^2	mm	Kg/Km	Ω/Km	KN	A
1x16+1x25 RM	15.3	160	1.910	2.5	72
3x16+1x25 RM	19.0	290	1.200	4.0	107
3x25+1x25 RM	23.2	400	0.868	5.5	132
3x35+1x25 RM	25.6	500	0.641	8.0	165
3x50+1x35 RM	30.0	680	0.443	10.7	205
3x70+1x50 RM	34.9	920	0.320	13.7	240
3x95+1x70 RM	40.6	1270	0.253	18.6	290
3x120+1x70 RM	44.1	1510	0.206	23.2	334
3x150+1x95 RM	49.2	1870	0.164	28.7	389
3x185+1x120 RM	54.9	2340	0.125	37.2	467
3x25+1x25+1x16 RM	23.2	470	1.910	2.5	72
3x35+1x25+1x16 RM	25.6	560	1.200	4.0	107
3x50+1x35+1x16 RM	30.0	740	0.868	5.5	132
3x70+1x50+1x16 RM	34.9	980	0.641	8.0	165
3x95+1x70+1x16 RM	40.6	1330	0.443	10.7	205
3x120+1x70+1x16 RM	44.1	1580	0.320	13.7	240
3x150+1x95+1x16 RM	49.2	1940	0.206	23.2	334
3x185+1x120+1x16 RM	54.9	2410	1.910	2.5	72
