Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.
Home / Product / Aerial Bundle Cable / LV ABC Cable (SIP-5ng/AsXSn, PVC/PE) - Saudi Arabia / UAE

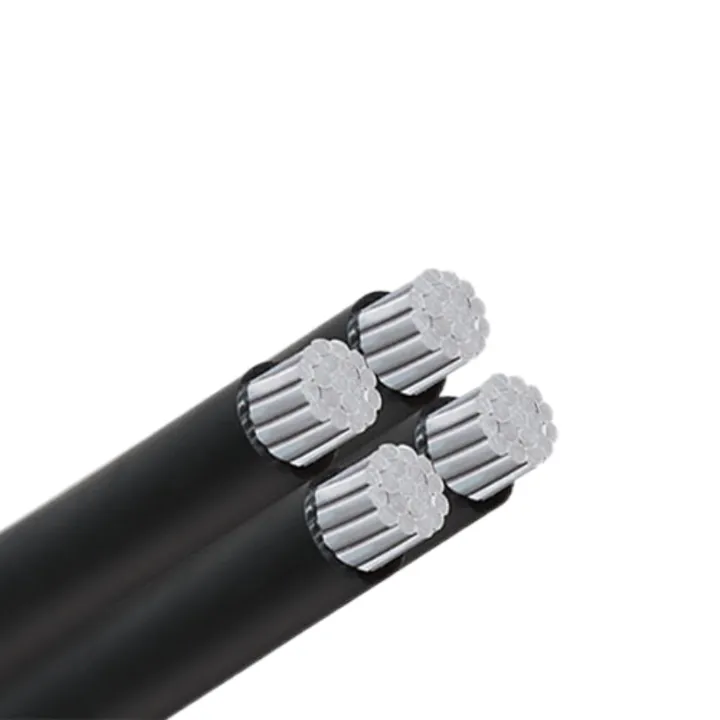

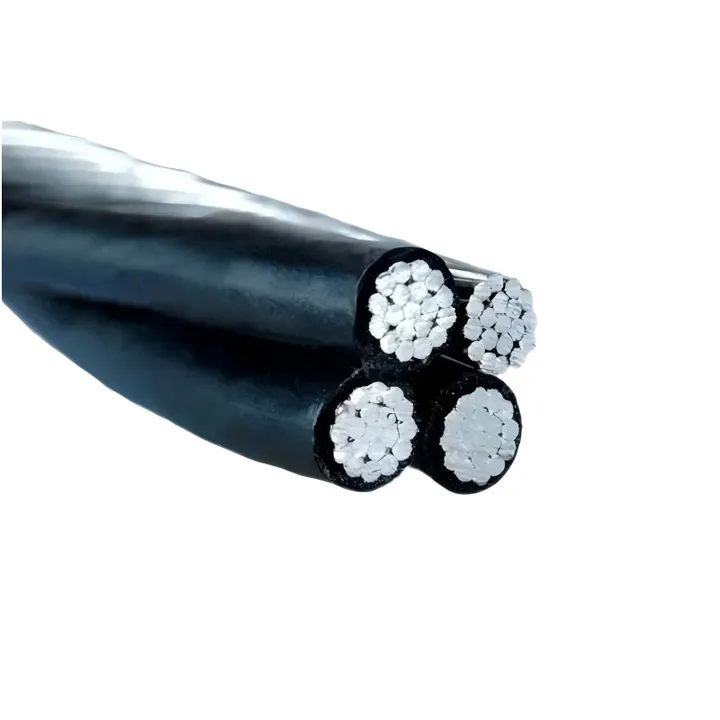

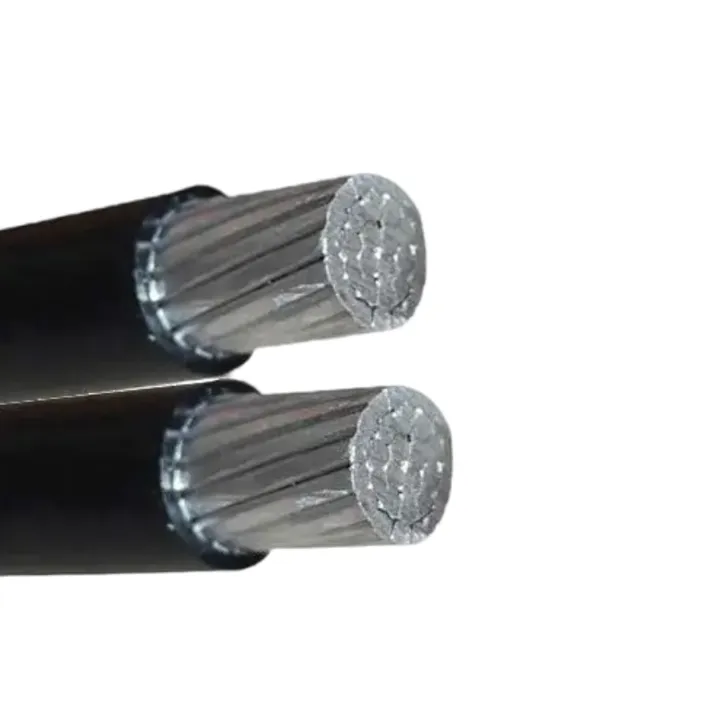

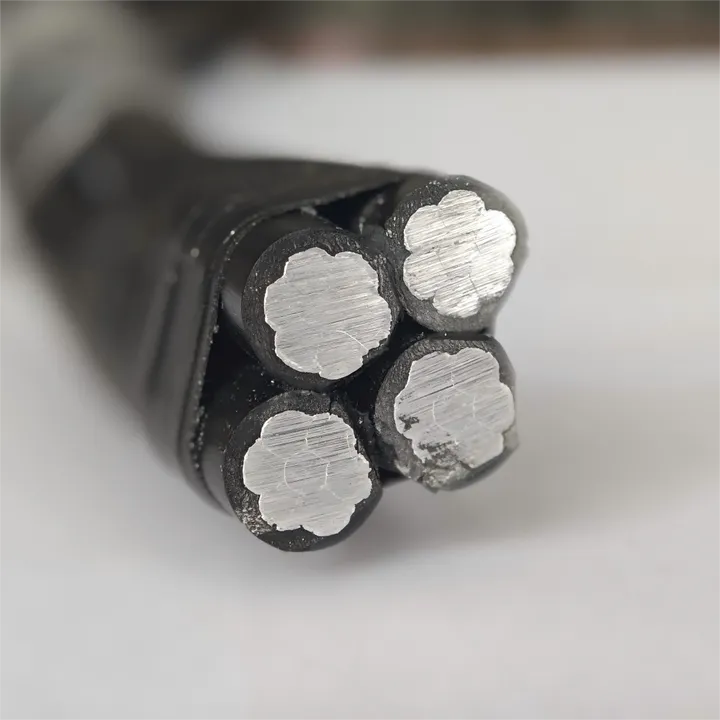

Saudi Arabia UAE Markets Low Voltage Self-supporting Wire SIP-5ng AsXSn ABC Cable PVC/PE Jacket
|
Insulation Material |
xlpe |
|
Application |
Construction |
|
Conductor Material |
Aluminum |
|
Jacket |
/ |
|
Place of Origin |
Henan, China |
|
Working Temperature |
90°C, 70°C |
|
Rated Voltage |
0.6/1kV |
|
Brand Name |
Jianyun |
|
Model Number |
Aerial Bundled Cables to IEC 60502 |
|
Type |
LOW VOLTAGE |
|
Product name |
Low Voltage Self-supporting Wire SIP-5ng AsXSn ABC Cable |
|
Conductor |
aluminium conductor |
|
Color |
Balck |
|
Insulation |
PE |
|
Certificate |
CCC/CE |
|
Rated voltage |
0.6/1KV |
|
MOQ |
1000 |
|
Standard |
IEC 60502 |
|
Package |
Wooden Drum |
|
Usage |
Power Transmission Lines |
SIP-5ng (AsXSn) – self-supporting insulated wire with an aluminum conductive core, insulated from a flame retardant polymer composition, thermoplastic, light-stabilized cross-linked polyethylene. The insulating material is highly resistant to sunlight, (ultraviolet) and ozone.
Construction:
Twisting: insulated conductive conductors are twisted with a twisting pitch of not more than 45 cm. The twisting has a right direction.
Core material: round aluminum, multi-wire sealed. The wire is made with a cross section of 16-120 mm2. In this case, if the nominal cross-section does not exceed 25 mm2, a right-sided twisting is used, for large sizes – a left-sided one.
Placeholder: none
Screen: none
Armor: none
Core: steel wire
Insulation: light-stabilized cross-linked polyethylene, non-combustible silane-crosslinkable composition based on a copolymer of polyethylene with vinyl acetate.
PRODUCT DETAIL
|
Wire nomenclature |
Nominal conductor diameter, mm |
Outer wire diameter, mm |
Estimated weight of 1 km of wire, kg |
Minimum breaking strength of load-bearing conductors, kN, not less |
Nominal insulation thickness, mm |
|
Wire SIP-5ng 2×16 |
4,8 |
16,8 |
138,1 |
5 |
1,2 |
|
Wire SIP-5ng 4×16 |
4,8 |
20,2 |
276,2 |
9,8 |
1,2 |
|
Wire SIP-5ng 4×25 |
6 |
23,4 |
400,5 |
15,4 |
1,2 |
|
Wire SIP-5ng 4×35 |
7 |
26,1 |
521,2 |
21,5 |
1,2 |
|
Wire SIP-5ng 4×50 |
8,4 |
30,9 |
730,8 |
30,7 |
1,4 |
|
Wire SIP-5ng 4×70 |
9,8 |
34,6 |
983,1 |
43 |
1,6 |
|
Wire SIP-5ng 4×95 |
11,6 |
39,9 |
1304,6 |
58,4 |
1,7 |
|
Wire SIP-5ng 4×120 |
13 |
43,6 |
1624,4 |
73,7 |
1,7 |
