Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.
Home / Product / Aerial Bundle Cable / XLPE Insulated Aerial Bundle Cable (ABC)

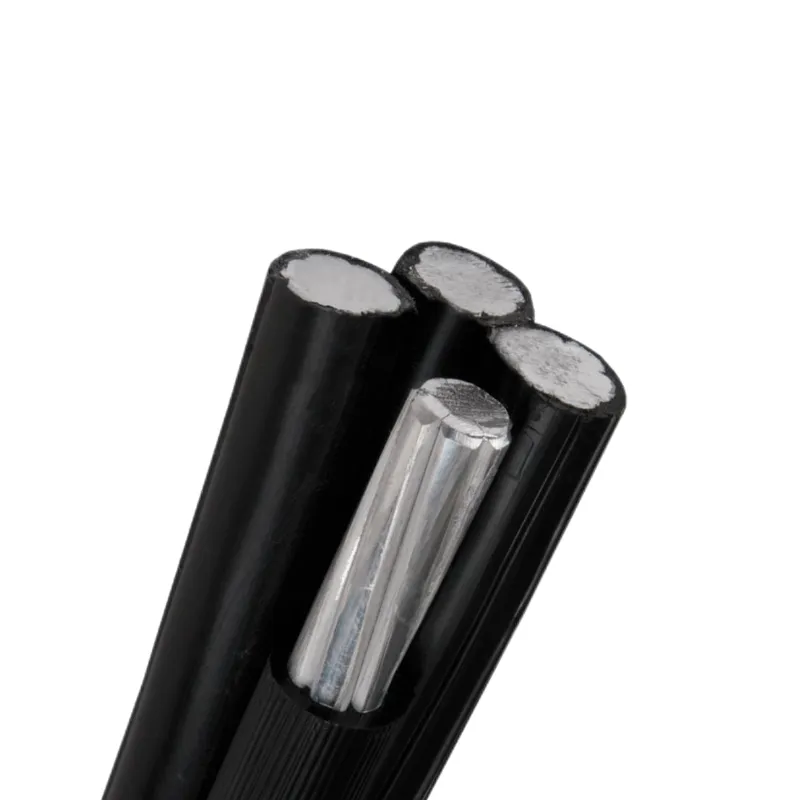

Factory XLPE Insulated Overhead Twisted Aluminum Aerial Abc Cable Al Aerial Bundle Cable for Construction
|
Industry-Specific Attributes |
|
|
Insulation Material |
XLPE |
|
Application |
Construction |
|
Conductor Material |
Aluminum |
|
Jacket |
/ |
|
Other Attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
Jianyun |
|
Model Number |
Aerial Bundled Cables to IEC 60502 |
|
Type |
LOW VOLTAGE |
|
Product Name |
Aerial Bundled Cables to IEC 60502 |
|
Conductor |
Aluminum conductor |
|
Color |
Black |
|
Insulation |
PE |
|
Certificate |
CCC |
|
Rated Voltage |
0.6/1KV |
|
MOQ |
1000 |
|
Standard |
IEC 60502 |
|
Package |
Wooden Drum |
|
Usage |
Power Transmission Lines |
|
Packaging and Delivery |
|
|
Selling Units |
Single item |
Construction
Phase Conductor:aluminium conductor, round stranded compressed.
Neutral Conductor:Alloy aluminium conductor , round stranded compressed (RM).
Insulation：PE
IEC 60502
Application
The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.
|
Number of cores x nominal cross section |
min. breaking load of conductor strand |
Current rating in the air |
Outer diameter |
Total weight |
|
mm2 |
kN |
A |
mm |
kg/km |
|
1x16+1x 25 RM |
6.4 |
61 |
15.3 |
160 |
|
3x16+1x 25 RM |
6.4 |
61 |
19 |
290 |
|
3x25+1x 25 RM |
6.4 |
84 |
23.2 |
400 |
|
3x35+1x 25 RM |
6.4 |
104 |
25.6 |
500 |
|
3x50+1x 35 RM |
8.9 |
129 |
30 |
680 |
|
3x70+1x 50 RM |
12.1 |
167 |
34.9 |
920 |
|
3x95+1x 70 RM |
18 |
209 |
40.6 |
1270 |
|
3x120+1x 70 RM |
18 |
246 |
44.1 |
1510 |
|
3x150+1x 95 RM |
24.2 |
283 |
49.2 |
1870 |
|
3x185+1x120 RM |
30.8 |
332 |
54.9 |
2340 |
|
3x25+1x25+1x16 RM |
6.4 |
84 |
23.2 |
470 |
|
3x35+1x25+1x16 RM |
6.4 |
104 |
25.6 |
560 |
|
3x50+1x35+1x16 RM |
8.9 |
129 |
30 |
740 |
|
3x70+1x50+1x16 RM |
12.1 |
167 |
34.9 |
980 |
|
3x95+1x70+1x16 RM |
18 |
209 |
40.6 |
1330 |
|
3x120+1x70+1x16 RM |
18 |
246 |
44.1 |
1580 |
|
3x150+1x95+1x16 RM |
24.2 |
283 |
49.2 |
1940 |
|
3x185+1x120+1x16 RM |
30.8 |
332 |
54.9 |
2410 |
