Aluminum XLPE ABC Service Drop Cable (1-4 Core) IEC 60502

IEC 60502 Factory Products 1-4 Cores Aluminum Conductor XLPE Insulated Aerial Bundled ABC Service Drop Cable Southeast Markets

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes

Insulation Material	xlpe
Application	Construction
Conductor Material	Aluminum
Jacket	/

Other attributes

Place of Origin	Henan, China
Rated Voltage	500 V
Rated Current	20A
Brand Name	JYXL
Model Number	Aerial Bundled Cables to BS 7870-5
Type	LOW VOLTAGE
Size	BASED
Product name	Aerial Bundled Cables to BS 7870-5
Conductor	Aluminum
Color	Black
Insulation	xlpe
Certificate	CCC/CE
Rated voltage	0.6/1KV
MOQ	1000
Standard	BS 7870-5
Package	Wooden Drum
Usage	Power Transmission Cables

PRODUCT SHOW

IEC 60502 China Manufacturer 1 2 3 4 Cores Aluminum Conductor XLPE Insulated Overhead Aerial Bundled ABC Service Drop Cable

Construction

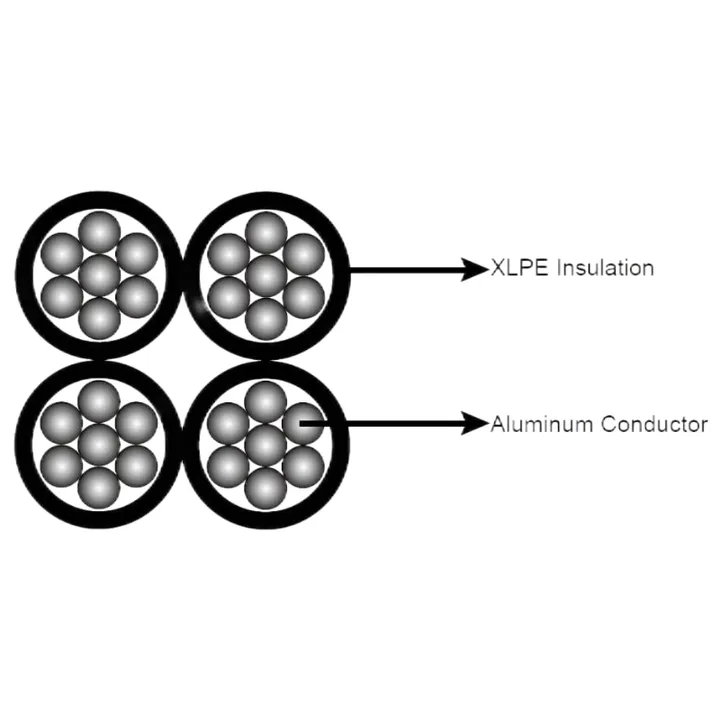

Conductor: Aluminum

Insulation:XLPE

Standard

BS 7870-5:1999

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl.

PRODUCT DETAIL

number of cores x nominal cross section	max. conductor- resistance	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm2	Ohm/km	kN	A	mm	kg/km
1x 16 RM	1,910	2,5	72	80	74
1x 25 RM	1,200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1,910	2,5	72	156	147
2x 25 RM	1,200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
4x 16 RM	1,910	2,5	72	188	286
4x 25 RM	1,200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	319	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	319	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	360	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	400	1217
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	418	1438
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	420	1544
4x120 + 1x 25 RM	0,253/1,200	18,6/4,0	290/107	590	2050
