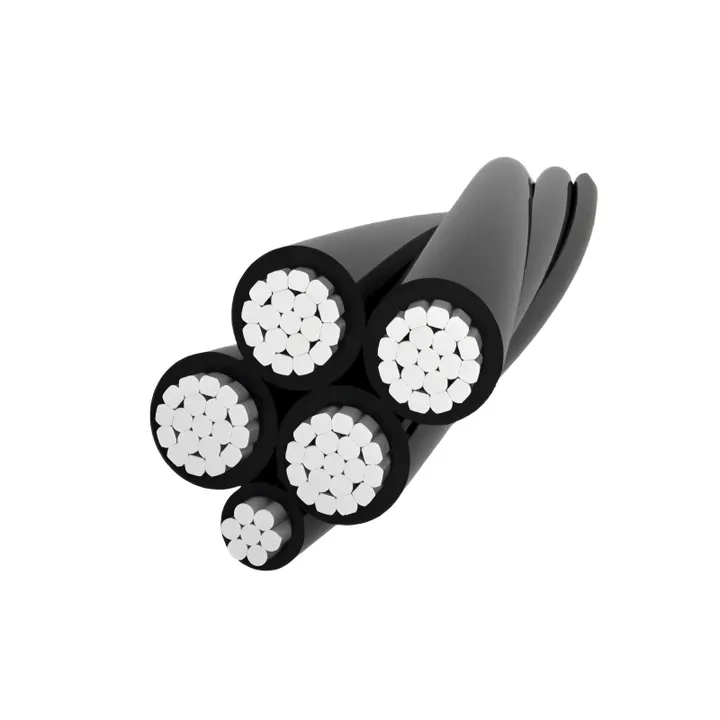

1 & 3 Core ABC Cable (35mm, 50mm, 120mm)

Aerial Bundled Cable 1 3 Core 35mm 50mm 120mm ABC Cable

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	ABC Cable Wire
Model Number	ABC cable
Brand Name	JYXL
Type	LOW VOLTAGE
Application	Overhead
Core	Duplex Triplex Quadruple
Conductor Material	Aluminum
Conductor	Concentric stranded or compressed 1350-H19 aluminum conductor
Insulation Material	XLPE
Insulation	crosslinked polyethylene insulation
Jacket	no
Size	10/16/25/35/50/70/95/120MM2 and 6awg 4awg 2awg 1/0awg 2/0awg 4/0awg
Voltage rating	600 Volts
Temperature Rating	90°C
Standard	ANSI/ICEA S-76-474
Code name	Scallop, Prawn, Shrimp, Leda, Lepas, Minex, Hippa
Certificate	UL, CE, KEMA, PSB, TUV
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

Product Description

Applications
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Construction

Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Data sheet of service drop cable

Code	Phase Conductor			Bare Neutral Messenger			Weight Per		Rating(Amps)
Name	Phase Conductor			Bare Neutral Messenger			1000 ft(lbs)		Rating(Amps)
	Size	Strand	Insulation	Size	*Strand	Breaking	XLP	POLY	XLP	POLY
	AWG		thickness	AWG		strength
			(mls)			(lbs)
AAC
Pekingese	6	solid	45	6	7/w	563	63.5	61.7	70	70
Collie	6	7/w	45	6	7/w	563	66.8	63.1	70	70
Dachshund	4	solid	45	4	7/w	881	95.5	93.4	90	90
Spaniel	4	7/w	45	4	7/w	881	101	95.4	90	90
Doberman	2	7/w	45	2	7/w	1,350	153	145.7	120	120
Malemute	1/0	19/w	60	1/0	7/w	1,990	243	234.2	160	160
ACSR NEUTRAL-MESSENGER
Setter	6	solid	45	6	'6/1	1.19	75	73.2	70	70
Shepherd	6	7/w	45	6	'6/2	1.19	78.3	74.6	70	70
Eskimo	4	solid	45	4	'6/3	1.86	114	111.6	90	90
Terrier	4	7/w	45	4	'6/4	1.86	119	113.6	90	90
Chow	2	7/w	45	2	'6/5	2.85	182	174.7	120	120
Bull	1/0	19/w	60	1/0	'6/6	4.38	289	280.3	160	160
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua	6	solid	45	6	7/w	1,110	67.6	65.8	70	70
Vizsla	6	7/w	45	6	7/w	1,110	70.9	67.2	70	70
Harrier	4	solid	45	4	7/w	1,760	102	99.9	90	90
Whippet	4	7/w	45	4	7/w	1,760	107	101.9	90	90
Schnauzer	2	7/w	45	2	7/w	2,800	163	156.2	120	120
Heeler	1/0	19/w	60	1/0	7/w	4,460	259
