Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.
Home / Product / Aerial Bundle Cable / Overhead Insulated ABC Cable (3x150+70mm²)

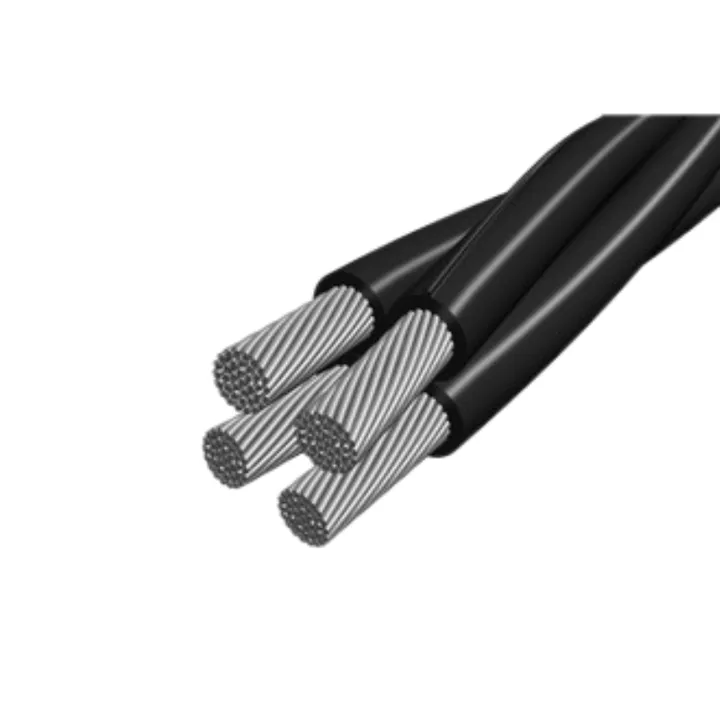

Overhead Insulated Cable Manufacturer 3*150+70 3x150+70mm2 3x150+1x70 ABC Overhead Cable
|
Attribute |
Detail |
|
Product Name |
Copper Core PVC Insulation Wire |
|
Model Number |
BVR |
|
Brand Name |
JianYun |
|
Type |
Insulated |
|
Keyword |
House Wiring Cables |
|
Application |
Householding / Equipment |
|
Usage |
Building Wire, Home Appliances |
|
Place of Origin |
Henan, China |
|
Conductor Material |
Copper |
|
Conductor Type |
Stranded |
|
Insulation Material |
PVC |
|
Jacket |
PVC |
|
Rated Voltage |
450/750V |
|
Size |
1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm² |
|
Colors |
Red, Yellow, Green, Blue, Brown, Black |
|
Temperature Range |
0-70°C |
|
Standard |
GB/T5023-1997 |
|
MOQ |
100 meters |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
Phase Conductor:Aluminium conductor, round stranded compressed (RM).
Neutral Conductor:Alloy aluminium conductor , round stranded compressed (RM).
Insulation：XLPE
Standard
NFC 33-209
Application
The aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl.
|
Rated voltage |
kV |
0.6/1 |
|
Test voltage |
Veff kV/Hz |
4/50 |
|
Laying temperature |
°C |
min. -5 |
|
Operating temperature |
°C |
-30 ~ +90 |
|
Conductor temperature |
°C |
max. +90 |
|
Short-circuit temperature |
°C/s |
max. +250 /5 |
|
Bending radius (min.) |
mm |
20 × Ø of cable |
