IEC 60502 ABC Cable (0.6/1kV)

Factory Supply Overhead Transmission Cable 0.6/1kV IEC 60502 ABC Aerial Bundled Cables for Construction

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	Aerial Bundled Cables to IEC 60502
Type	LOW VOLTAGE
Model Number	Aerial Bundled Cables to IEC 60502
Brand Name	Jianyun
Place of Origin	Henan, China
Application	Construction
Usage	Power Transmission Lines
Conductor Material	aluminium conductor
Insulation Material	XLPE
Insulation	PE
Jacket	/
Rated Voltage	0.6/1KV
Color	Balck
Standard	IEC 60502
Certificate	CCC
MOQ	1000
Package	Wooden Drum

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

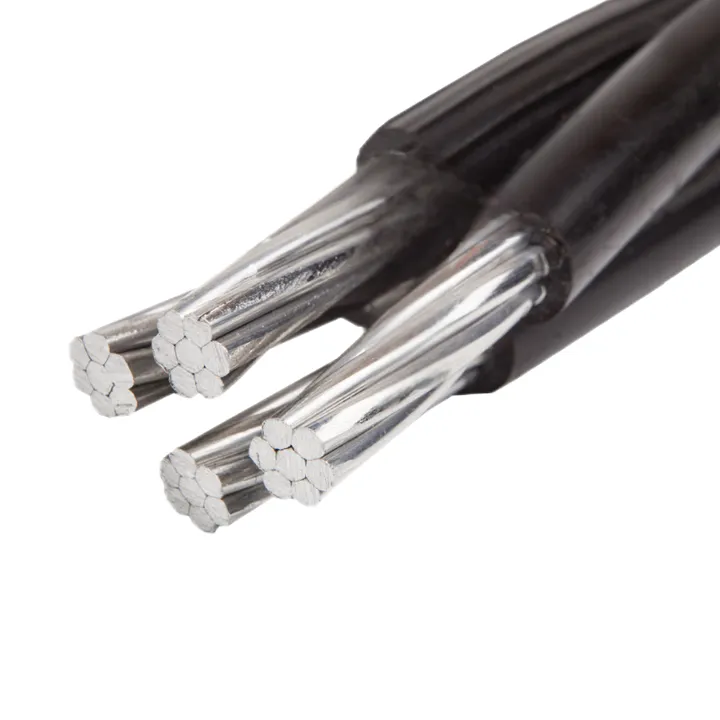

PRODUCT SHOW

0.6/1kV ABC –Aerial Bundled Cables to IEC 60502(AL/PE)

Construction

Phase Conductor:aluminium conductor, round stranded compressed.

Neutral Conductor:Alloy aluminium conductor , round stranded compressed (RM).

Insulation：PE

Standard

IEC 60502

Application
The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.

PRODUCT DETAIL

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm2	kN	A	mm	kg/km
1x16+1x 25 RM	6.4	61	15.3	160
3x16+1x 25 RM	6.4	61	19	290
3x25+1x 25 RM	6.4	84	23.2	400
3x35+1x 25 RM	6.4	104	25.6	500
3x50+1x 35 RM	8.9	129	30	680
3x70+1x 50 RM	12.1	167	34.9	920
3x95+1x 70 RM	18	209	40.6	1270
3x120+1x 70 RM	18	246	44.1	1510
3x150+1x 95 RM	24.2	283	49.2	1870
3x185+1x120 RM	30.8	332	54.9	2340
3x25+1x25+1x16 RM	6.4	84	23.2	470
3x35+1x25+1x16 RM	6.4	104	25.6	560
3x50+1x35+1x16 RM	8.9	129	30	740
3x70+1x50+1x16 RM	12.1	167	34.9	980
3x95+1x70+1x16 RM	18	209	40.6	1330
3x120+1x70+1x16 RM	18	246	44.1	1580
3x150+1x95+1x16 RM	24.2	283	49.2	1940
3x185+1x120+1x16 RM	30.8	332	54.9	2410
