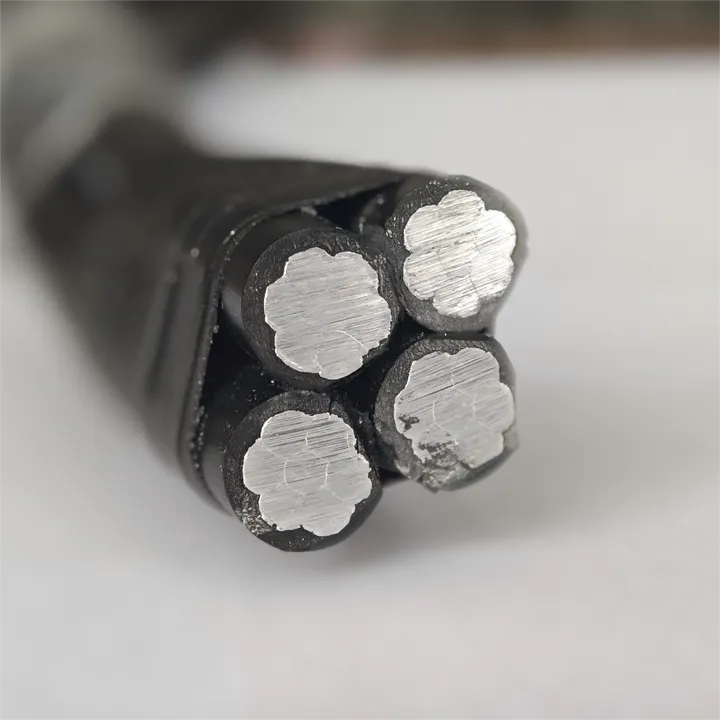

AAC/AAAC XLPE RNEDA ABC Cable (Yemen)

AAC/XLPE AAAC/XLPE Cable Overhead Aerial Bundle Cable 16MM 50MM 54.6MM 100MM for YEMEN MARKET Aluminum Wire ABC Cable Xlpe RNEDA

Send Email Get Best Price

Details

Key Attributes

Attribute	Value
Product Name	ABC Cable Wire
Model Number	ABC cable
Type	Low Voltage
Application	Overhead
Voltage Rating	600 Volts
Conductor Material	Aluminum
Conductor	Concentric stranded or compressed 1350-H19 aluminum conductor
Insulation Material	XLPE (Cross-Linked Polyethylene)
Insulation	Crosslinked polyethylene insulation
Core	Duplex, Triplex, Quadruple
Size	6awg, 4awg, 2awg, 1/0awg, 2/0awg, 4/0awg
Jacket	No
Code Name	Scallop, Prawn, Shrimp, Leda, Lepas, Minex, Hippa
Standard	ANSI/ICEA S-76-474
Brand Name	JYXL
Place of Origin	Henan, China
Certificate	UL, CE, KEMA, PSB, TUV

Packaging and Delivery

Attribute	Value
Selling Units	Single item

Product Description

Applications
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

Construction

Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Data sheet of service drop cable

Code	Phase Conductor				Bare Neutral Messenger				Weight Per			Rating(Amps)
Name									1000 ft(lbs)
	Size	Strand	Insulation	Size		*Strand	Breaking	XLP		POLY	XLP		POLY
	AWG		thickness	AWG			strength
			(mls)				(lbs)
AAC
Pekingese	6	solid	45	6		7/w	563	63.5		61.7	70		70
Collie	6	7/w	45	6		7/w	563	66.8		63.1	70		70
Dachshund	4	solid	45	4		7/w	881	95.5		93.4	90		90
Spaniel	4	7/w	45	4		7/w	881	101		95.4	90		90
Doberman	2	7/w	45	2		7/w	1,350	153		145.7	120		120
Malemute	1/0	19/w	60	1/0		7/w	1,990	243		234.2	160		160
ACSR NEUTRAL-MESSENGER
Setter	6	solid	45	6		'6/1	1.19	75		73.2	70		70
Shepherd	6	7/w	45	6		'6/2	1.19	78.3		74.6	70		70
Eskimo	4	solid	45	4		'6/3	1.86	114		111.6	90		90
Terrier	4	7/w	45	4		'6/4	1.86	119		113.6	90		90
Chow	2	7/w	45	2		'6/5	2.85	182		174.7	120		120
Bull	1/0	19/w	60	1/0		'6/6	4.38	289		280.3	160		160
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua	6	solid	45	6		7/w	1,110	67.6		65.8	70		70
Vizsla	6	7/w	45	6		7/w	1,110	70.9		67.2	70		70
Harrier	4	solid	45	4		7/w	1,760	102		99.9	90		90
Whippet	4	7/w	45	4		7/w	1,760	107		101.9	90		90
Schnauzer	2	7/w	45	2		7/w	2,800	163		156.2	120		120
Heeler	1/0	19/w	60	1/0		7/w	4,460	259
