1. Overview of IEC 60502-2

IEC 60502-2, titled "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Uₘ = 1.2 kV) up to 30 kV (Uₘ = 36 kV) – Part 2: Cables for rated voltages from 6 kV (Uₘ = 7.2 kV) up to 30 kV (Uₘ = 36 kV)," is a globally recognized standard for MV power cables with extruded insulation, such as XLPE or EPR. It specifies requirements for cable design, materials, testing, and performance to ensure safe and reliable power transmission in applications like industrial plants, renewable energy systems, and utility grids. Compliance with IEC 60502-2 is critical for manufacturers like Henan Province Jianyun Cable Co., Ltd., which offers TUV- and CCC-certified MV cables meeting these standards.

2. Scope and Applicability

IEC 60502-2 applies to MV power cables with the following characteristics:

• Voltage Range: Rated voltages from 6/10 kV (U₀/U) to 18/30 kV, where U₀ is the voltage to ground and U is the voltage between phases (Uₘ = 1.2 × U).
• Insulation Types: Extruded insulation, primarily XLPE (cross-linked polyethylene) or EPR (ethylene propylene rubber).
• Conductor Types: Copper or aluminum, solid or stranded (Class 1 or 2 per IEC 60228).
• Applications: Fixed installations in industrial, commercial, utility, and infrastructure settings, including underground, overhead, or ducted systems.
• Exclusions: Cables for special applications (e.g., submarine, mining-specific) or those with impregnated paper insulation.

The standard ensures cables are suitable for continuous operation under specified conditions, including thermal, electrical, and mechanical stresses.

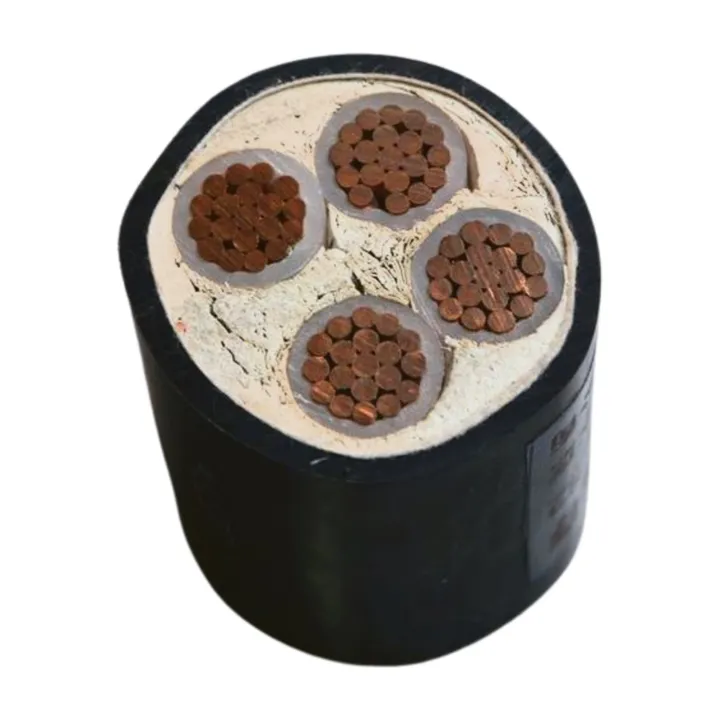

3. Cable Construction Requirements

IEC 60502-2 specifies detailed requirements for MV cable construction to ensure durability and safety:

• Conductor:
  • Material: Copper (≥99.9% purity) or aluminum.
  • Class 1 (solid) or Class 2 (stranded) per IEC 60228; cross-sections typically 25–400 mm².
  • Maximum resistance: e.g., <0.017 Ω/km for 50 mm² copper, <0.028 Ω/km for aluminum.
• Conductor Screen:
  • Semi-conductive layer to reduce electric field stress and prevent partial discharge.
• Insulation:
  • Materials: XLPE (90°C max) or EPR.
  • Thickness: 2.5–8 mm, depending on voltage (e.g., 3.4 mm for 6/10 kV, 8 mm for 18/30 kV).
  • Dielectric strength: ≥20 kV/mm; partial discharge <10 pC.
• Insulation Screen:
  • Semi-conductive layer to ensure uniform electric field distribution.
• Metallic Shield:
  • Copper tape or wire to manage electric fields, provide grounding, and protect against faults.
• Armoring:
  • Optional steel wire armor (SWA) or steel tape for mechanical protection in underground or high-impact environments.
• Outer Sheath:
  • Materials: PVC, PE, or LSZH for environmental resistance.
  • Flame-retardant per IEC 60332-3; LSZH options comply with IEC 60754-1/IEC 61034.

Example: Jianyun Cable’s 12/20 kV XLPE-insulated, SWA-armored cable features a copper conductor, semi-conductive screens, copper tape shield, and LSZH sheath, fully compliant with IEC 60502-2.

4. Testing and Performance Standards

IEC 60502-2 mandates rigorous testing to ensure MV cables meet performance and safety requirements:

• Routine Tests:
  • Partial Discharge Test: <10 pC at 1.73 × U₀ to ensure insulation integrity.
  • Voltage Test: 3.5 × U₀ for 5 minutes (e.g., 21 kV for 6/10 kV cables).
  • Conductor Resistance Test: Verify compliance with IEC 60228 (e.g., <0.017 Ω/km for 50 mm² copper).
• Type Tests:
  • Bending Test: Minimum bending radius (e.g., 6–10D) to confirm flexibility.
  • Thermal Aging Test: Insulation and sheath stability at max temperature (e.g., 90°C for XLPE).
  • Flame Propagation Test: Compliance with IEC 60332-3 for flame-retardant properties.
  • Short-Circuit Test: Verify shield and conductor performance under fault conditions.
• Sample Tests:
  • Insulation Thickness: Measure compliance with specified values (e.g., 3.4 mm for 6/10 kV).
  • Sheath Integrity: Check for defects and environmental resistance.

5. Applications of IEC 60502-2 Compliant Cables

IEC 60502-2 compliant MV cables are used in various applications requiring reliable power transmission:

• Industrial Facilities: Powering heavy machinery in manufacturing plants (e.g., 6/10 kV XLPE-insulated cables).
• Utility Grids: Connecting substations to distribution networks (e.g., 12/20 kV cables).
• Renewable Energy: Linking solar farms or wind turbines to the grid (e.g., 18/30 kV cables).
• Infrastructure: Supporting airports, data centers, or industrial parks (e.g., 8.7/15 kV LSZH-sheathed cables).
• Example: Jianyun Cable’s 12/20 kV XLPE-insulated, SWA-armored cable for industrial power distribution.

6. Compliance and Certification

Ensuring compliance with IEC 60502-2 is critical for safety and performance:

• Certifications: Cables must carry certifications like TUV, CCC, or UL, verifiable through official databases (e.g., TUV Certipedia).
• Manufacturer Compliance: Suppliers like Jianyun Cable provide batch-specific test reports (e.g., insulation resistance >1000 MΩ/km) and factory audits (e.g., SGS).
• Regional Standards: Align with local requirements (e.g., G-Mark for GCC markets) alongside IEC 60502-2.
• Documentation: Manufacturers must provide test certificates and compliance declarations for routine, type, and sample tests.

Example: Jianyun Cable’s IEC 60502-2 compliant 18/30 kV XLPE-insulated cables are TUV-certified, ensuring global applicability.

7. Challenges and Solutions

8. Conclusion

IEC 60502-2 is a critical standard ensuring the safety, reliability, and performance of medium voltage power cables (6–30 kV) used in industrial, utility, and infrastructure applications. It specifies requirements for construction, materials, and testing, covering conductors, XLPE/EPR insulation, shielding, and armoring. Compliance ensures cables withstand electrical, thermal, and mechanical stresses. Henan Province Jianyun Cable Co., Ltd. offers TUV- and CCC-certified IEC 60502-2 compliant cables, suitable for applications like manufacturing, renewable energy, and infrastructure. By adhering to IEC 60502-2 and partnering with trusted suppliers, users can achieve safe, efficient, and durable power distribution systems lasting 20–30 years.
